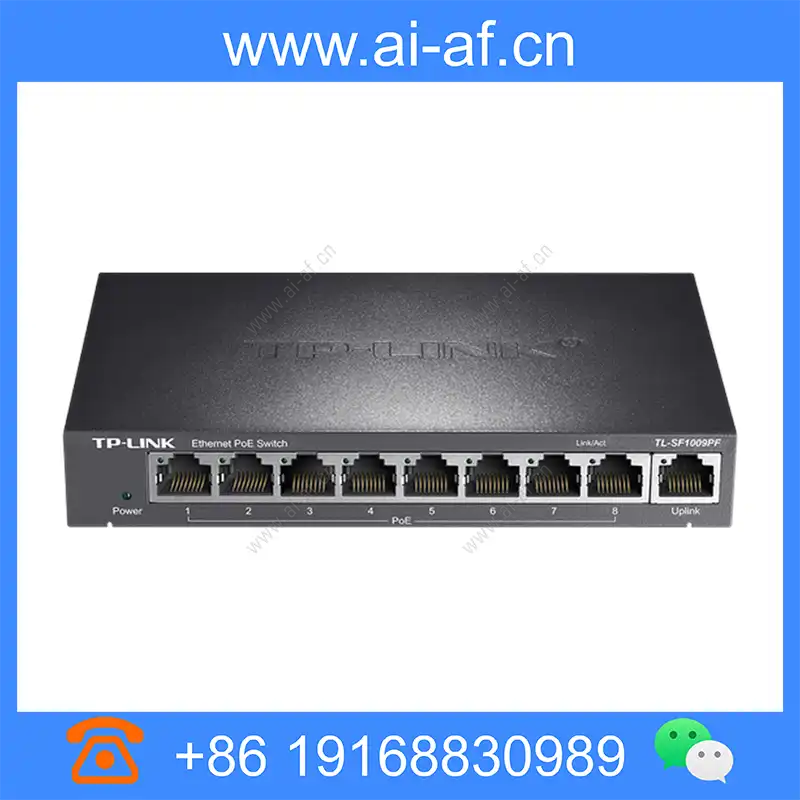

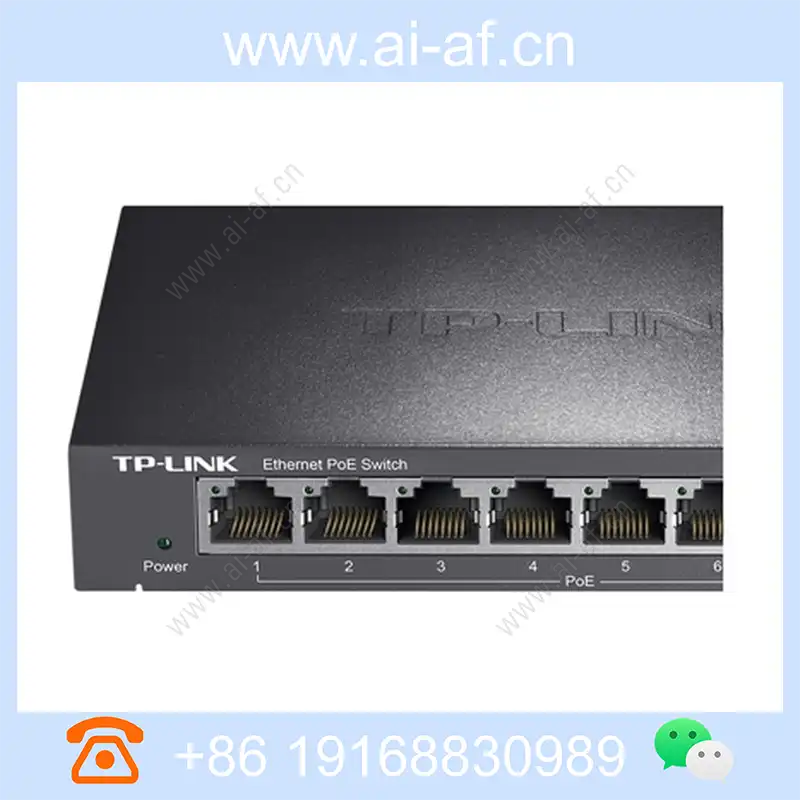

TP-LINK TL-SF1009PF 9-port 100M unmanaged PoE switch 1FE 8PoE 57W iron shell

Brand: TP-LINK

Model: TL-SF1009PF

Dimensions: 158mm x 100mm x 25mm

Eight 10/100 Base-T RJ45 ports support PoE power supply 1 10/100 Base-T RJ45 uplink port The entire PoE power supply reaches 57W, and the single-port PoE power supply reaches 15.4W Support IEEE 802.3af PoE power supply standard PoE port supports extended mode, can transmit data and power over long distance (200 ~ 300m) Product model TL-SF1009PE TL-SF1009PH TL-SF1009PT TL-SF1009P TL-SF1009PF 100M RJ45 port 9 9 9 9 9 PoE port 8FE 8FE 8FE 8FE 8FE Maximum PoE output power of the whole machine 125W 80W 125W 62W 57W Machine power consumption 136W 90W 135W 70W 69W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af IEEE 802.3af Maximum PoE output power of the port 30W 15.4W Mode switch no Standard Exchange 1~4 extension (10Mbps) 1~8 extension (10Mbps) MAC address capacity 2K Shell size (mm) 250×158×44

Product Features

Eight 10/100 Base-T RJ45 ports support PoE power supply
1 10/100 Base-T RJ45 uplink port
The entire PoE power supply reaches 57W, and the single-port PoE power supply reaches 15.4W
Support IEEE 802.3af PoE power supply standard
PoE port supports extended mode, can transmit data and power over long distance (200 ~ 300m)

Product model	TL-SF1009PE	TL-SF1009PH	TL-SF1009PT	TL-SF1009P	TL-SF1009PF
100M RJ45 port	9	9	9	9	9
PoE port	8FE	8FE	8FE	8FE	8FE
Maximum PoE output power of the whole machine	125W	80W	125W	62W	57W
Machine power consumption	136W	90W	135W	70W	69W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af				IEEE 802.3af
Maximum PoE output power of the port	30W				15.4W
Mode switch	no				Standard Exchange 1~4 extension (10Mbps) 1~8 extension (10Mbps)
MAC address capacity	2K
Shell size (mm)	250×158×44	226×131×35	158×100×25
Input power	220VAC , 50Hz		53.5VDC/2.4A	53.5VDC/1.22A	53.5VDC/1.13A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
100M RJ45 port	9
PoE port	8FE
Maximum PoE output power of the whole machine	57W
Machine power consumption	69W
PoE standard	IEEE 802.3af
Maximum PoE output power of the port	15.4W
Mode switch	Standard exchange: 1~4 extension (10Mbps); 1~8 extension (10Mbps)
MAC address capacity	2K
Shell size (mm)	158mm x 100mm x 25mm
Input power	53.5VDC/1.13A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
