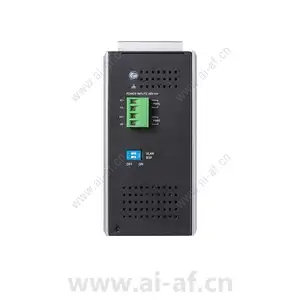

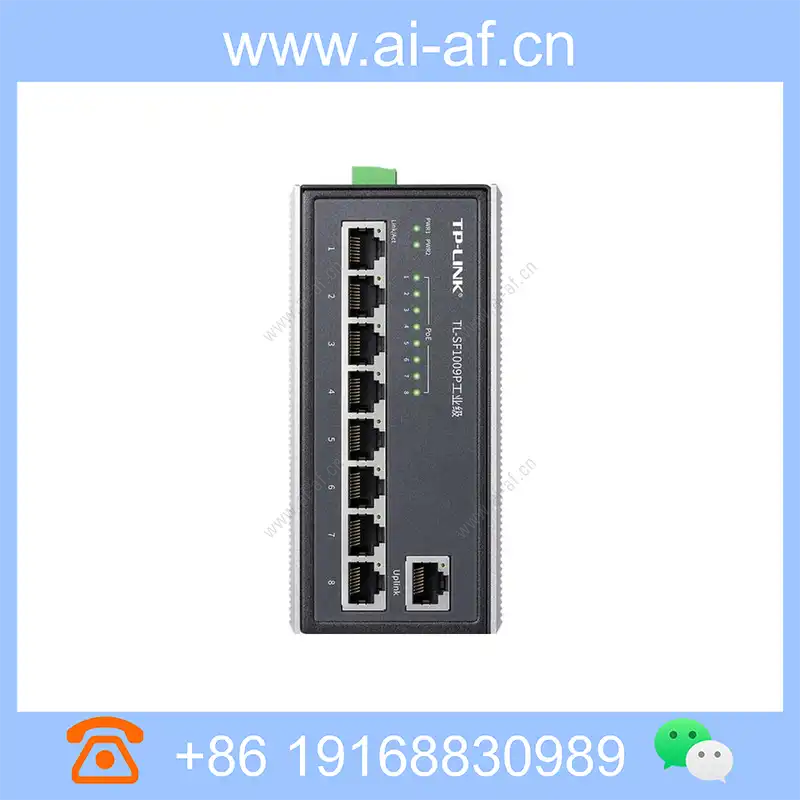

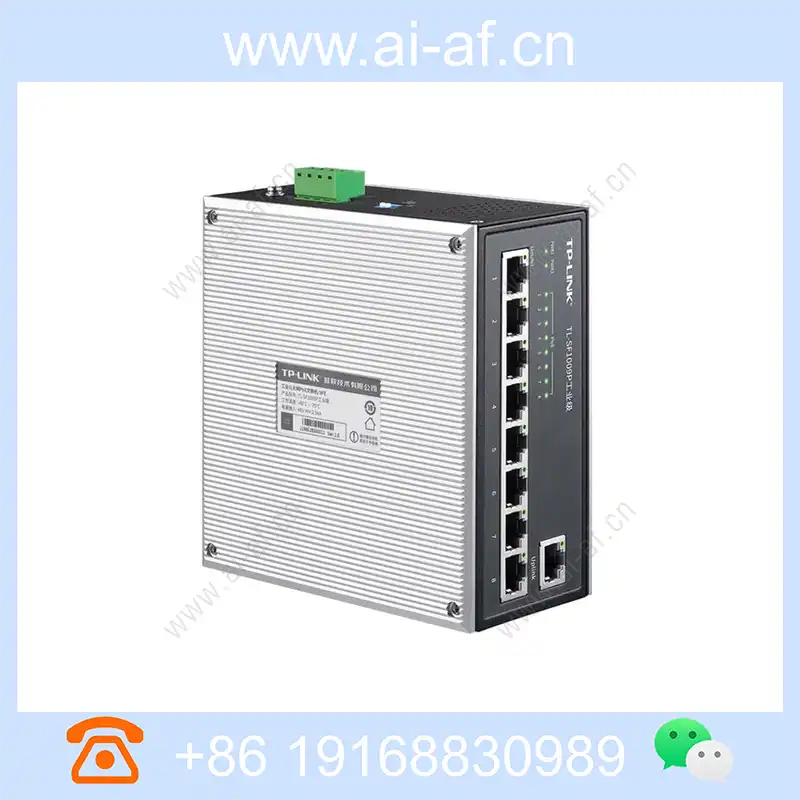

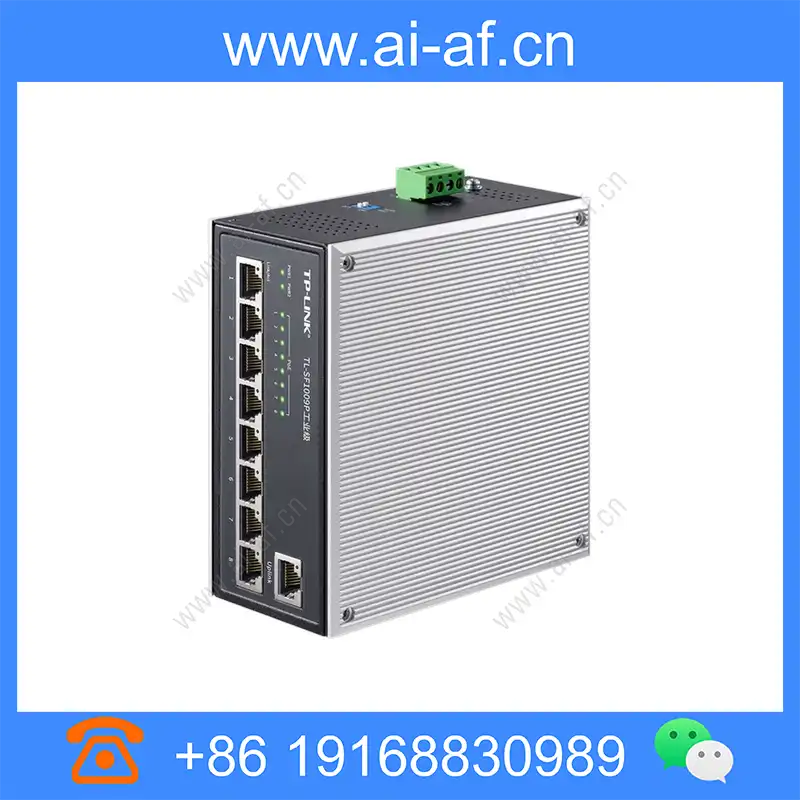

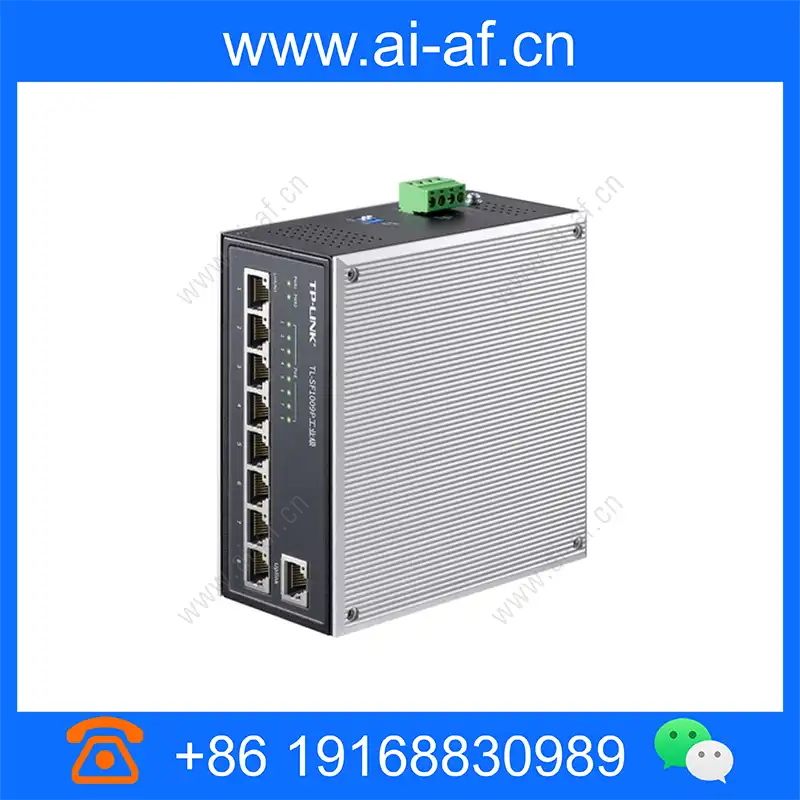

TP-LINK TL-SF1009P industrial grade 9-port 100M unmanaged PoE switch 1FE 8PoE 120W

Brand: TP-LINK
Model: TL-SF1009P-INDUSTRIAL
Dimensions: 137mm x 128mm x 65.40mm

Eight 10/100 Base-T RJ45 ports support PoE power supply 1 10/100 Base-T RJ45 uplink port The PoE power supply of the whole machine is increased to 62W, and the single-port PoE power supply reaches 30W Support IEEE 802.3af/at PoE power supply standard PoE power port supports priority mechanism Housing supports wall mounting holes Product model TL-SF1009PE TL-SF1009PH TL-SF1009PT TL-SF1009P TL-SF1009PF 100M RJ45 port 9 9 9 9 9 PoE port 8FE 8FE 8FE 8FE 8FE Maximum PoE output power of the whole machine 125W 80W 125W 62W 57W Machine power consumption 136W 90W 135W 70W 69W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af IEEE 802.3af Maximum PoE output power of the port 30W 15.4W Mode switch no Standard Exchange 1~4 extension (10Mbps) 1~8 extension (10Mbps) MAC address capacity 2K Shell size (mm)

Product Features

  • Eight 10/100 Base-T RJ45 ports support PoE power supply
  • 1 10/100 Base-T RJ45 uplink port
  • The PoE power supply of the whole machine is increased to 62W, and the single-port PoE power supply reaches 30W
  • Support IEEE 802.3af/at PoE power supply standard
  • PoE power port supports priority mechanism
  • Housing supports wall mounting holes
Product model TL-SF1009PE TL-SF1009PH TL-SF1009PT TL-SF1009P TL-SF1009PF
100M RJ45 port 9 9 9 9 9
PoE port 8FE 8FE 8FE 8FE 8FE
Maximum PoE output power of the whole machine 125W 80W 125W 62W 57W
Machine power consumption 136W 90W 135W 70W 69W
PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af IEEE 802.3af
Maximum PoE output power of the port 30W 15.4W
Mode switch no Standard Exchange
1~4 extension (10Mbps)
1~8 extension (10Mbps)
MAC address capacity 2K
Shell size (mm) 250×158×44 226×131×35 158×100×25
Input power 220VAC , 50Hz 53.5VDC/2.4A 53.5VDC/1.22A 53.5VDC/1.13A
Use environment
  • Work temperature: 0°C ~ 40°C
  • Storage temperature: -40℃~70℃
  • Working humidity: 10% ~ 90% RH without condensation
  • Storage humidity: 5% to 90% RH without condensation

    • Technical Specifications

    Property DescriptionProperty Value
    100M RJ45 port9
    PoE port8FE
    Maximum PoE output power of the whole machine62W
    Machine power consumption70W
    PoE standardIEEE 802.3at(PoE+)、IEEE 802.3af
    Maximum PoE output power of the port30W
    Mode switchno
    MAC address capacity2K
    Shell size (mm)158mm x 100mm x 25mm
    Input power53.5VDC/1.22A
    Use environmentOperating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing

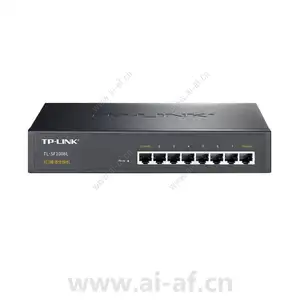

    TP-LINK TL-SF1008L 8-port 100M Corridor switch Iron Shell Layer 2 supports port isolation

    TP-LINK TL-SF1008L 8-port 100M Corridor switch Iron Shell Layer 2 supports port isolation

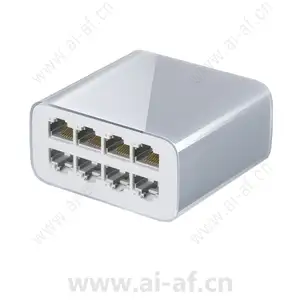

    TP-LINK TL-SF1008M 8-port 100M unmanaged switch plastic shell layer 2

    TP-LINK TL-SF1008M 8-port 100M unmanaged switch plastic shell layer 2

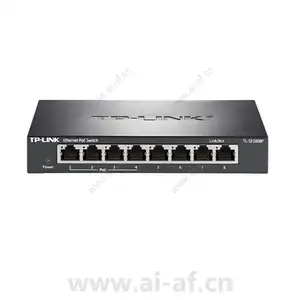

    TP-LINK TL-SF1008P 8-port 100M unmanaged PoE switch 4FE 4PoE 57W iron shell

    TP-LINK TL-SF1008P 8-port 100M unmanaged PoE switch 4FE 4PoE 57W iron shell

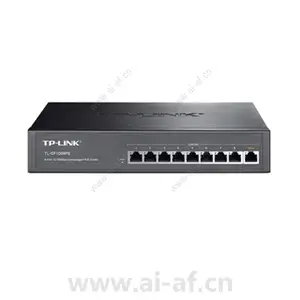

    TP-LINK TL-SF1009PE 9-port 100M unmanaged PoE switch 1FE 8PoE 125W iron shell

    TP-LINK TL-SF1009PE 9-port 100M unmanaged PoE switch 1FE 8PoE 125W iron shell

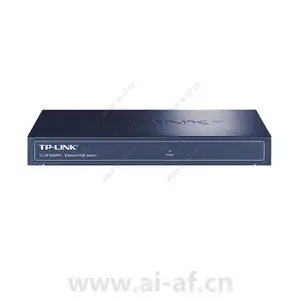

    TP-LINK TL-SF1009PH 9-port 100M unmanaged PoE switch 1FE 8PoE 80W iron shell

    TP-LINK TL-SF1009PH 9-port 100M unmanaged PoE switch 1FE 8PoE 80W iron shell

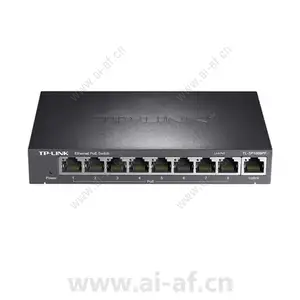

    TP-LINK TL-SF1009PF 9-port 100M unmanaged PoE switch 1FE 8PoE 57W iron shell

    TP-LINK TL-SF1009PF 9-port 100M unmanaged PoE switch 1FE 8PoE 57W iron shell

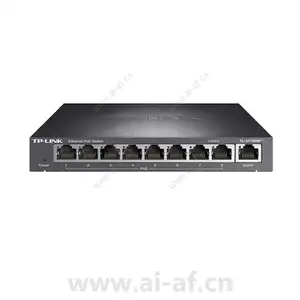

    TP-LINK TL-SF1009P 9-port 100M unmanaged PoE switch 1FE 8PoE 57W iron shell
