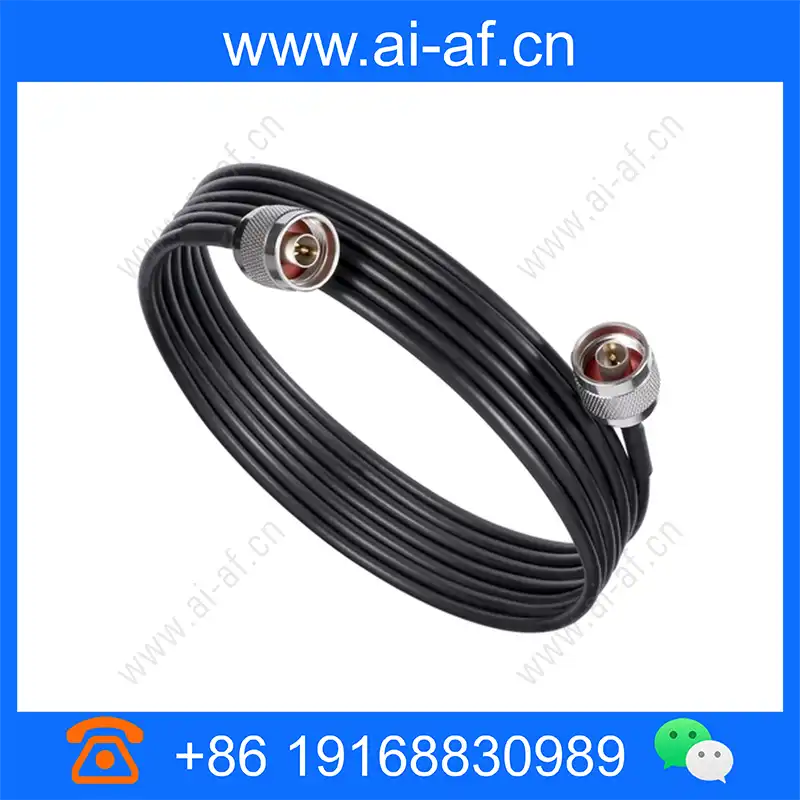

TP-LINK TL-RFC141-2NM-3 AP antenna cable dual N-type male coaxial cable 3 meters long
Used with TP-LINK outdoor wireless AP and antenna products, it can be used for outdoor multi-scene signal transmission Two-way N-type male plug, plug and play Low signal attenuation, adapt to wide temperature operation, meet the transmission requirements of outdoor indoor environment TL-RFC141-2NM-3 is a radio frequency cable with a length of 3 meters. It has two N-type male plugs and supports work in various frequency bands. It can be used with TP-LINK outdoor wireless AP and antenna products to meet the requirements of low attenuation signal transmission. Outer diameter 4.30mm Implementation standards MIL-C-17F/133 capacitance 95.1pF/m Maximum working voltage 1900VMS Working frequency 8000MHz Operating temperature -40°C~+80°C Decay constant 500MHz:0.29dB/m 1000MHz:0.45dB/m
Product Features
TL-RFC141-2NM-3 is a radio frequency cable with a length of 3 meters. It has two N-type male plugs and supports work in various frequency bands. It can be used with TP-LINK outdoor wireless AP and antenna products to meet the requirements of low attenuation signal transmission. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Outer diameter | 4.30mm |
| Implementation standards | MIL-C-17F/133 |
| capacitance | 95.1pF/m |
| Maximum working voltage | 1900VMS |
| Working frequency | 8000MHz |
| Operating temperature | -40°C~+80°C |
| Decay constant | 500MHz:0.29dB/m 1000MHz:0.45dB/m 2000MHz:0.52dB/m 5000MHz:0.96dB/m |
