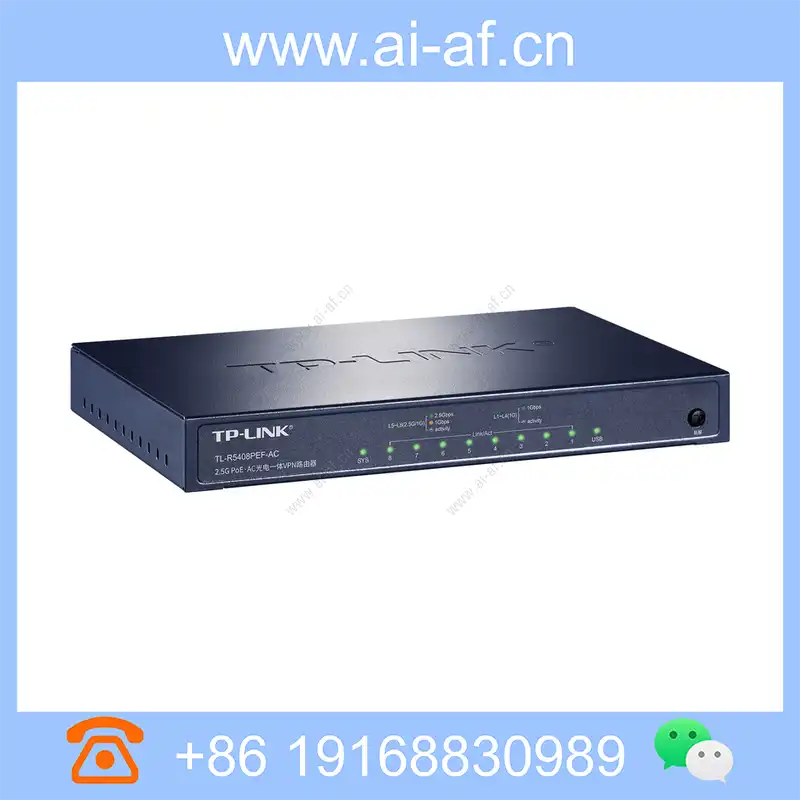

TP-LINK TL-R5408PEF-AC 2.5G PoE·AC optoelectronic integrated VPN router

Brand: TP-LINK

Model: TL-R5408PEF-AC

Dimensions: 126mm x 209mm x 26mm

Dual-core CPU, 512MB DDRIII high-speed memory, strong performance Supports 1 2.5G RJ45 electrical port plus 3 2.5G optical fiber expansion ports, supports use with 2.5G/1G optical modules and electrical modules Built-in wireless controller for unified management of TP-LINK AP products 3 10/100/1000M RJ45 electrical ports support standard PoE power supply IPSec/PPTP/L2TP VPN, remote communication is more secure Access authentication (Web authentication, SMS authentication, PPPoE server) Internet behavior management (mobile APP control/desktop application control/website filtering/webpage security) Support Easy Exhibition Network, can be used with easy-to-exhibition series, wireless routing, AP, home routing convenient network Support TP-LINK commercial network cloud platform/APP

Product Features

Dual-core CPU, 512MB DDRIII high-speed memory, strong performance
Supports 1 2.5G RJ45 electrical port plus 3 2.5G optical fiber expansion ports, supports use with 2.5G/1G optical modules and electrical modules
Built-in wireless controller for unified management of TP-LINK AP products
3 10/100/1000M RJ45 electrical ports support standard PoE power supply
IPSec/PPTP/L2TP VPN, remote communication is more secure
Access authentication (Web authentication, SMS authentication, PPPoE server)
Internet behavior management (mobile APP control/desktop application control/website filtering/webpage security)
Support Easy Exhibition Network, can be used with easy-to-exhibition series, wireless routing, AP, home routing convenient network
Support TP-LINK commercial network cloud platform/APP centralized management

Technical Specifications

Property Description	Property Value
port	1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN/LAN ports (support PoE external power supply) 1 2.5G RJ45 LAN ports 3 2.5G SFP LAN ports
Indicator light	Each 2.5G port: 2.5G/1G Link/Act Each RJ45 port: Link/Act Each device: SYS, USB li>
PoE performance	Compliant with IEEE 802.3af, IEEE 802.3at standards Maximum output of single port 30W Maximum output of whole machine 65W
Input power	53.5VDC/1.6A
Cooling method	Natural heat dissipation
Use environment	operating temperature: 0°C ~ 40°C, Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C, storage humidity: 5% ~ 90 % RH does not condense
Typical belt load	300 sets
Dimensions	209(w)x126(D)x26(H) mm
bandwidth	Maximum bandwidth: 4Gbps; Recommended bandwidth: 2Gbps
Network protocol	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
Operating status	Interface Information Traffic Statistics Hardware Resource Utilization
Interface settings	wan setting LAN setting
AP management	AP settings, can manage 100 TP-LINK AP products in a unified way plug and play, wireless network settings list in wireless host status
Behavior control	Application Control, One-Code Management Social Software / Video Software / Music Software / Shopping Leisure Software / News Software / P2P Software / Financial Software / Network Game / App Store / Fundamental Applications / li> qq black and white list Website packet filtering filter page file type Intelligent biDirectional bandwidth control access control List (ACL) behavioral audit
Safety management	ARP protection (IP + MAC Binding, GARP) MAC address filtering attack protection (DOS attack protection, suspicious package attack protection)
VPN	IPSec VPN PPTP/L2TP VPN, support server and client mode
Certification Management	web authentication, local authentication, RADIUS certification, one-click Internet access, meet a variety of certification requirements SMS authentication, meet real-name authentication requirements, and can conduct secondary marketing based on mobile phone number < / li> Free certification policy
Advanced Features	PPPoE authentication server routing setting (policy routing, static routing, system routing) NAT setting (NAPT, one-to-one NAT, ALG, virtual server, NAT DMZ DDNS (Peanut Shell, Komai, 3322) UPnp IP traffic statistics port monitoring
System Tools	Chinese Web Support, Remote Management Configuration Backup and Import Configuration Software Upgrade, Automatic Clearing Diagnostic Tool (Ping Detection, Tracert Detection) system time setting system log
