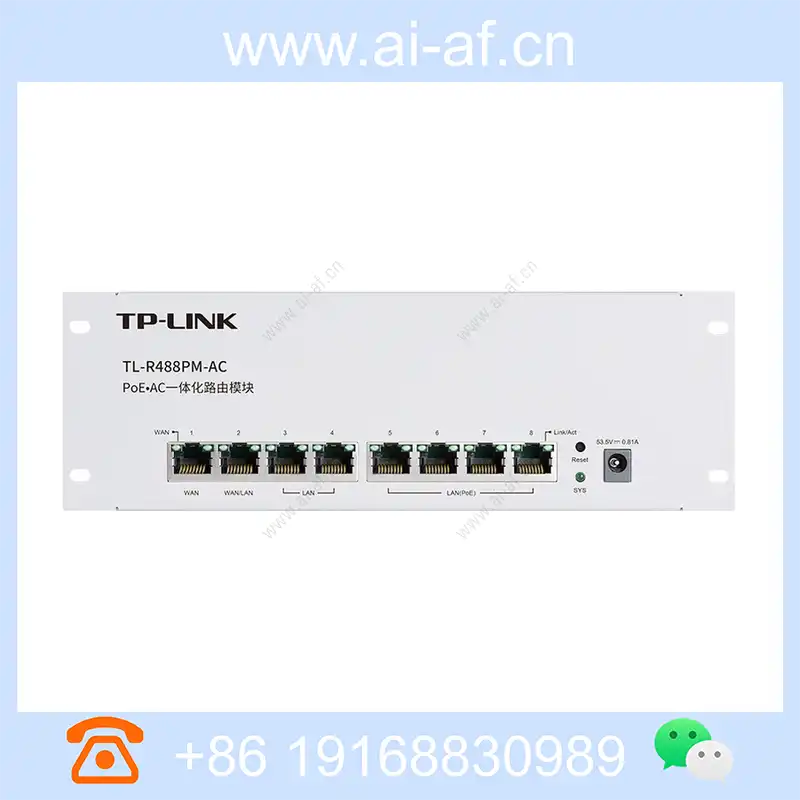

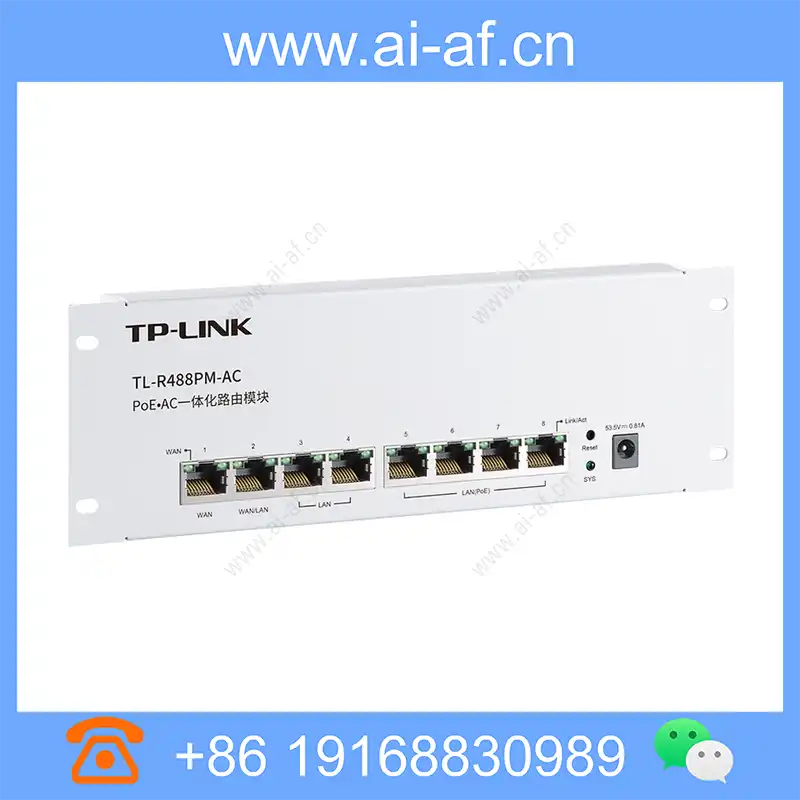

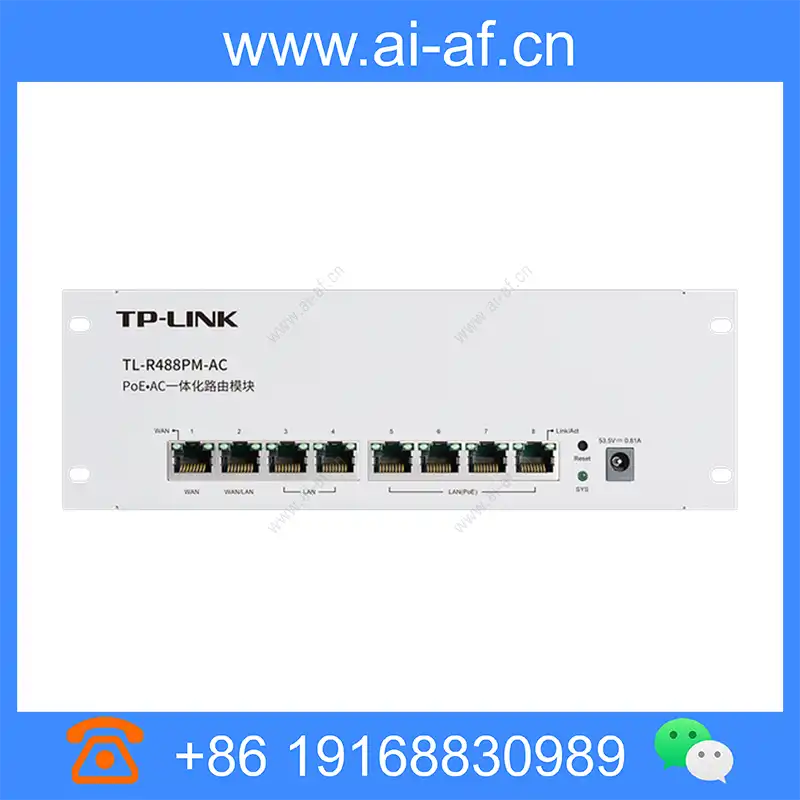

TP-LINK TL-R488PM-AC PoE·AC 100M routing module 8 ports with machine capacity 30 manage 10 APs
Provide 1 10/100M WAN port, 1 10/100M WAN/LAN port, 6 10/100M LAN ports Designed for weak current box/information box, the size is 225mm*74mm*24mm Four of the LAN ports support standard PoE power supply, comply with the IEEE802.3af/at standard, and the maximum output power of a single port is 30W Built-in AC function, can manage 10 TP-LINK APs in a unified way Support dual WAN port function, users can flexibly configure the number of WAN ports according to actual needs Support APP management, easily manage and configure home network devices through TP-LINK mobile APP Protocol standard IEEE802.3 IEEE802.3u port 1 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN/LAN port, support auto flip (Auto MDI/MDIX) 6 10/100M adaptive LAN/LAN Mouth, support automatic
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.3 IEEE802.3u |
| port | 1 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN/LAN port, support auto flip (Auto MDI/MDIX) 6 10/100M adaptive LAN/LAN Mouth, support automatic flip (Auto MDI/MDIX) |
| Indicator light | Per port: Link/Act, WAN/LAN Per device: SYS |
| PoE performance | Compliant with IEEE 802.3af and IEEE 802.3at standards Maximum output of single port 30W Maximum output of whole machine 40W |
| Power Specifications | Power adapter, input 220V AC, 50Hz, output 53.5VDC / 0.81A |
| Cooling method | Natural cooling |
| Dimensions | 225mm*74mm*24mm |
| Common settings | Connected device management Internet settings Dual WAN port settings |
| advanced settings | Network parameters Wireless settings (AP), can manage up to 10 TP-LINK AP Internet control Advanced users Device management Setup wizard APP management |
| Packaging accessories | PoE·AC Integrated Routing Module TL-R488PM-AC Power Adapter Manual |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
