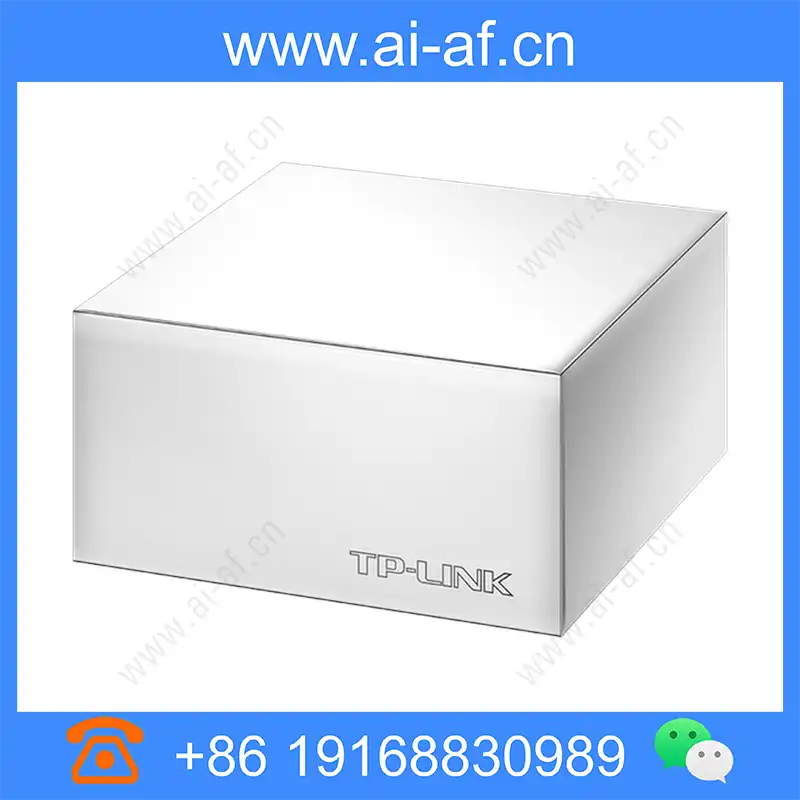

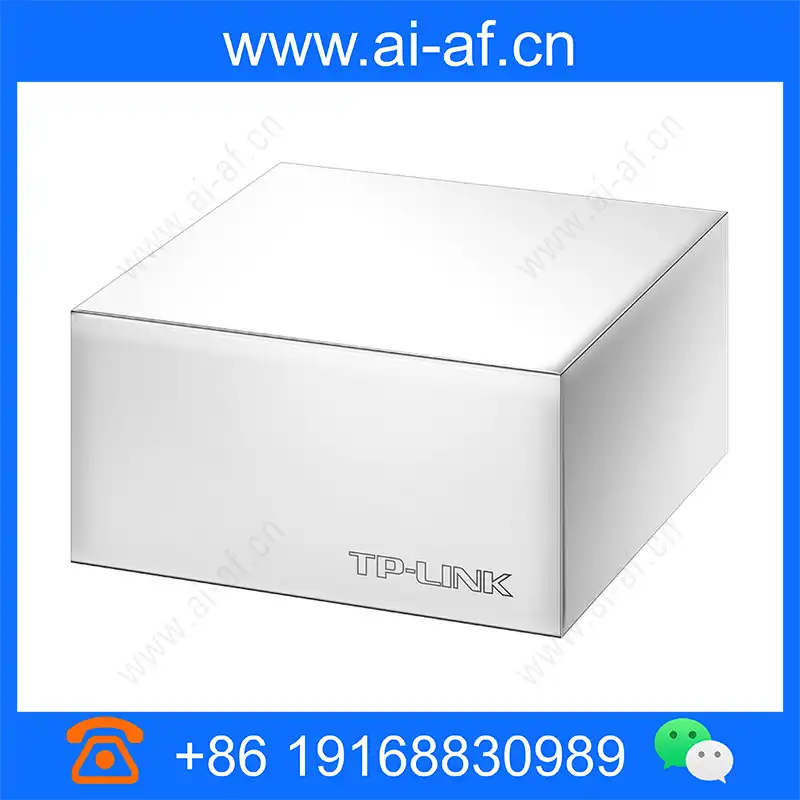

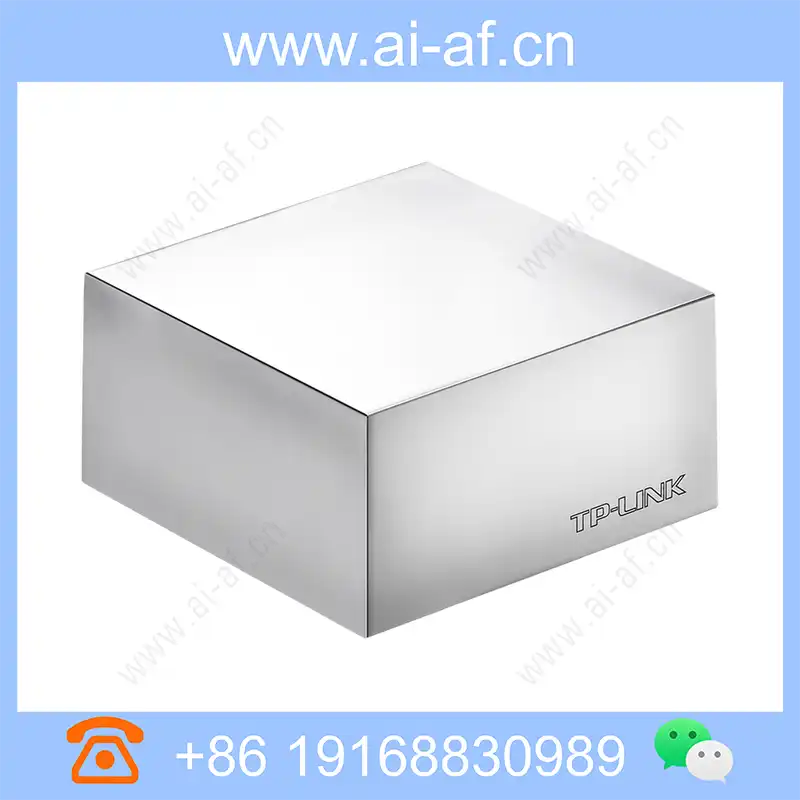

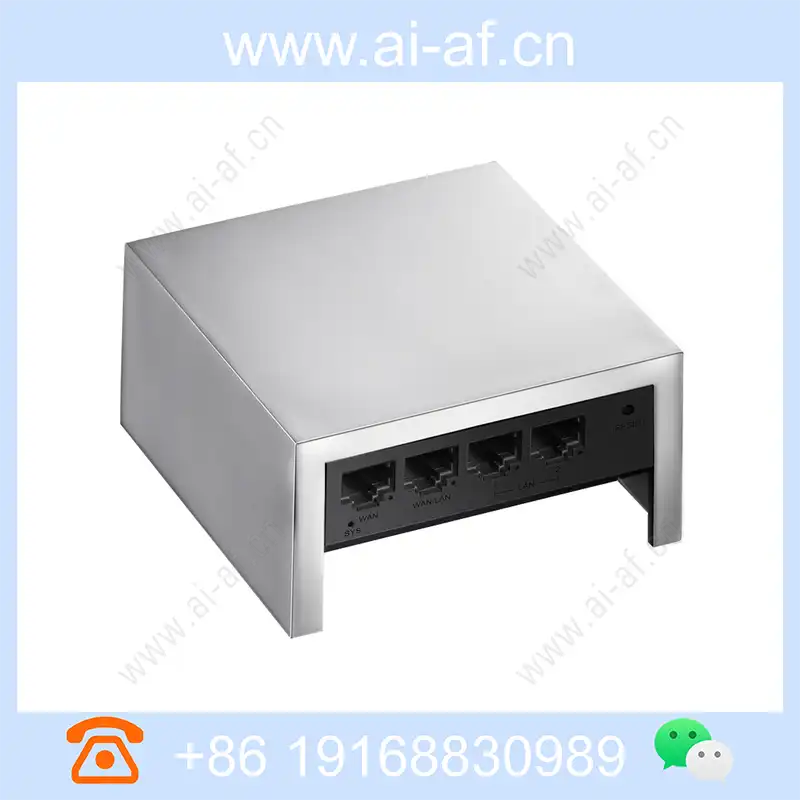

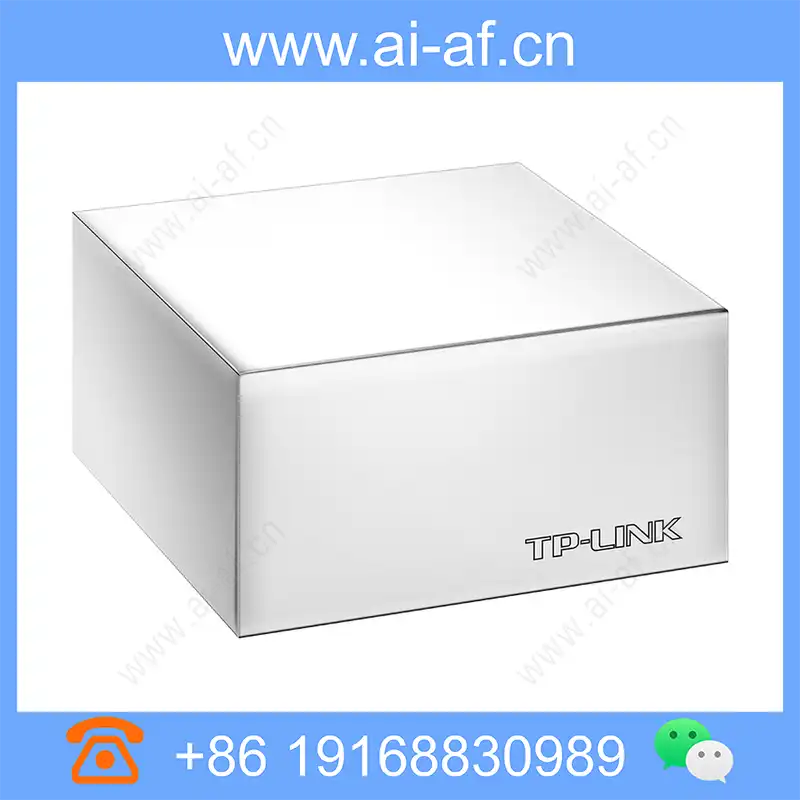

TP-LINK TL-R488GPQ-AC PoE·AC Gigabit Router 8 ports with machine capacity 50 manage 20 APs
Provide 1 10/100/1000M WAN port, 1 10/100/1000M WAN/LAN port, 6 10/100/1000M LAN ports The body size is only 96mm*96mm*49mm, which can be easily put into the information box/weak current box Four of the LAN ports support standard PoE power supply, comply with the IEEE802.3af/at standard, and the maximum output power of a single port is 30W Built-in AC function, can manage 20 TP-LINK APs in a unified way Support dual WAN port function, users can flexibly configure the number of WAN ports according to actual needs Support APP management, easily manage and configure home network devices through TP-LINK mobile APP Protocol standard IEEE802.3 IEEE802.3u IEEE802.3ab port 1 10/100/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) 1 10/100/1000M adaptive WAN/LAN port, support auto flip
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.3 IEEE802.3u IEEE802.3ab |
| port | 1 10/100/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) 1 10/100/1000M adaptive WAN/LAN port, support auto flip (Auto MDI/MDIX) 6 10/100/ 1000M adaptive LAN/LAN port, support auto flip (Auto MDI/MDIX) |
| Indicator light | Per port: Link/Act, WAN/LAN Per device: SYS |
| PoE performance | Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 53W |
| Power Specifications | Power adapter, input 220V AC / 50Hz, output 53.5VDC / 1.13A |
| Cooling method | Natural cooling |
| Dimensions | 96mm*96mm*49mm |
| Common settings | Connected device management Internet settings Dual WAN port settings |
| advanced settings | Network parameters Wireless settings (AP), can manage up to 20 TP-LINK AP Internet control Advanced users Equipment management Setup wizard APP management |
| Packaging accessories | PoE·AC Integrated Router TL-R488GPQ-AC Power Adapter Manual |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
