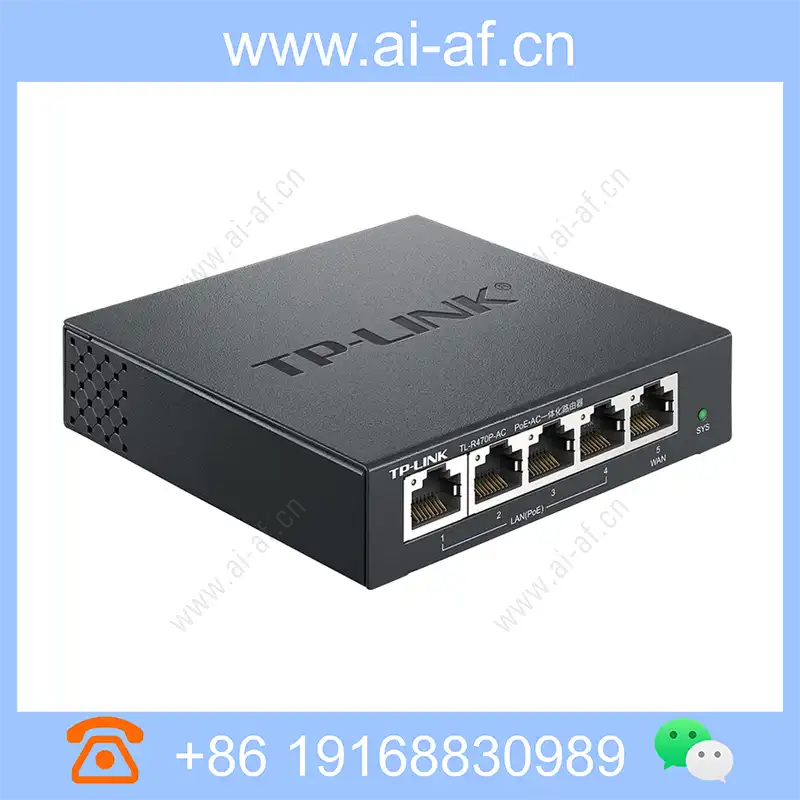

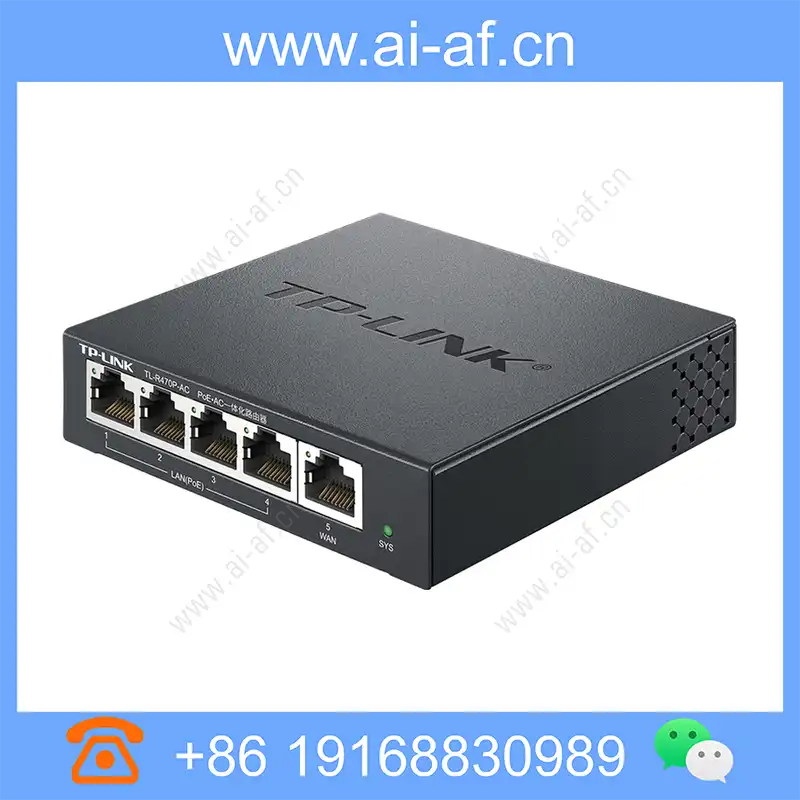

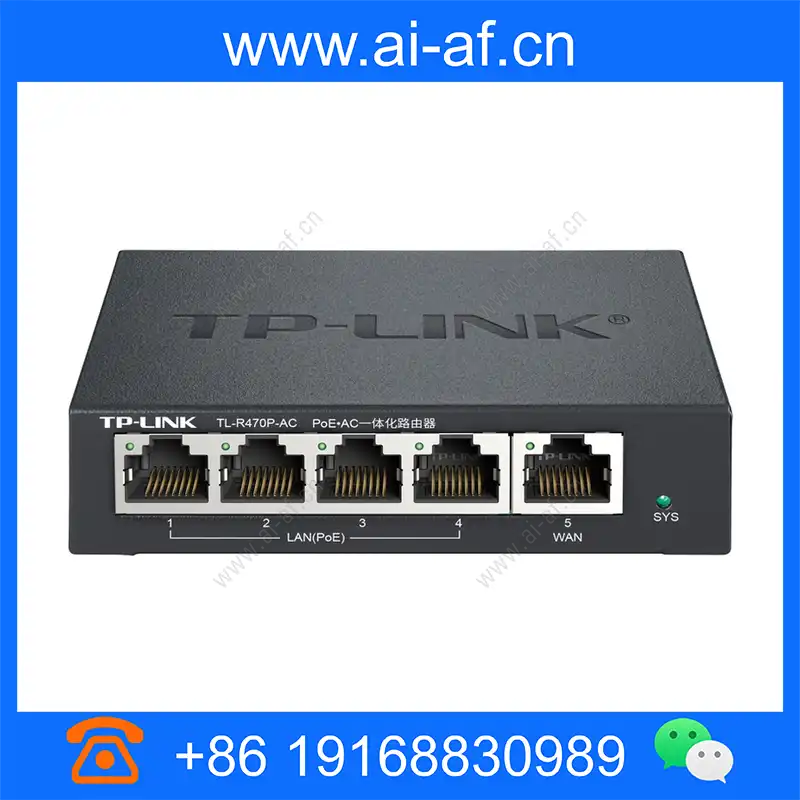

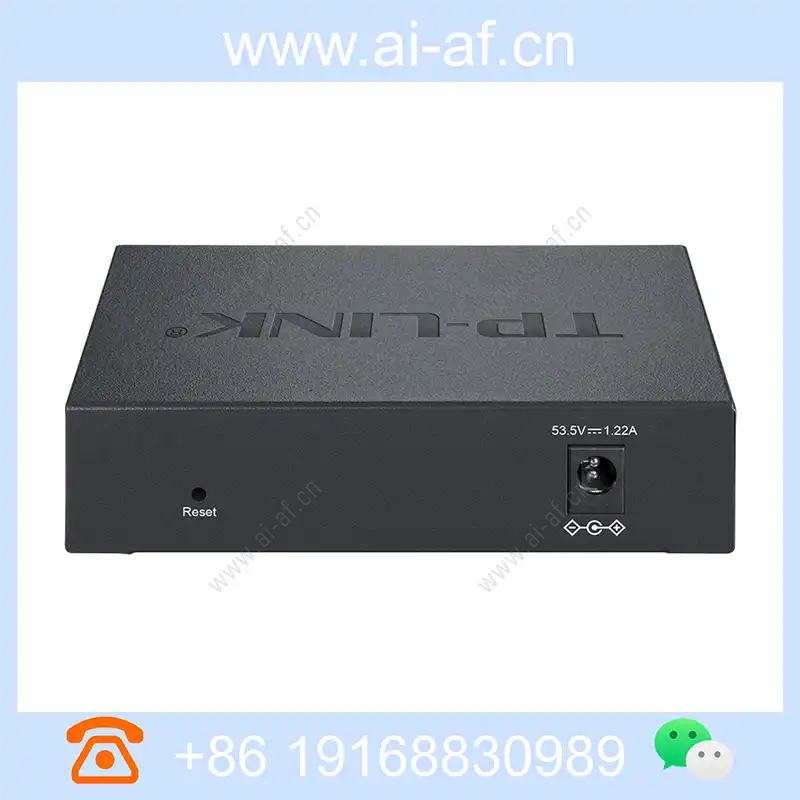

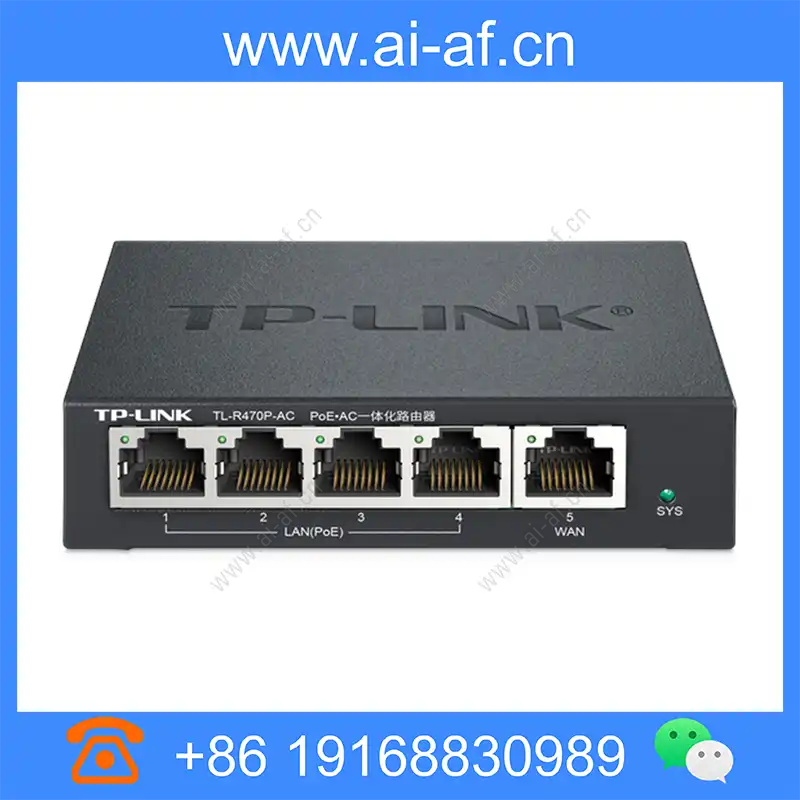

TP-LINK TL-R470P-AC PoE·AC all-in-one 100M Router 5 ports with machine capacity 30 manage 10 APs
Provide 1 10/100M WAN port, 4 10/100M LAN ports The size is 100mm*98mm*25mm, which can be easily put into the weak current box/information box The LAN ports support standard PoE power supply, comply with IEEE802.3af/at standard, and the maximum output power of a single port is 30W Built-in AC function, can manage 10 TP-LINK APs in a unified way Protocol standard IEEE802.3 IEEE802.3u port 1 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) 4 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) Indicator light Per port: Link/Act Per device: SYS PoE performance Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 57W Power Specifications Power adapter, input 220V AC, 50Hz, output 53.5VDC / 1.13A Cooling
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.3 IEEE802.3u |
| port | 1 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) 4 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) |
| Indicator light | Per port: Link/Act Per device: SYS |
| PoE performance | Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 57W |
| Power Specifications | Power adapter, input 220V AC, 50Hz, output 53.5VDC / 1.13A |
| Cooling method | Natural cooling |
| Dimensions | 100mmX98mmX25mm |
| Common settings | Connected device management Internet settings Wireless settings (AP) |
| advanced settings | Network parameters Wireless settings (AP), can manage up to 10 TP-LINK AP Internet control Advanced users Device management Setup wizard |
| Packaging accessories | PoE·AC Integrated Router TL-R470P-AC Power Adapter Manual |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
