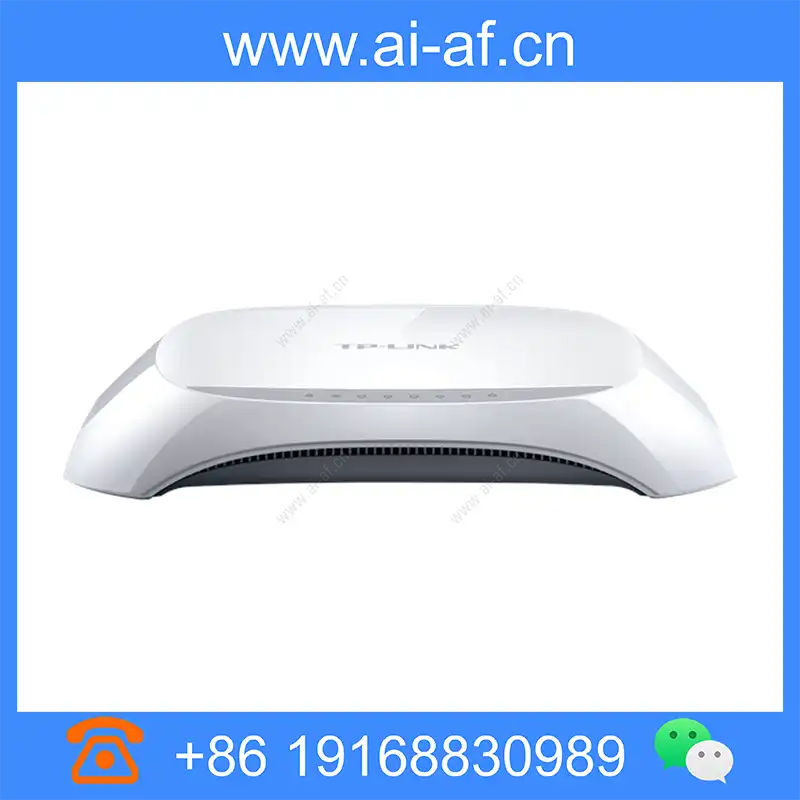

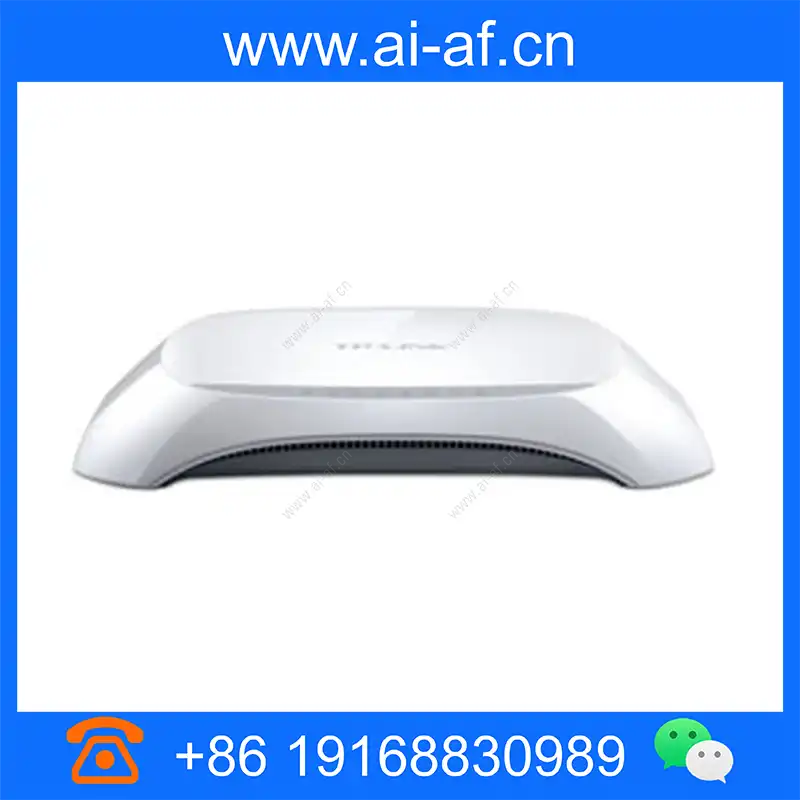

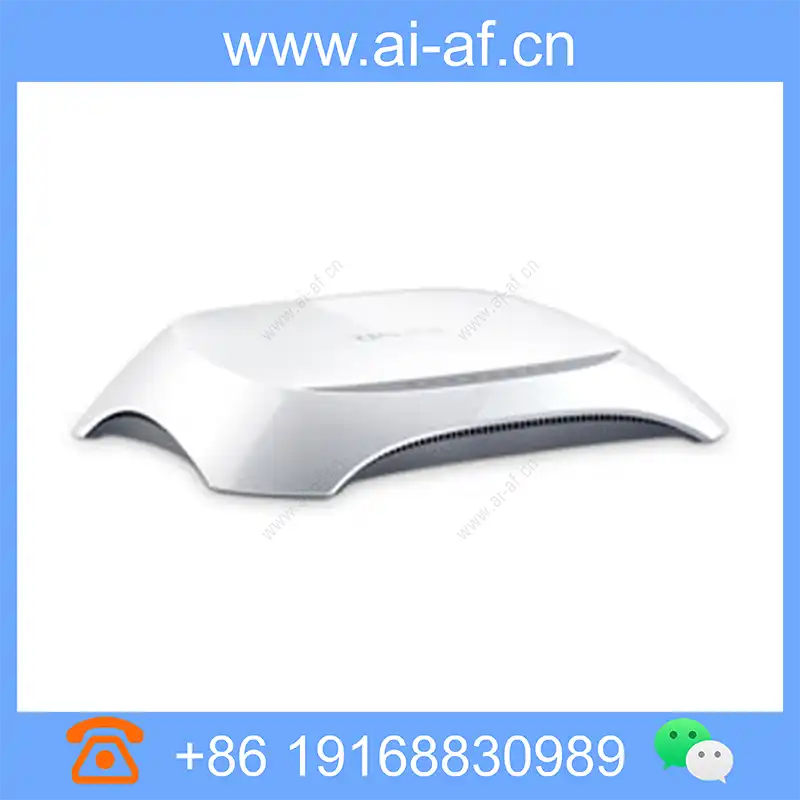

TP-LINK TL-R406 SOHO Broadband Router
Economical and practical, simple and convenient Provide multiple access methods and dialing modes to meet the network access needs of different users Built-in firewall to effectively control the access rights of LAN users Support DHCP dynamic address allocation and static address allocation Multiple network access It provides three access modes: dynamic IP, static IP and PPPoE, which not only supports ADSL line users, but also supports community broadband users; PPPoE access mode supports three modes of automatic dialing, on-demand dialing and manual dialing to meet the dialing needs of different users. IP bandwidth control function According to the Internet needs of different users, the Internet bandwidth of each computer is reasonably allocated to prevent individual users from
Product Features
Multiple network accessIt provides three access modes: dynamic IP, static IP and PPPoE, which not only supports ADSL line users, but also supports community broadband users; PPPoE access mode supports three modes of automatic dialing, on-demand dialing and manual dialing to meet the dialing needs of different users. IP bandwidth control functionAccording to the Internet needs of different users, the Internet bandwidth of each computer is reasonably allocated to prevent individual users from excessively occupying bandwidth resources when using P2P software such as BT and Thunder, which affects other users' normal network usage. ARP attack protectionSupport IP and MAC address binding, effectively prevent ARP attacks, and ensure the safe and stable operation of intranet communications. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
| interface | 4 10/100M adaptive RJ45 ports (support auto flip) 1 10/100M adaptive RJ45 ports (support auto flip) |
| Button | Reset button |
| LED | LAN port status indicator WAN port status indicator System status indicator (SYS) |
| size | 158 x 122 x 34mm(L x W x H) |
| Network settings | WAN port connection type support: PPPoE, dynamic IP, static IP Dialing type: automatic dialing, on-demand dialing, manual dialing MAC address modification and cloning VPN Pass-through static routing |
| DHCP settings | DHCP server DHCP client Client list Static address assignment |
| Port forwarding | Virtual server DMZ host UPnP settings |
| Security Settings | IP address filtering Domain name filtering MAC address filtering |
| System Tools | System Security Log Remote Web Management Web Software Upgrade |
| Packaging accessories | SOHO Broadband Router TL-R406 Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
