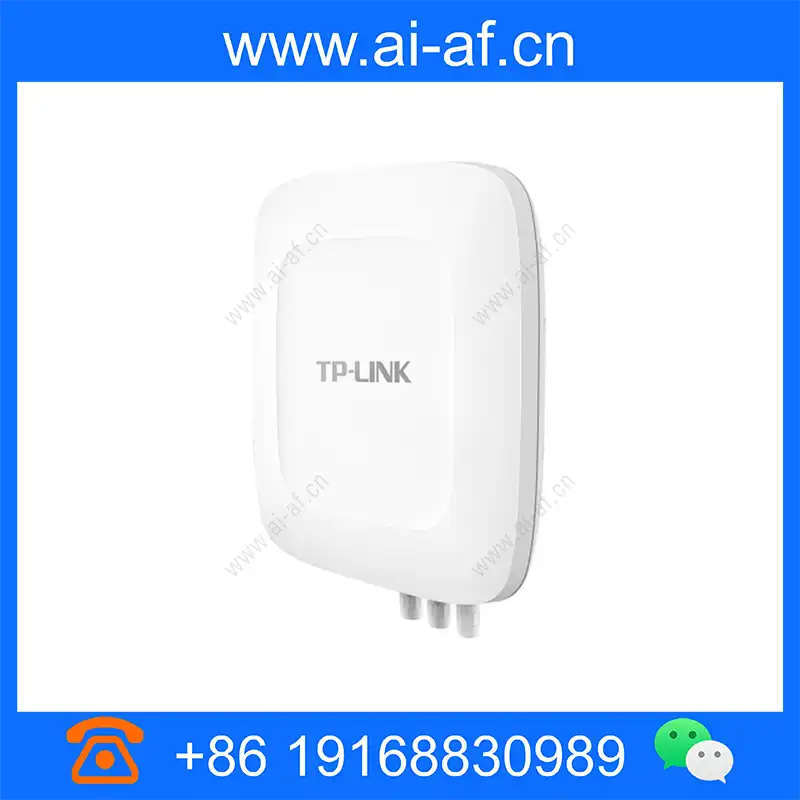

TP-LINK TL-NXAP6000-GP2 AX6000 Dual Band Gigabit Wi-Fi 6 Outdoor Wireless AP

TL-NXAP6000-GP2 supports IEEE 802.11ax (Wi-Fi 6), which is a new generation of Wi-Fi standards based on existing wireless standards, aimed at solving increasing high bandwidth, multi-user, high rate, low-time Delay the needs of the network. TL-NXAP6000-GP2 combines new generation characteristics such as OFDMA, UL MU-MIMO, 1024QAM, 160MHz, and provides faster speed, higher capacity, more concurrent connection, and more concurrently based on Wi-Fi 5 standard. It can be widely used in immecessing applications such as VR / AR / MR, and the company's 4K HD conference office, indoor and outdoor massive terminal high secret interface.

First, the four major improvements brought by Wi-Fi 6

Wireless rate is upgraded to 6Gbps

802.11ax through 1024QAM, Long OFDM Symbol, and 160M bandwidth technology, the wireless rate can be raised to a maximum of 6Gbps to meet the requirements of high-rate applications such as VR / AR, 4K or even 8K streaming.

Network capacity improvement

802.11ax Through OFDMA, Spatial Reuse, DL / UL MU-MIMO technology, the system capacity is greatly improved compared to 802.11ac, while supporting TWT technology, allowing the AP unified dispatching terminal to wake up and sleep activities, reduce terminal conflicts and not Necessary to wake up, meet the concurrent access requirements of the people's stream intensive scene massive terminal equipment.

Coverage boost

802.11ax The transmitting mechanism by better Long OFDM Symbol and 2MHz narrowband transmission, effectively reducing terminal packet loss rate and noise interference, increasing the terminal receive sensitivity, increasing the Wi-Fi coverage.

Anti-interference ability

802.11AX supports BSS color code, dynamic CCA threshold and power control, ease multi-user scenes with channel interference, and enhance spectrum resource utilization.

Second, professional hardware, software design

Independent power amplifier circuit to increase the transmission power

External Independent Amplifier (PA: POWER AMPLIFIER) and low noise power delivery circuit (LNA: Low noise amplifier) further increasing wireless transmit power, reducing wireless signal reception noise interference, wider coverage.

Automatic RF tuning to optimize overall performance

Supports automatic radio frequency tuning, automatic computing of neighbor relationships between the AP in the network, and automatically adjusts the wireless transmit power and channel according to the real-time interference, load conditions of the nearby equipment, ensuring that the overall wireless network is always at high speed, high performance.

Smart kicking weak signal equipment, upgrading wireless quality

Weak signal intensity thresholds, intelligent identification, and disabled, kicking the signal intensity below the threshold. Do not let the weak signal devices drag network efficiency and improve the roaming quality of the entire wireless network.

Intelligent roaming technology to enhance the wireless experience of each user

With intelligent roaming technology based on 802.11 kVR protocol, in high-density environments such as multi-APs such as conference room / office / bar / KTV, to help mobile phones, PAD, computers automatically access to signal quality, the best AP, implementation Quick roams within 50ms, effectively enhance the experience of each user and the overall performance of the wireless network.

Third, high performance interface

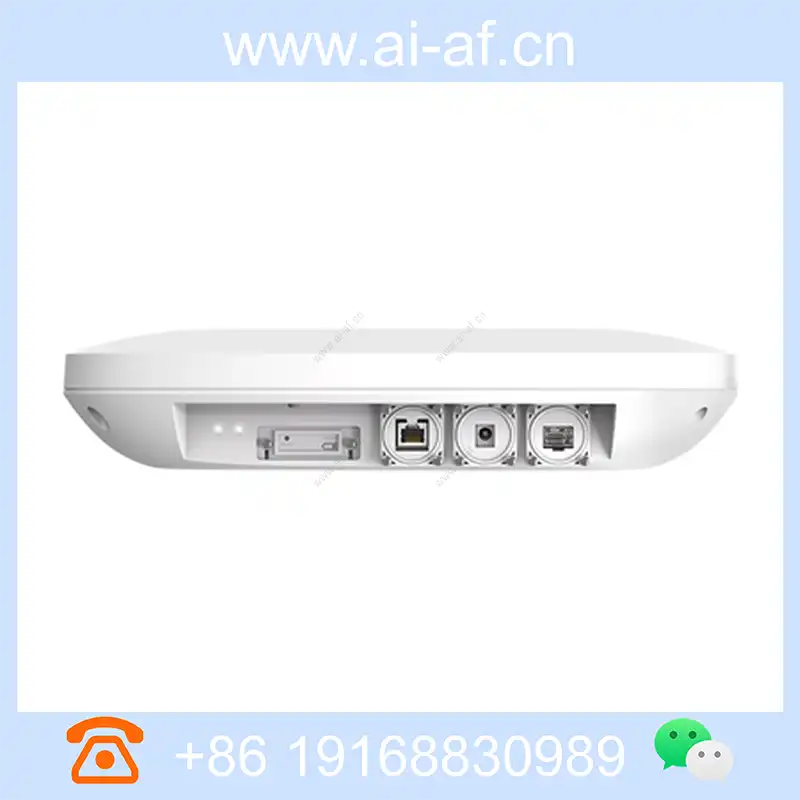

2.5G network port, net online

With 2.5Gbps network port, compared to Gigabit, 100M port, rate is greatly improved, so that the wired interface will no longer become a bottleneck of wireless transmission, meet multi-user, high-band wide range of high-speed Internet access requirements.

Gigabit SFP optical port, direct connection is more convenient

A Gigabit SFP fiber module slot can be installed to install the SFP fiber module. With fiber optic direct connection AP, it is possible to effectively solve the wiring challenge when the AP and the machine room are far.

Fourth, convenient construction, simple management, safe care

Multiple power supply

a, standard PoE power supply, more convenient construction

Powered by standard PoE, no external power supply, each AP requires only one network cable, which is convenient.

Note: You need to match the PoE power supply such as a PoE switch, standard PoE power electrical appliance.

b, PASSIVE POE power supply, power transmission distance can reach 100 meters

Supports PASSIVE POE power supply, power supply transmission distance can reach 100 meters, solve the problem of power access difficulties in an outdoor environment, and flexibly based on demand.

c, support 12V ~ 53.5V DC power supply, no need to purchase a PoE switch to reduce the network cost.

Note: This product is factory distributed DC power adapter and non-standard PoE power supply module.

Multiple installation methods

At the same time, it supports the hug rod, the wall mounting, horizontal, and vertical angles can be adjusted, easy to install, and adapt to more scenes.

IP68 dust-proof waterproof

Provides IP68 dustproof, waterproof, and can work normally in extreme environments as low as -30°C to 65°C, no fear, sun, rain.

TP-LINK Commercial Cloud Platform Unified Management

• Remote centralized management multiple projects, efficient and convenient
• In real time monitoring equipment, the alarm is timely and accurate
• Analysis of chart data, at a glance
• Support mobile phone app, management, anytime, anywhere

Independent hardware protection circuit, automatic recovery work exception AP

When the built-alone hardware protection circuit, the AP work is abnormal, it can be automatically recovered without manual intervention, ensuring that the Wi-Fi signal is stably covered, and the later maintenance is more worry-free.
