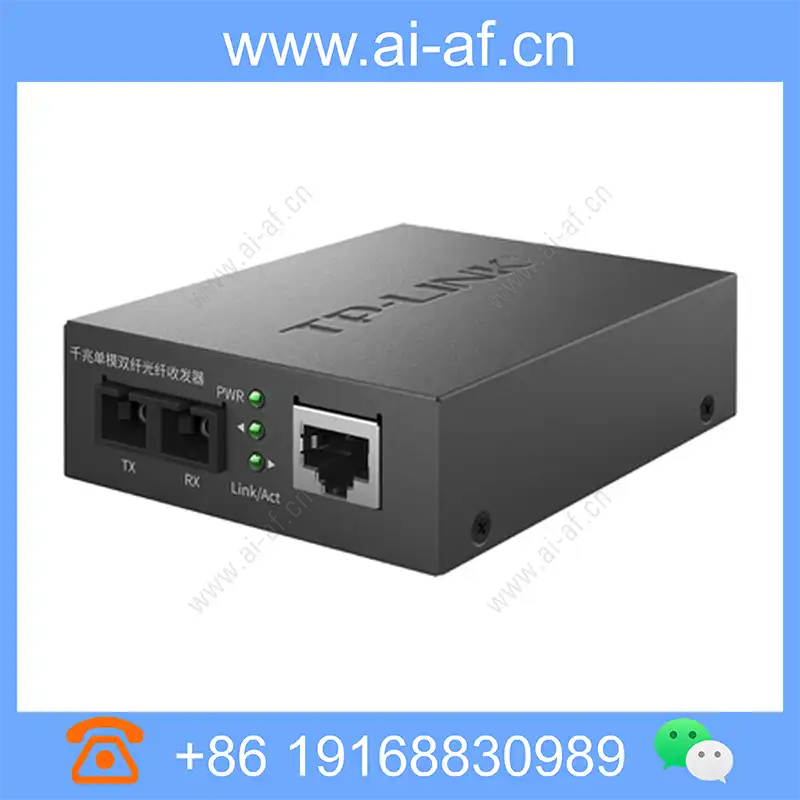

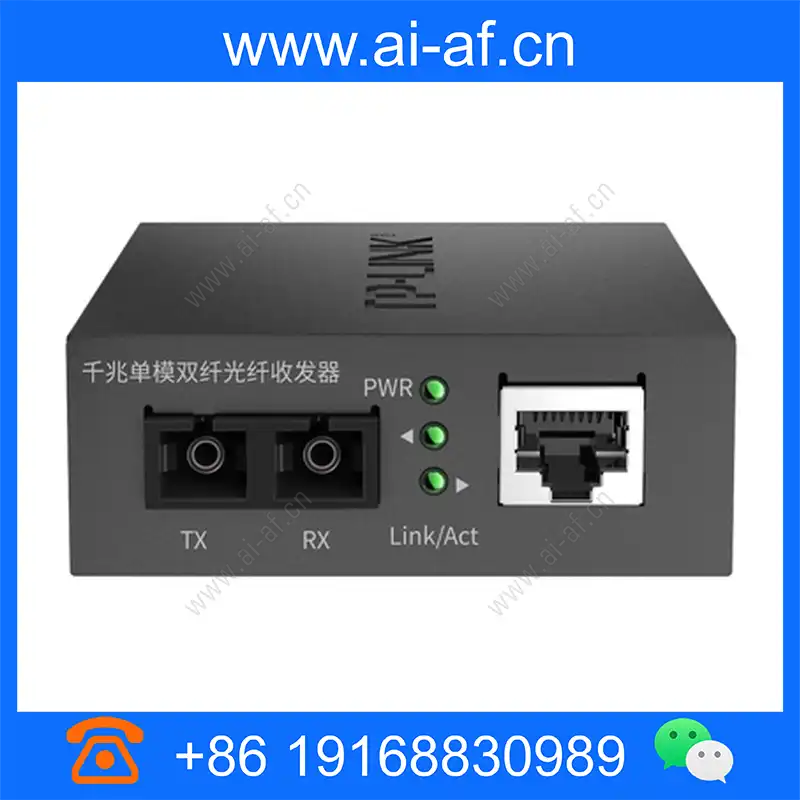

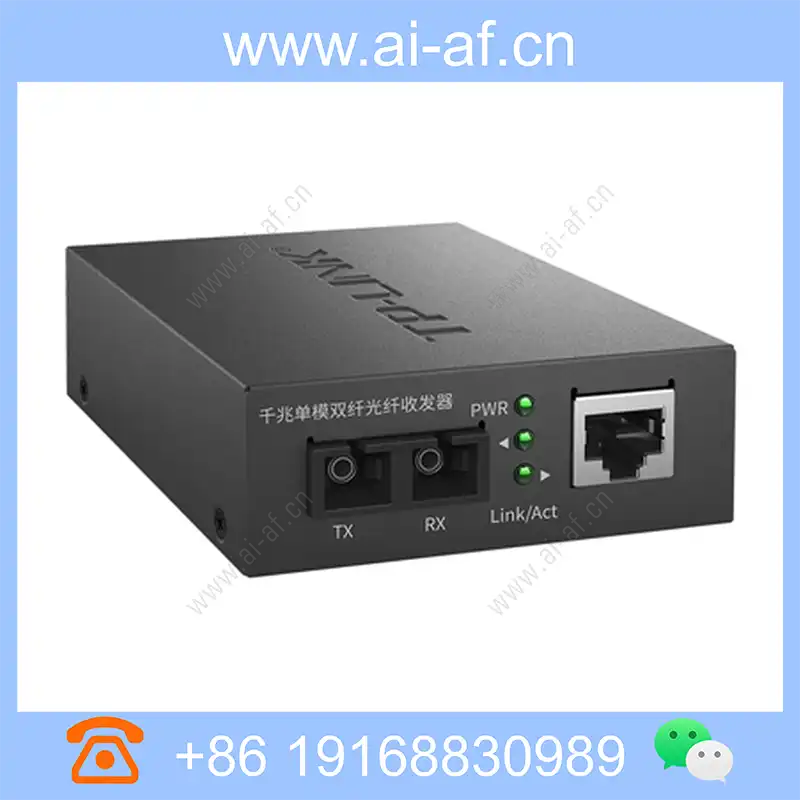

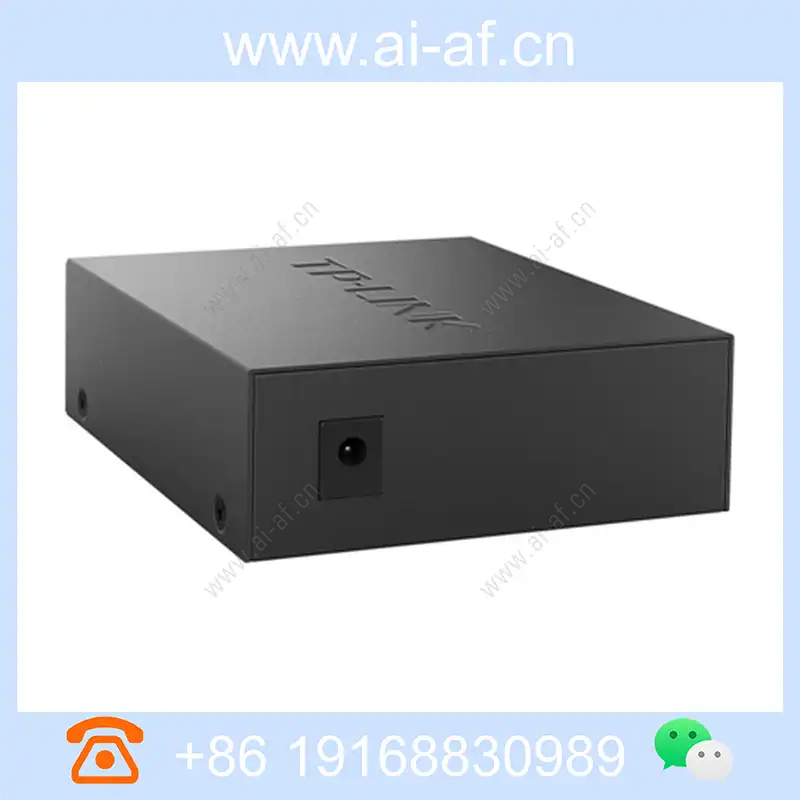

TP-LINK TL-MC210CS industrial grade optical fiber transceiver Gigabit single-mode dual-fiber 2SC 1GE 20KM
1 pair of Gigabit SC optical ports, 1 Gigabit RJ45 network port Single-mode dual-fiber transmission, the longest transmission distance is 20 kilometers Working wavelength: 1310nm TL-MC210CS is a Gigabit single-mode dual-fiber optical transceiver that provides a 1000Mbps electrical port and a pair of 1.25Gbps SC optical ports, which can convert the electrical port signal and the optical port signal, and perform long-distance data transmission through the optical fiber . TL-MC210CS uses standard SC interface, working wavelength 1310nm, single-mode dual-fiber transmission, the longest distance can reach 20 kilometers. technical standard IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x Interface and rate 1 pair 1000Mbps SC optical port 1 100/1000Mbps RJ45 network port Working
Product Features
TL-MC210CS is a Gigabit single-mode dual-fiber optical transceiver that provides a 1000Mbps electrical port and a pair of 1.25Gbps SC optical ports, which can convert the electrical port signal and the optical port signal, and perform long-distance data transmission through the optical fiber . TL-MC210CS uses standard SC interface, working wavelength 1310nm, single-mode dual-fiber transmission, the longest distance can reach 20 kilometers. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| technical standard | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x |
| Interface and rate | 1 pair 1000Mbps SC optical port 1 100/1000Mbps RJ45 network port |
| Working wavelength and transmission distance | 1310nm 20km optical fiber transmission |
| Transmission medium | Optical fiber: Single-mode optical fiber Network cable: Cat5e and above |
| Indicator light | Optical port and network port Link / Act, PWR |
| power supply | 5VDC/0.4A |
| size | 94.5mm*73.0mm*27.0mm |
| Use environment | Operating temperature: -20°C~60°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -9 ~ 0dBm Receive sensitivity: -22dBm |
