TP-LINK TL-MC200CM industrial grade optical fiber transceiver Gigabit multimode dual fiber 2SC 1GE 550m
1 pair of Gigabit SC optical ports, 1 Gigabit RJ45 network port Multimode dual fiber transmission, the longest transmission distance is 0.55 kilometers Working wavelength: 850nm TL-MC200CM is a Gigabit multi-mode dual-fiber optical transceiver that provides a 1000Mbps electrical port and a pair of 1.25Gbps SC optical ports, which can convert electrical signals and optical port signals, and perform long-distance data transmission through optical fibers . TL-MC200CM uses standard SC interface, working wavelength 850nm, multi-mode dual-fiber transmission, the longest distance can reach 0.55 kilometers. Supported standards IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x interface 1 pair of 1.25Gbps SC fiber interface 1 100Mbps/1000Mbps adaptive RJ45 port Transmission wavelength
Product Features
TL-MC200CM is a Gigabit multi-mode dual-fiber optical transceiver that provides a 1000Mbps electrical port and a pair of 1.25Gbps SC optical ports, which can convert electrical signals and optical port signals, and perform long-distance data transmission through optical fibers . TL-MC200CM uses standard SC interface, working wavelength 850nm, multi-mode dual-fiber transmission, the longest distance can reach 0.55 kilometers. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x |
| interface | 1 pair of 1.25Gbps SC fiber interface 1 100Mbps/1000Mbps adaptive RJ45 port |
| Transmission wavelength and distance | Wavelength: 850nm The longest transmission distance: 0.55km |
| Transmission medium | Network cable: UTP and STP of Cat 5 or above Fiber: 50/125um or 62.5/125um multimode fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |

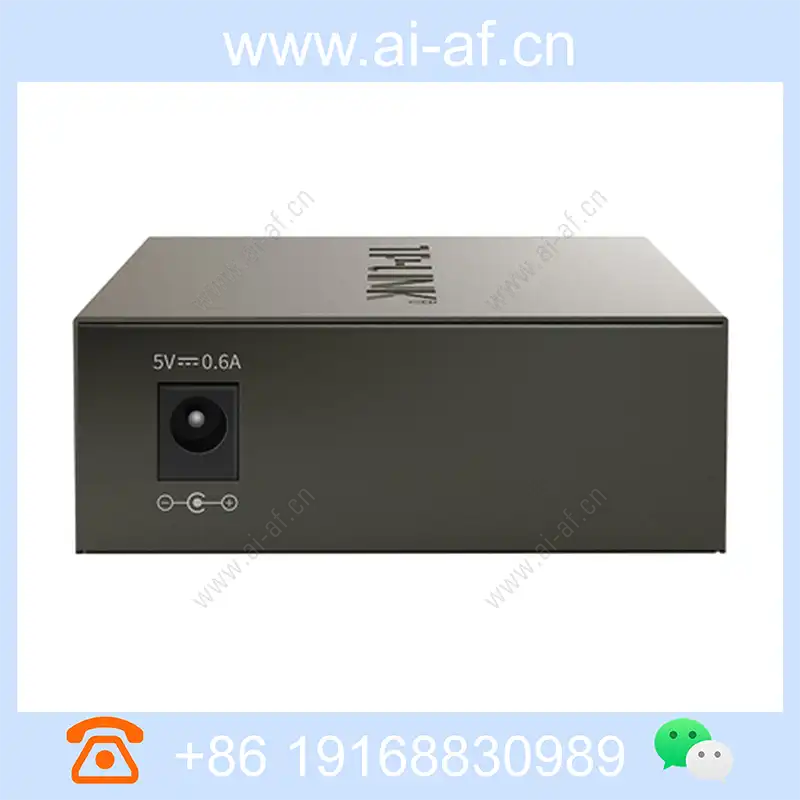

| power supply | 5VDC/0.6A |
| size | 94.5mm*73.0mm*27.0 mm |
| Use environment | Operating temperature: -20°C~60°C Storage temperature: -40°C~85°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
| Light parameter | Average transmit optical power: -9.5~-4dBm Receive sensitivity: -20dBm |
| Data transmission rate per port | 2Gbps full duplex |
| Packet forwarding rate | 3Mpps |
| MAC address depth | 2K |
| Internal cache | 1Mbit |
