TP-LINK TL-FC342A-3 fiber switch full gigabit single mode single fiber 4SC 2GE 3KM
4 Gigabit SC optical ports, 2 Gigabit RJ45 network ports Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 3 kilometers Working wavelength: 1550nm (transmit), 1310nm (receive) Support VLAN isolation TL-FC342A-3 is a full-gigabit single-mode single-fiber fiber switch that provides two 1000Mbps electrical ports and four 1.25Gbps SC optical ports, which can convert electrical signals and optical port signals, and through the optical fiber for remote Distance data transmission. TL-FC342A-3 uses wavelength division multiplexing technology, with a transmission wavelength of 1550 nm and a reception wavelength of 1310 nm. It can simultaneously receive and send data through a single-mode fiber, with a maximum
Product Features

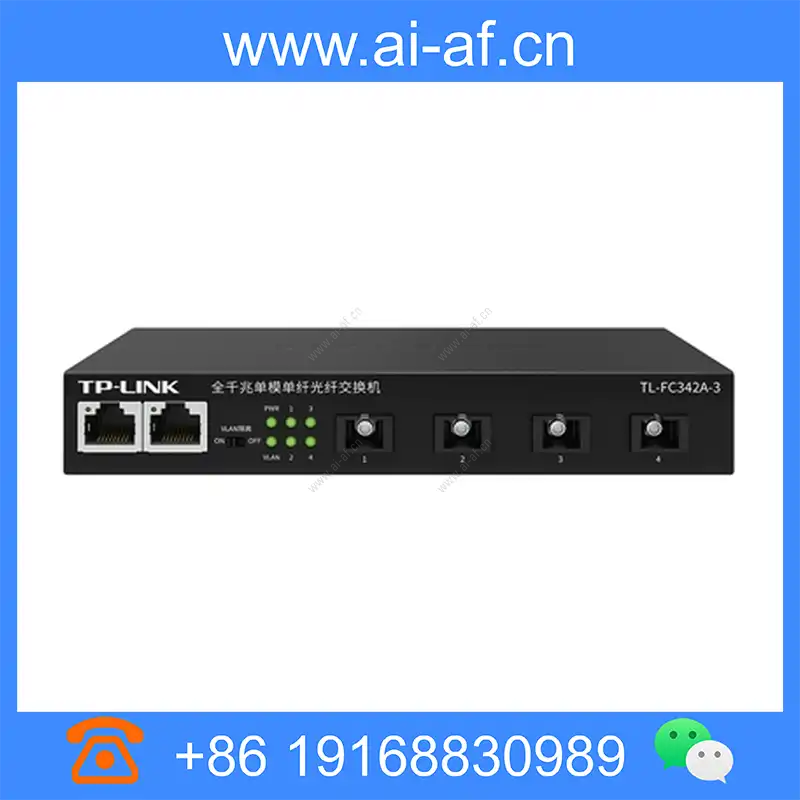

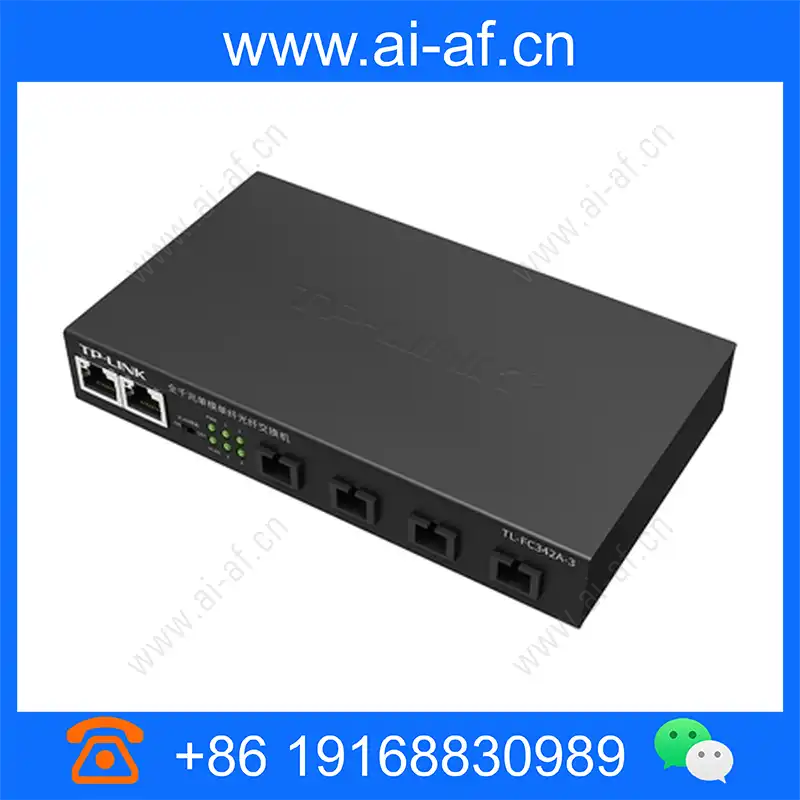

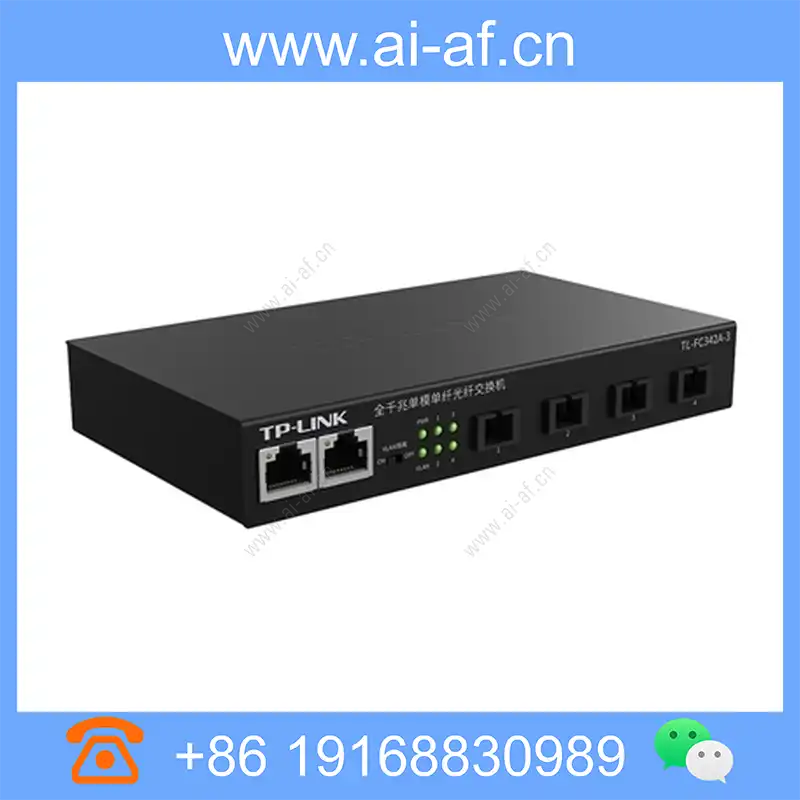

TL-FC342A-3 is a full-gigabit single-mode single-fiber fiber switch that provides two 1000Mbps electrical ports and four 1.25Gbps SC optical ports, which can convert electrical signals and optical port signals, and through the optical fiber for remote Distance data transmission. TL-FC342A-3 uses wavelength division multiplexing technology, with a transmission wavelength of 1550 nm and a reception wavelength of 1310 nm. It can simultaneously receive and send data through a single-mode fiber, with a maximum transmission distance of 3 kilometers. TL-FC342A-3 provides a VLAN switch, which can be flexibly switched according to the actual environment. When it is turned on, each optical port cannot access each other, and can only communicate with two electrical ports to achieve port isolation. TL-FC342A-3 is recommended to be used with TL-FC311B-3 to give full play to product performance. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x |
| interface | 4 x 1.25Gbps SC fiber ports 2 x 100/1000M RJ45 ports |
| Transmission wavelength | TX:1550nm RX:1310nm |
| Transmission medium | Network cable: UTP and STP of category 5 or above Optical fiber: 9/125um single-mode optical fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |

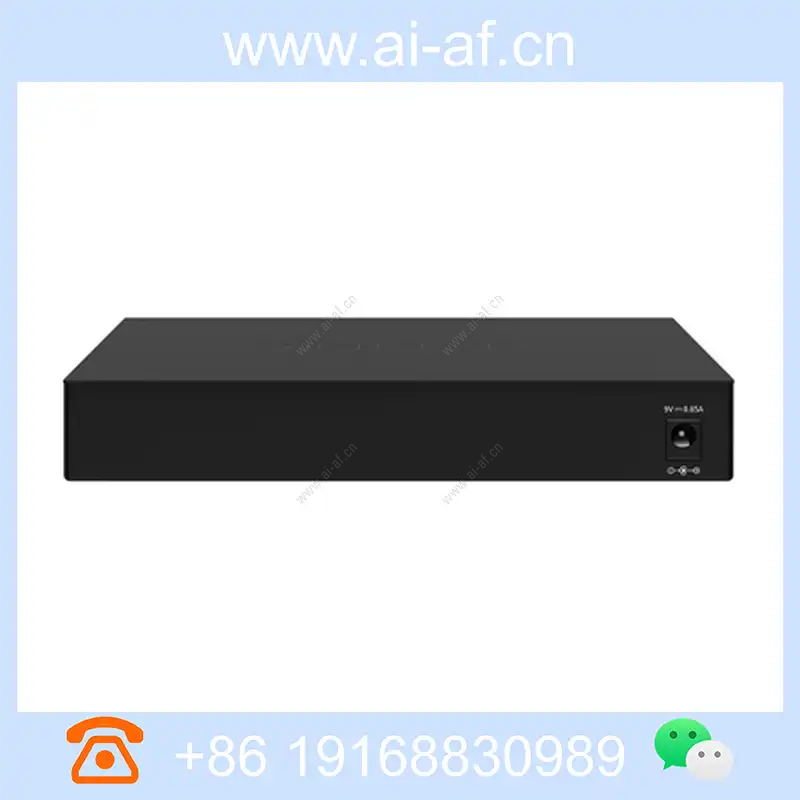

| power supply | 9VDC/0.85A |
| size | 171mm*98mm*27 mm |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -17~-6dBm Receive sensitivity: -22dBm |
| Data transmission rate per port | 2Gbps full duplex |
