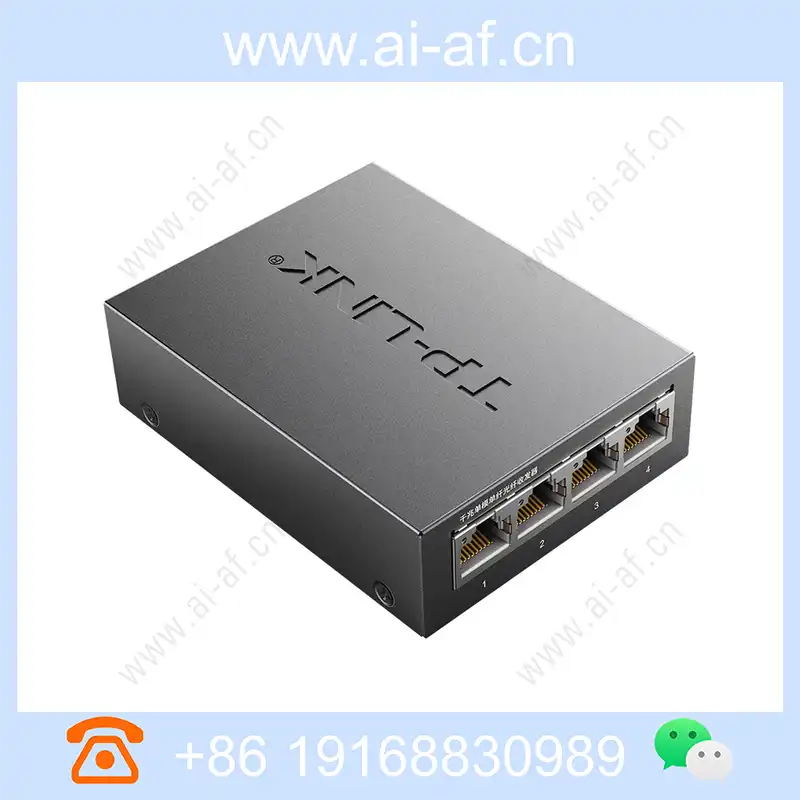

TP-LINK TL-FC314B-3 Fiber Transceiver Full Gigabit Single Mode Single Fiber 1SC 4GE 3KM

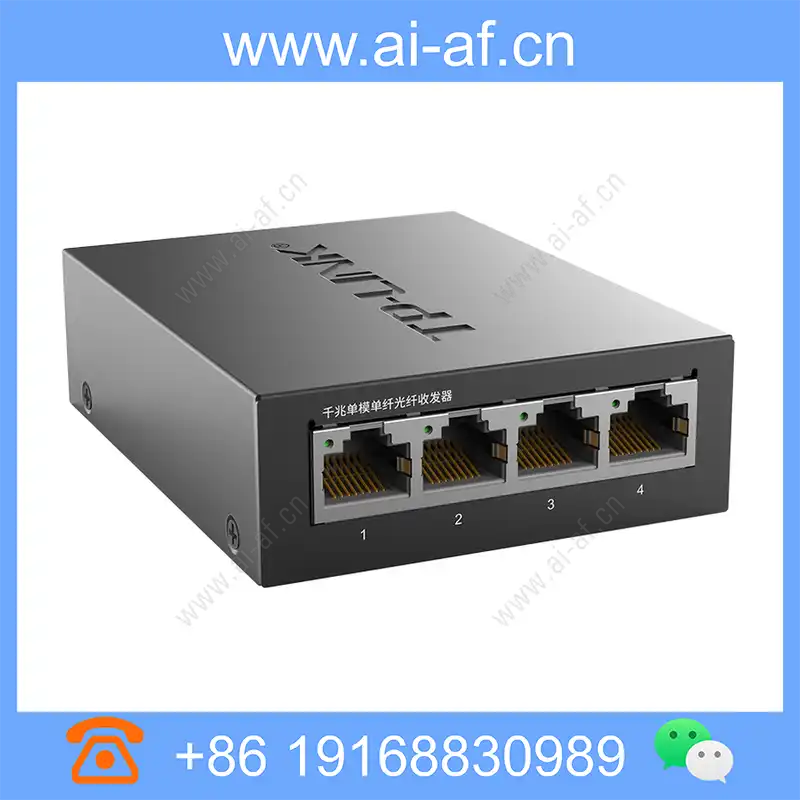

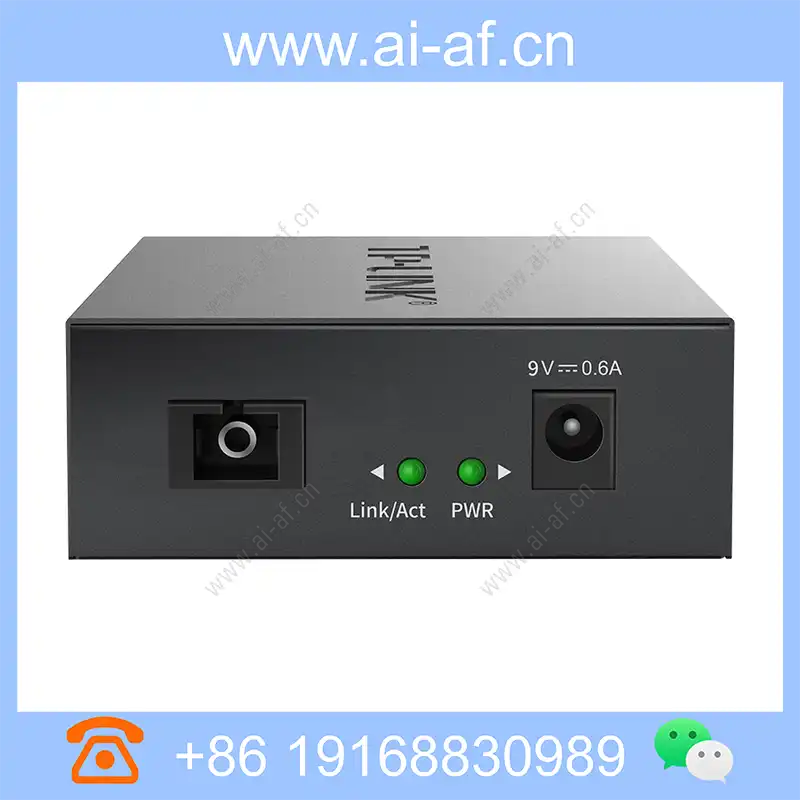

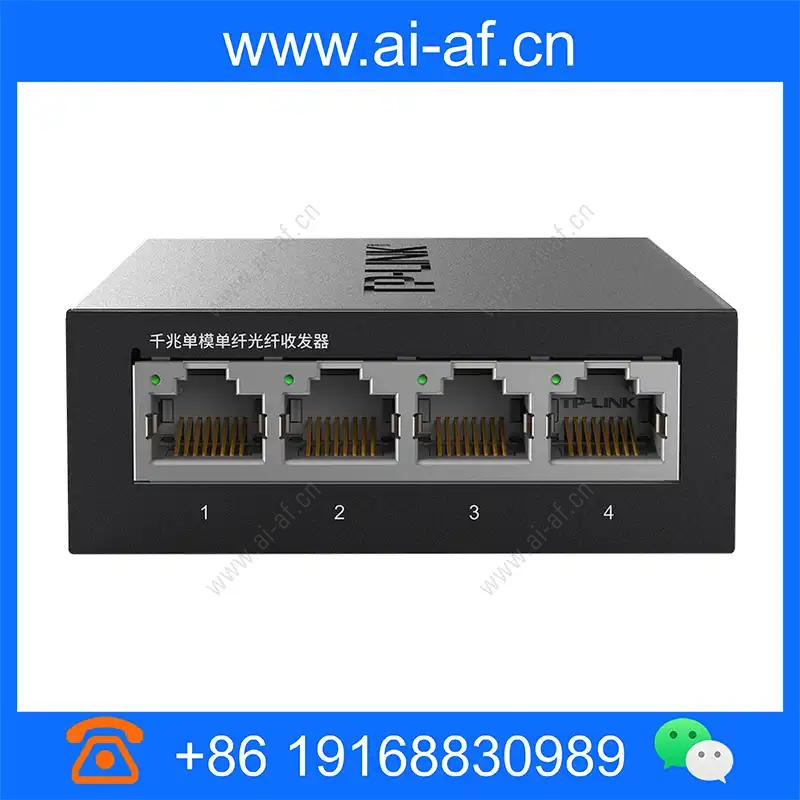

1 Gigabit SC optical port, 4 Gigabit RJ45 network ports Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 3 kilometers Working wavelength: 1310nm (transmit), 1550nm (receive) Supported standards IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x interface 1 1.25Gbps SC fiber interface 4 100Mbps/1000Mbps adaptive RJ45 ports Transmission wavelength TX:1310nm RX:1550nm Transmission medium Network cable: UTP and STP of category 5 or above Optical fiber: 9/125um single-mode optical fiber Indicator light Optical and electrical ports Link / Act, PWR power supply 9VDC/0.6A size 94.5mm*73mm*27mm Use environment Operating temperature: -20°C~50°C Operating humidity: 10%~90%RH non-condensing Storage temperature:
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x |
| interface | 1 1.25Gbps SC fiber interface 4 100Mbps/1000Mbps adaptive RJ45 ports |
| Transmission wavelength | TX:1310nm RX:1550nm |
| Transmission medium | Network cable: UTP and STP of category 5 or above Optical fiber: 9/125um single-mode optical fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |
| power supply | 9VDC/0.6A |
| size | 94.5mm*73mm*27mm |
| Use environment | Operating temperature: -20°C~50°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -17~-1dBm Receive sensitivity: -22dBm |
| Data transmission rate per port | 2Gbps full duplex |
| Packet forwarding rate | 7Mpps |
| MAC address depth | 2K |
| Internal cache | 1Mbit |
