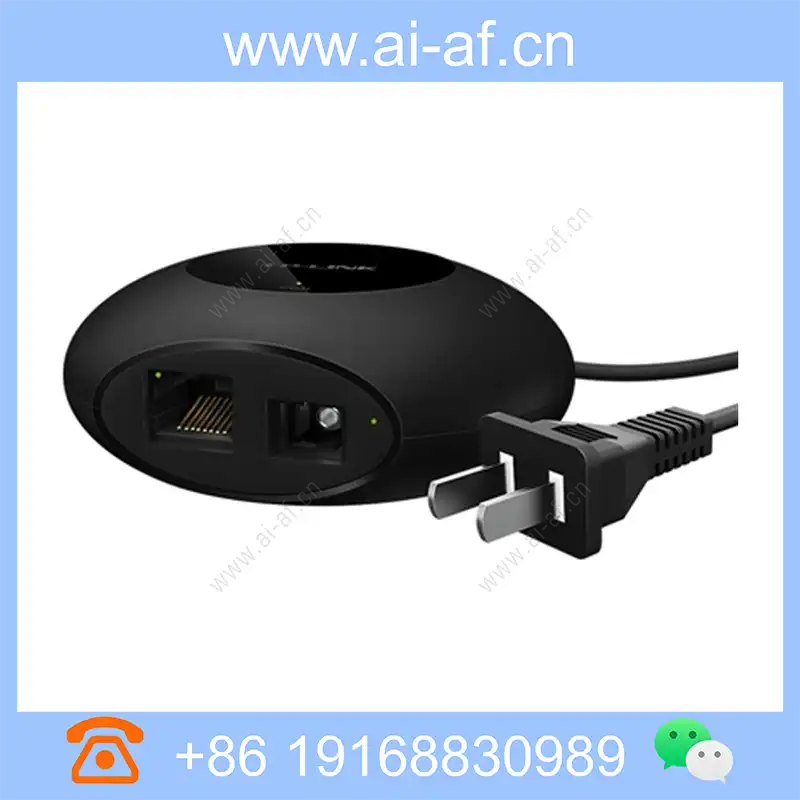

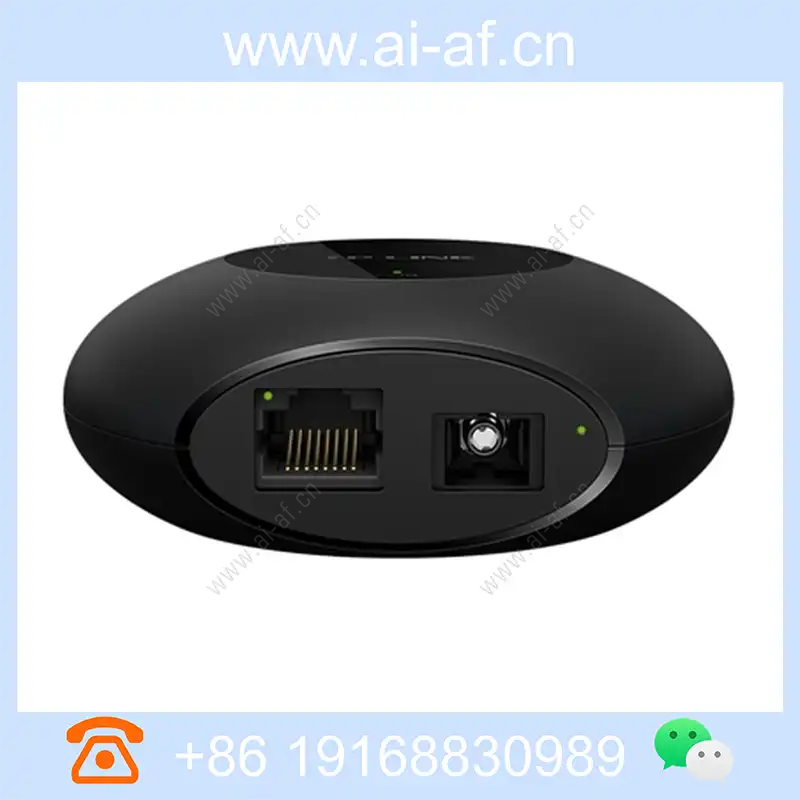

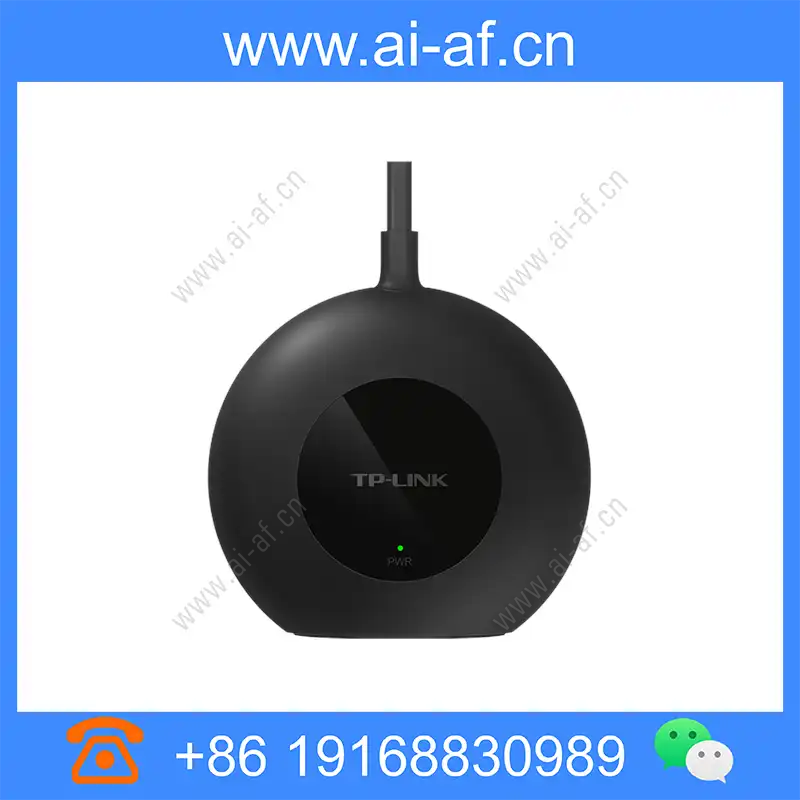

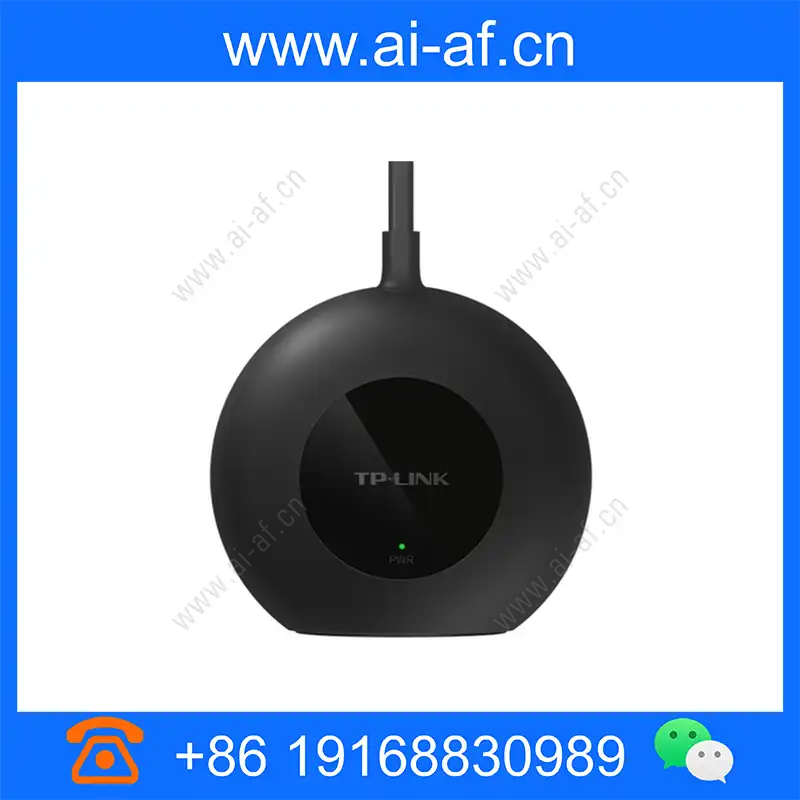

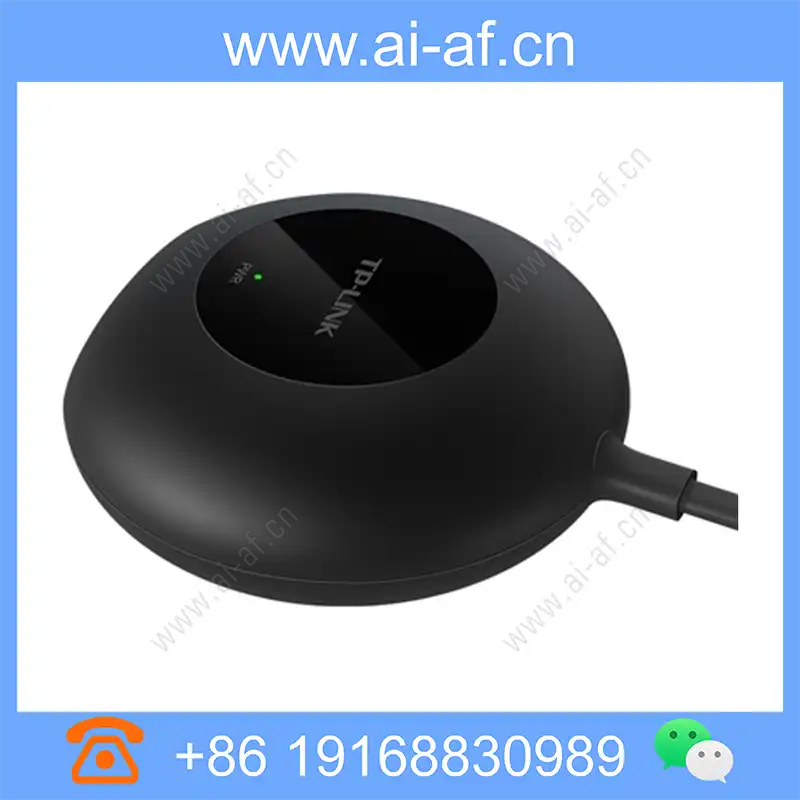

TP-LINK TL-FC311B-S Fiber Optic Transceiver Gigabit Single Mode Single Fiber 1SC 1GE 1KM
1 Gigabit SC optical port, 1 Gigabit RJ45 network port Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 1 km Working wavelength: 1310nm (transmit), 1550nm (receive) Supported standards IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x interface 1 1.25Gbps SC fiber interface 1 10/100/1000Mbps adaptive RJ45 port Transmission wavelength TX:1310nm RX:1550nm Transmission medium Network cable: UTP and STP of category 5 or above Optical fiber: 9/125um single-mode optical fiber Indicator light Optical and electrical ports Link / Act, PWR power supply 100~240V AC,50/60Hz size 81*73*29.5 mm Use environment Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature:
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x |
| interface | 1 1.25Gbps SC fiber interface 1 10/100/1000Mbps adaptive RJ45 port |
| Transmission wavelength | TX:1310nm RX:1550nm |
| Transmission medium | Network cable: UTP and STP of category 5 or above Optical fiber: 9/125um single-mode optical fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |
| power supply | 100~240V AC,50/60Hz |
| size | 81*73*29.5 mm |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -17~-1dBm Receive sensitivity: -22dBm |
| Data transmission rate per port | 2Gbps full duplex |
| Packet forwarding rate | 3Mpps |
| MAC address depth | 2K |
| Internal cache | 1Mbit |
