TP-LINK TL-EC5e21-305 super five category single shielded network engineering line Gigabit 8 core 305 meters
standard International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 conductor Material: Oxygen-free copper Structure: Single strand Single strand diameter: ≥0.51mm AWG wire number: 24AWG Quantity: 4 to 8 wire Length: 305 meters Insulation Material: HDPE Thickness: 0.27mm Diameter: .1.02±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown Quilt Material: PVC Thickness: 0.55mm Outer diameter: 6.3±0.4mm Color: Gray other Cross: none Tear rope: yes Drain line: yes Conductive aluminum foil: yes Electrical performance Transmission rate: 1000Mbps Operating frequency: 100MHz Characteristic impedance: 100Ω DC copper resistance: maximum 95Ω/km Insulation resistance: greater than 5000M Ω·Km Electrical strength:
Technical Specifications
| Property Description | Property Value |
|---|---|
| standard | International standard: ANSI/TIA-568-C.2 National standard: YD/T 1019-2013 Enterprise standard: Q/PQB0024-2017 |

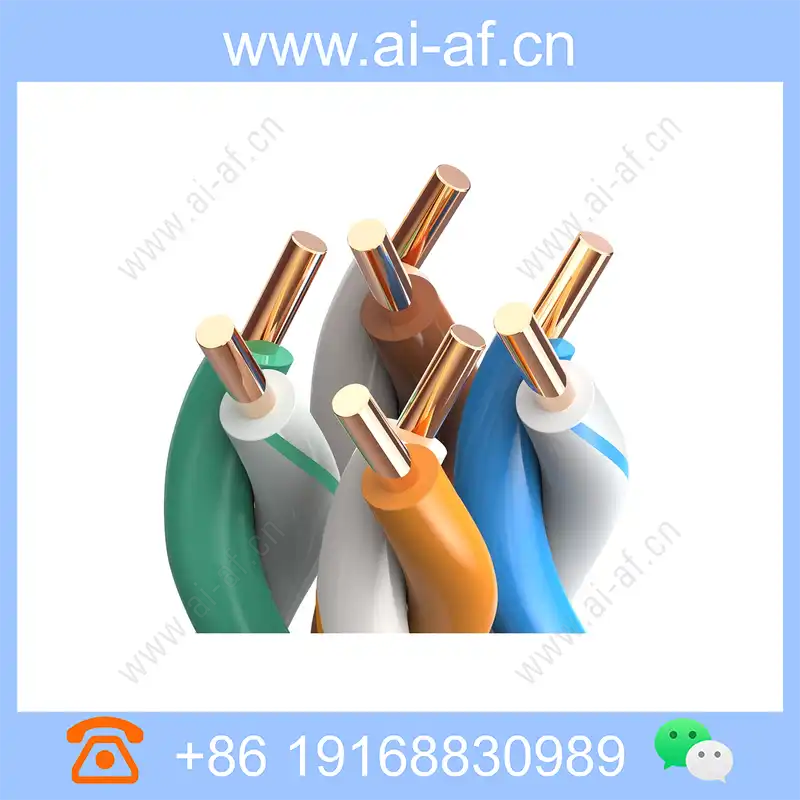

| conductor | Material: Oxygen-free copper Structure: Single strand Single strand diameter: ≥0.51mm AWG wire number: 24AWG Quantity: 4 to 8 wire Length: 305 meters |
| Insulation | Material: HDPE Thickness: 0.27mm Diameter: .1.02±0.05mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown |
| Quilt | Material: PVC Thickness: 0.55mm Outer diameter: 6.3±0.4mm Color: Gray |

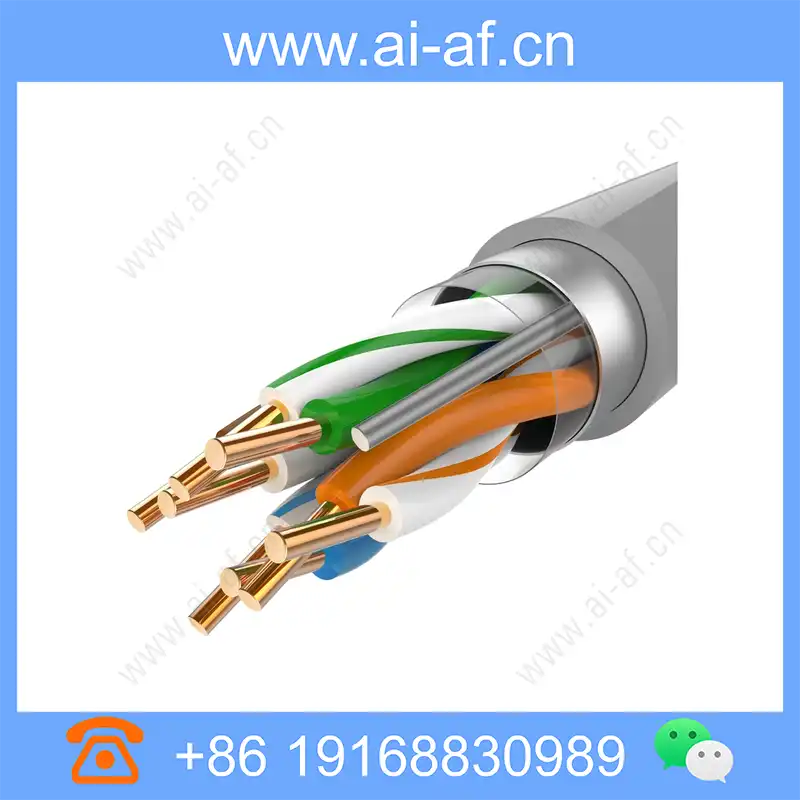

| other | Cross: none Tear rope: yes Drain line: yes Conductive aluminum foil: yes |
| Electrical performance | Transmission rate: 1000Mbps Operating frequency: 100MHz Characteristic impedance: 100Ω DC copper resistance: maximum 95Ω/km Insulation resistance: greater than 5000M Ω·Km Electrical strength: 1kVDC 1min without breakdown |
| Physical properties | Fire rating: None Tensile strength: ≥13.8MPa Elongation: ≥125% |
| Storage conditions | Temperature: -10~60°C Humidity: 30%~80% Storage life: 20 years at room temperature |

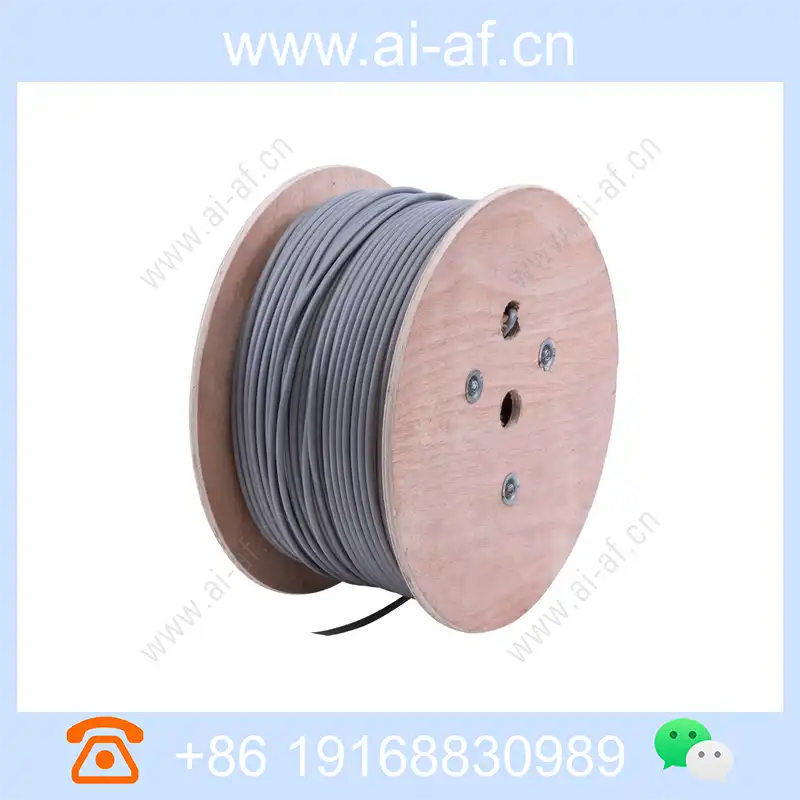

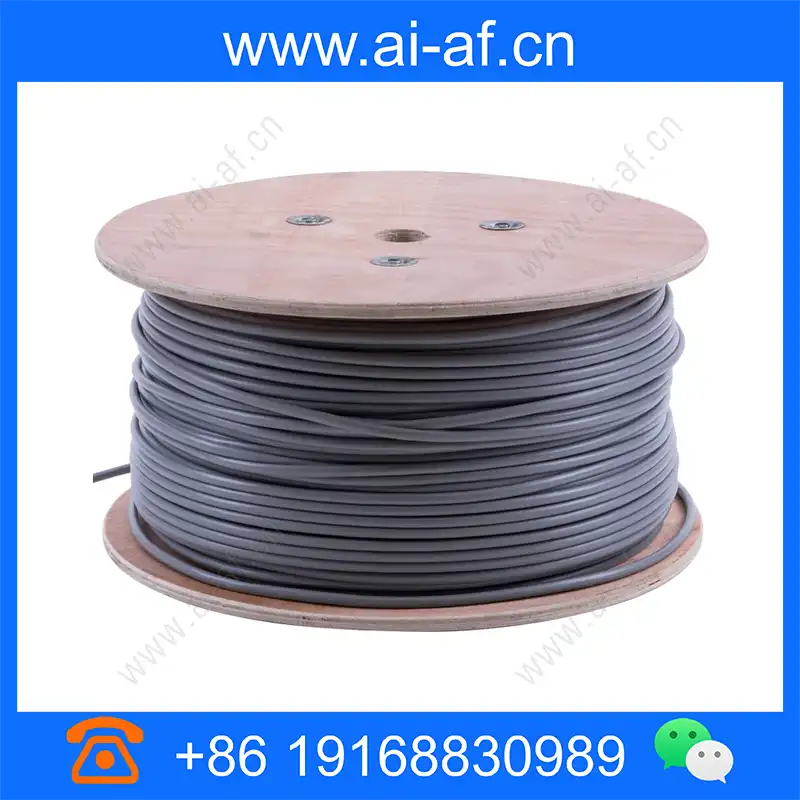

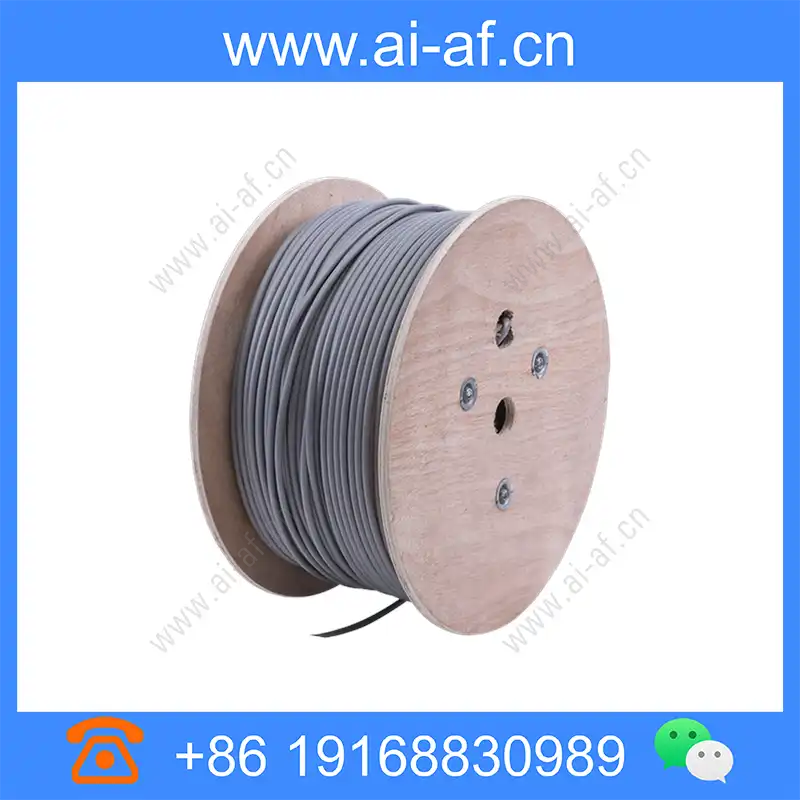

| package | Packing: wooden roller, roller diameter 370mm, height 175mm |
