TP-LINK TL-EC5E-100B Monitoring Special Network Engineering Cable(100 m)
Electrical and transmission performance standards ANSI/TIA-568-C.2 conductor Material: Oxygen-free copper Structure: Single strand Single strand diameter: 0.45±0.005mm Quantity: 4 to 8 wires Length: 100 meters Insulation Material: HDPE Diameter: 0.82mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown Quilt Material: PVC Outer diameter: 4.7mm Color: gray other Cross: None Tear Rope: Yes Electrical performance Transmission rate: 1000Mbps Working frequency: 100MHz Characteristic impedance: 100Ω DC copper resistance: 100Ω/km Insulation resistance: greater than 100M Ω·m Electric strength: 1kVDC 1min without breakdown Physical properties Tensile strength: ≥1.05 kg/mm² Elongation: ≥100% Storage conditions Temperature: -10~60°C Humidity: 30%~80% Storage life: 20
Technical Specifications
| Property Description | Property Value |
|---|---|
| Electrical and transmission performance standards | ANSI/TIA-568-C.2 |

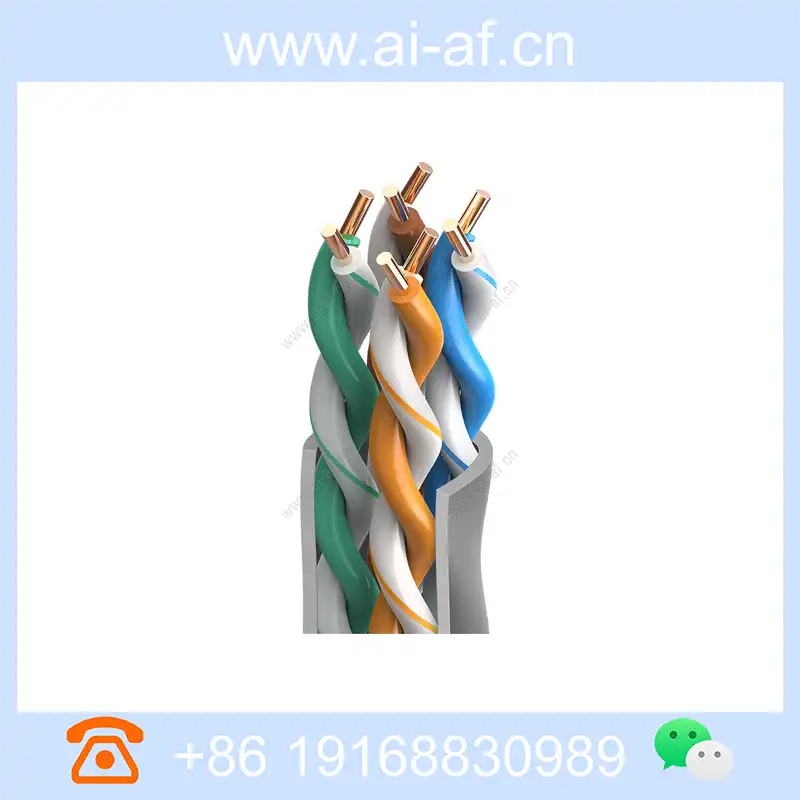

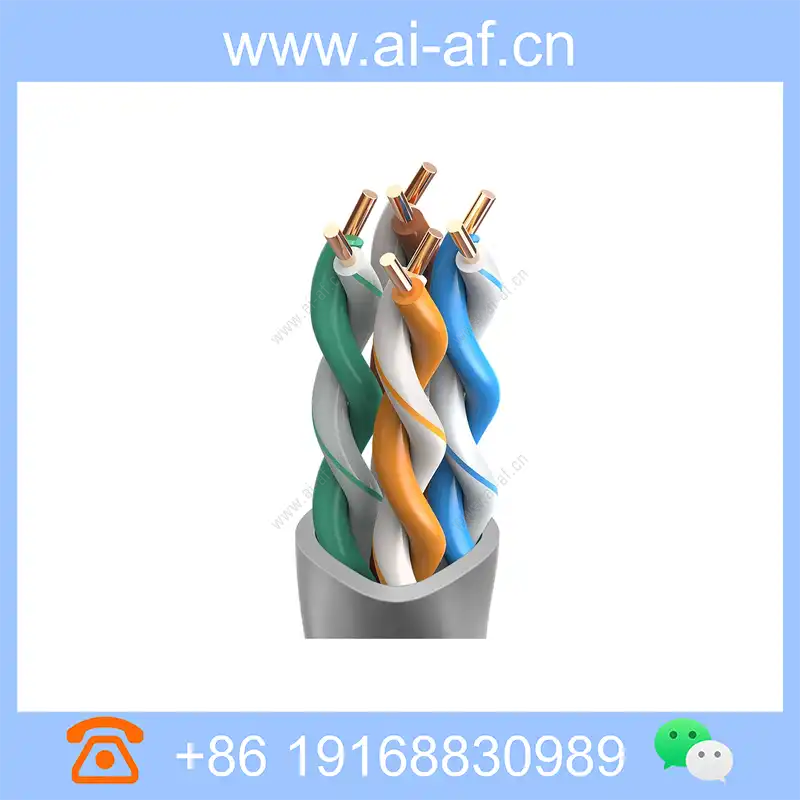

| conductor | Material: Oxygen-free copper Structure: Single strand Single strand diameter: 0.45±0.005mm Quantity: 4 to 8 wires Length: 100 meters |
| Insulation | Material: HDPE Diameter: 0.82mm Color: Orange White/Orange, Green White/Green, Blue White/Blue, Brown White/Brown |
| Quilt | Material: PVC Outer diameter: 4.7mm Color: gray |
| other | Cross: None Tear Rope: Yes |
| Electrical performance | Transmission rate: 1000Mbps Working frequency: 100MHz Characteristic impedance: 100Ω DC copper resistance: 100Ω/km Insulation resistance: greater than 100M Ω·m Electric strength: 1kVDC 1min without breakdown |
| Physical properties | Tensile strength: ≥1.05 kg/mm² Elongation: ≥100% |
| Storage conditions | Temperature: -10~60°C Humidity: 30%~80% Storage life: 20 years at room temperature |

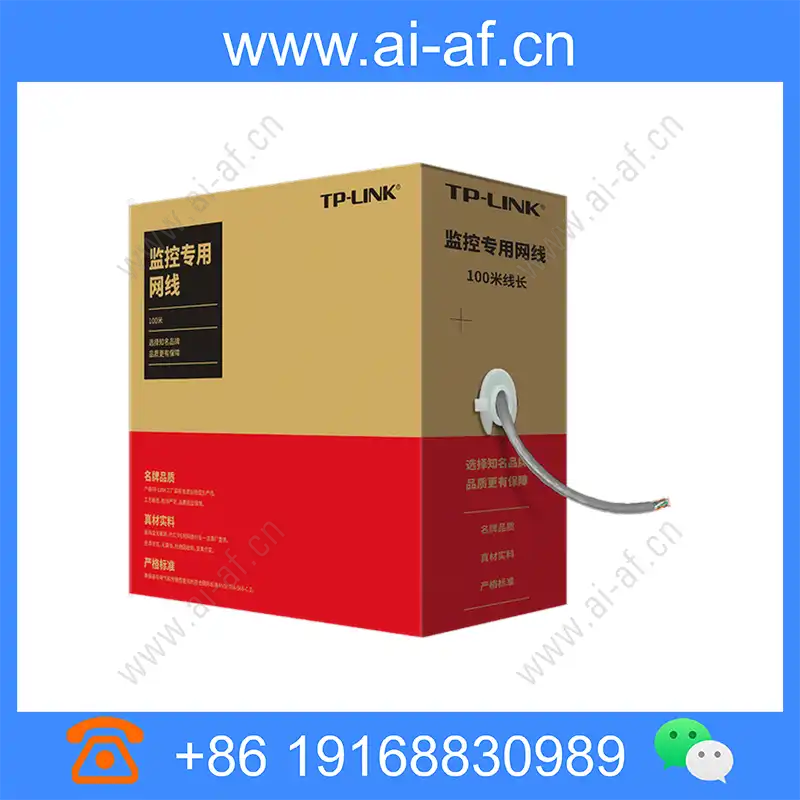

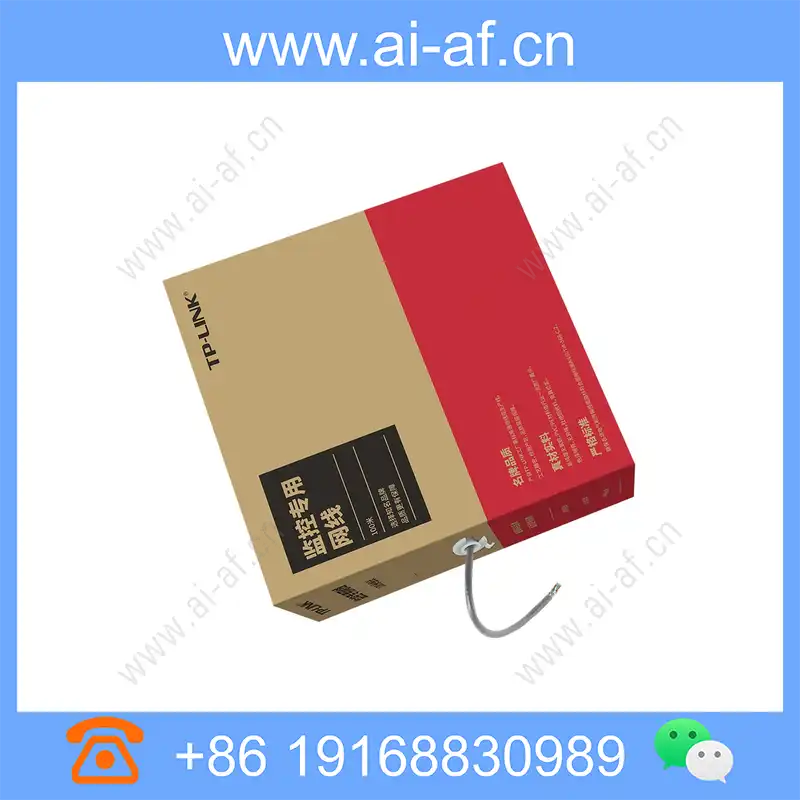

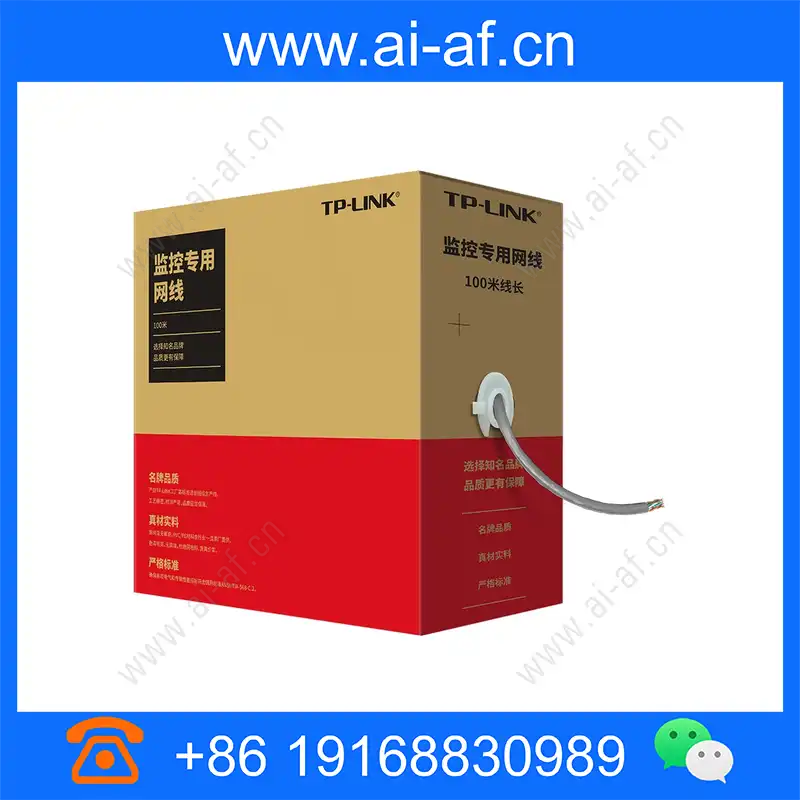

| package | Packing form: carton Internal structure: winding type, direct extraction from outlet hole Dimensions (L*W*H): 302.5*296.5*121.5 |
