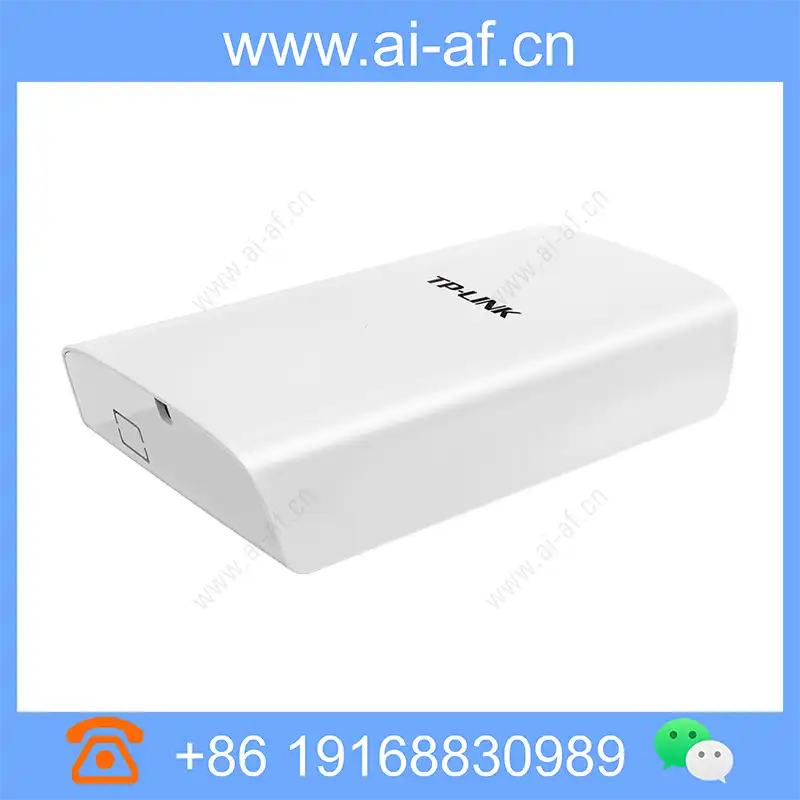

TP-LINK TL-AP1903GP AC1900 Dual Band Outdoor Wireless AP
Brand: TP-LINK
Model: TL-AP1903GP
Dimensions: 170mm x 100mm x 38.50mm
11AC dual-band concurrent, the highest wireless rate can reach 1900Mbps Gigabit network port, Gigabit SFP optical port, high-speed transmission, direct connection is convenient Built-in professional sector antenna, suitable for indoor/outdoor venue wireless coverage Professional outdoor shell design, waterproof and dustproof level up to IP55, working temperature up to -30℃~65℃, adapt to various harsh environments Automatic RF tuning to optimize overall performance Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Intelligent roaming to improve wireless experience (11r is not currently supported, and the software is updated recently) DC, 802.3at PoE and Passive PoE power supply, flexible layout Pole/wall installation
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1903GP |
| Installation method | Pole / wall mounting |
| size | 170x100x38.5mm |
| wireless | 2.4GHz band: 600Mbps 5GHz band: 1300Mbps |
| port | 1 10/100/1000Mbps RJ45 port 1 100/1000Mbps SFP interface (recommended to use industrial-grade optical modules with operating temperature above 85°C) 1 DC interface (RJ45 network port and SFP optical port are combo ports, when both Data is transmitted through the optical fiber port during simultaneous access) |
| antenna | Built-in sector antenna |
| Antenna coverage angle | >180° |
| Indicator light | 1 system indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | 53.5VDC/0.81A Passive PoE power supply, power supply distance up to 100M IEEE 802.3at standard PoE power supply 12-53.5V DC power supply (factory delivery DC power adapter and PoE power supply) |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management Support centralized management of TP-LINK commercial network cloud platform |
| Environmental protection | IP55 dustproof and waterproof (need to be installed vertically) |
| Use environment | Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Recommended coverage distance (open environment) | 2.4G: 250 meters; 5G: 400 meters (when used with different wireless terminals, the actual coverage distance may vary) |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit Weak signal equipment access: support |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
