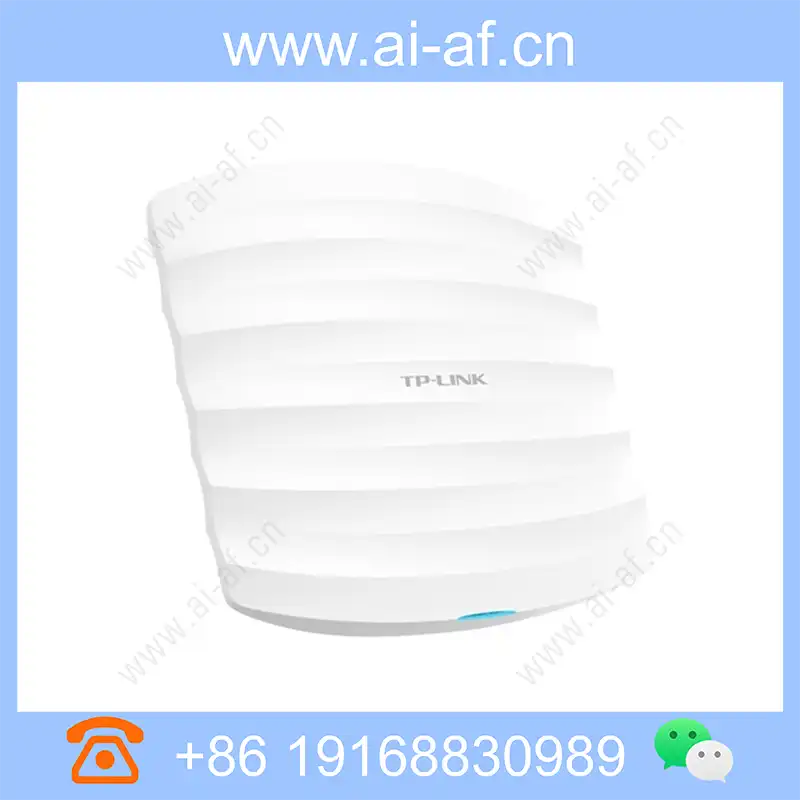

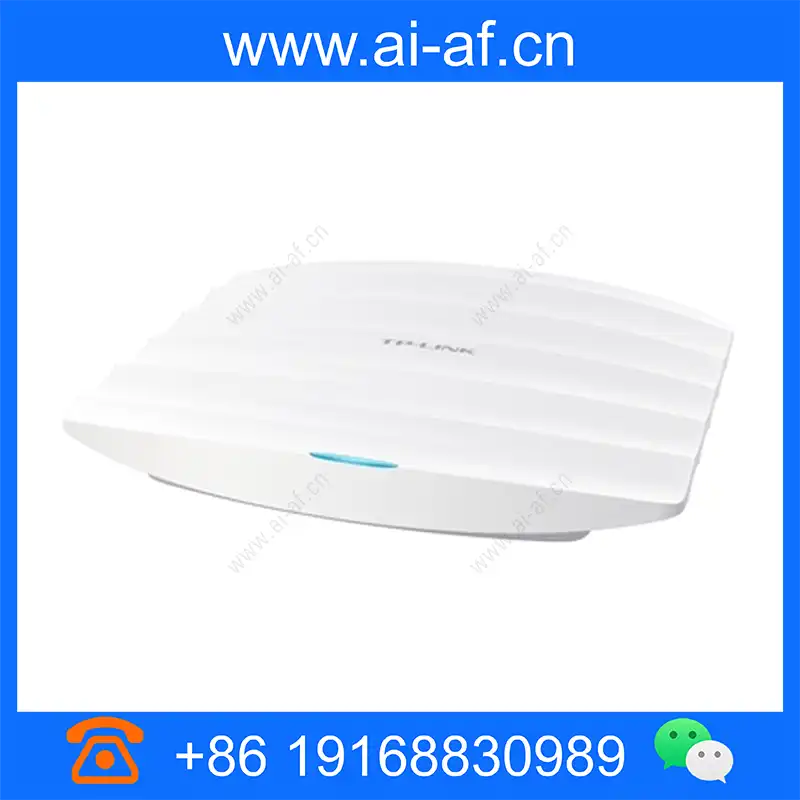

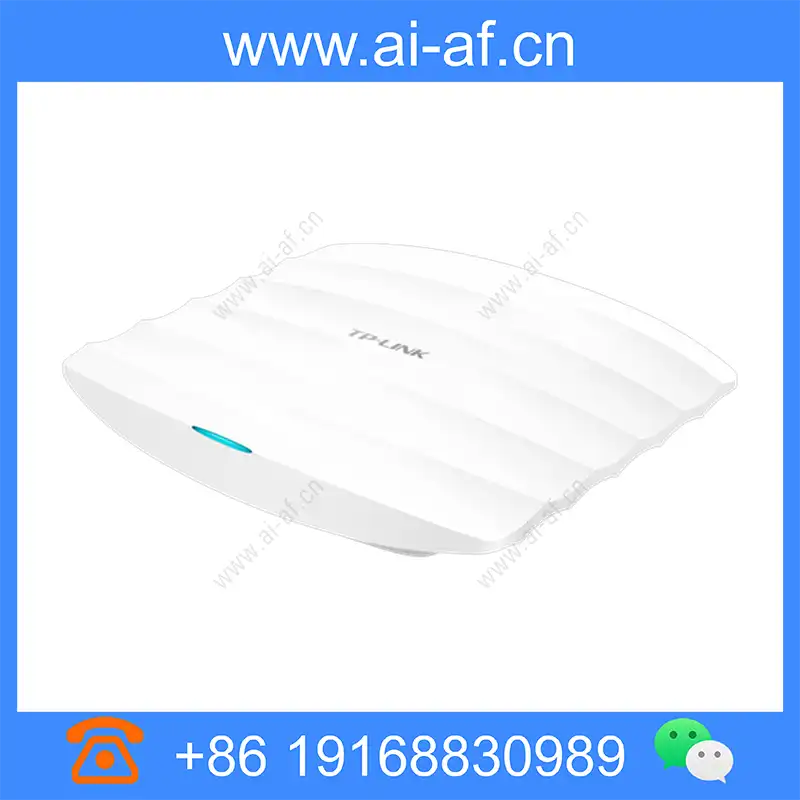

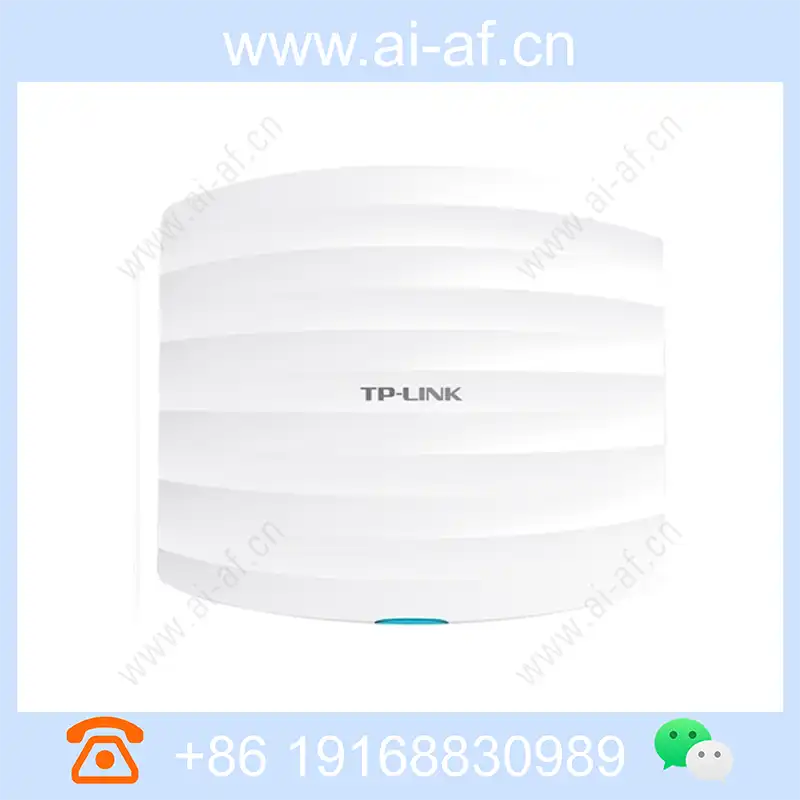

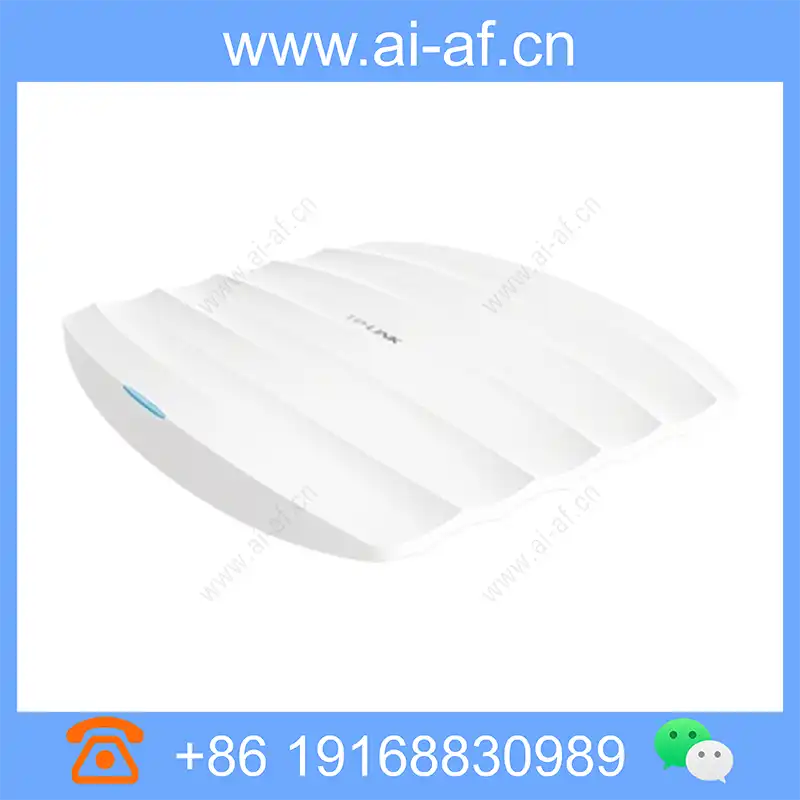

TP-LINK TL-AP1200GC-PoE/DC AC1200 dual-band wireless ceiling AP
Brand: TP-LINK
Model: TL-AP1200GC-POE_DC
Weight: 0.56kg
Dimensions: 280mm x 240mm x 70mm
11AC dual-band concurrent, the highest wireless rate can reach 1167Mbps The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve the signal quality of the coverage area Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Adopts Wave2 MU-MIMO technology to effectively improve the data transmission efficiency and realize high-speed Internet access from multiple terminals simultaneously Simple ceiling installation, supports 802.3af/at standard PoE, 12VDC power supply Fat and thin, choose different working modes in different environments Independent hardware
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| model | TL-AP1200GC-PoE/DC |
| name | AC1200 dual-band wireless ceiling AP |
| Bare metal size (length x width x height) | 190x170x30mm (without mounting parts) |
| Packing size (length x width x height) | 280x240x70mm |
| Bare metal weight | 0.56kg (single set, without accessories and packaging) |
| Total weight | 0.65kg (single set, including accessories and packaging) |
| interface | 1 10/100/1000Mbps rate adaptive Ethernet interface 1 DC power interface |
| Indicator light | 1 system indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | IEEE 802.3af/at standard PoE power supply DC power supply: 12V |
| Maximum power consumption | PoE power supply maximum power consumption 11.4W DC power supply maximum power consumption 10.9W |
| Operating temperature | 0°C~40°C |
| Working humidity | 10%~90%RH non-condensing |
| storage temperature | -40°C~70°C |
| Storage humidity | 5%~90%RH non-condensing |
| Antenna type | Built-in omniDirectional antenna |
| Installation method | Ceiling installation Wall-mounted installation |
| wireless function | IEEE 802.11a/n/ac, IEEE 802.11b/g/n wireless protocols, the highest wireless rate is 1167Mbps: 300Mbps in 2.4GHz frequency band, 867Mbps in 5GHz frequency band Beamforming 2x2 MU-MIMO Maximum Combining Ratio (MRC) Space-time packet Code (STBC) Cyclic Delay/Cyclic Shift Diversity (CDD/CSD) LDPC Low Density Parity Check Maximum Likelihood Decoding (MLD) Wireless Speed-up Parameters (ShortGI) SSID Broadcast/No SSID Number: 2.4G: 8; 5G :8 Chinese SSID, including GB2312, UTF-8 encoding to set the host network and employee network channel bandwidth settings. 2.4G: 20M/40MHz/auto; 5G: 20M/40M/80MHz/automatic dynamic channel selection (DCS) Wi-Fi multi-frequency integration FIT mode spectrum navigation transmission power setting: Lv1-Lv10, 1dBm step length wireless network isolation , AP internal isolation Beacon time slot setting weak signal equipment to eliminate weak signal equipment is prohibited to access IEEE 802.11k/v/r protocol intelligent roaming automatic radio frequency tuning WMM: priority-based data processing and forwarding WDS function wireless client limit |
| Network characteristics | Rate and duplex mode auto-negotiation, automatic MDI/MDI-X CAPWAP interrupt service in FIT mode, AC dual link backup in FIT mode, LLDP link discovery, VLAN division based on SSID of user access, management VLAN, IP address intelligence obtained through DHCP DHCP server FAT mode DHCPv6, IPv6 address access, radiusv6 authentication and other functions FIT mode CAPWAPv6, Wportalv6 authentication, DHCPv6 protection and other functions |
| cyber security | FIT mode Portal authentication, MAC address authentication WPA, WPA2, WPA-PSK, WPA2-PSK encryption Whitelist management Accessible devices SSID and Tag VLAN binding FIT mode broadcast storm suppression FIT mode DHCP protection FIT mode ARP protection |
| Management method | FIT mode wireless controller (AC) unified management FAT mode independent web page management NMS commercial cloud platform centralized management TP-LINK network management system centralized management |
| System Management | User name/password management system log view/download/send server manual setting/NTP server synchronization time backup configuration import configuration restore factory settings restart device local online upgrade, local firmware upgrade, cloud upgrade Ping watchdog function, abnormal device automatically recover first aid Mode, abnormal device enters the first aid page to upgrade the firmware |
