TP-LINK TL-ANTDB12MS30-4N 2.4GHz & 5GHz 12dBi & 10dBi 4 N-Head 30° Direction Antenna

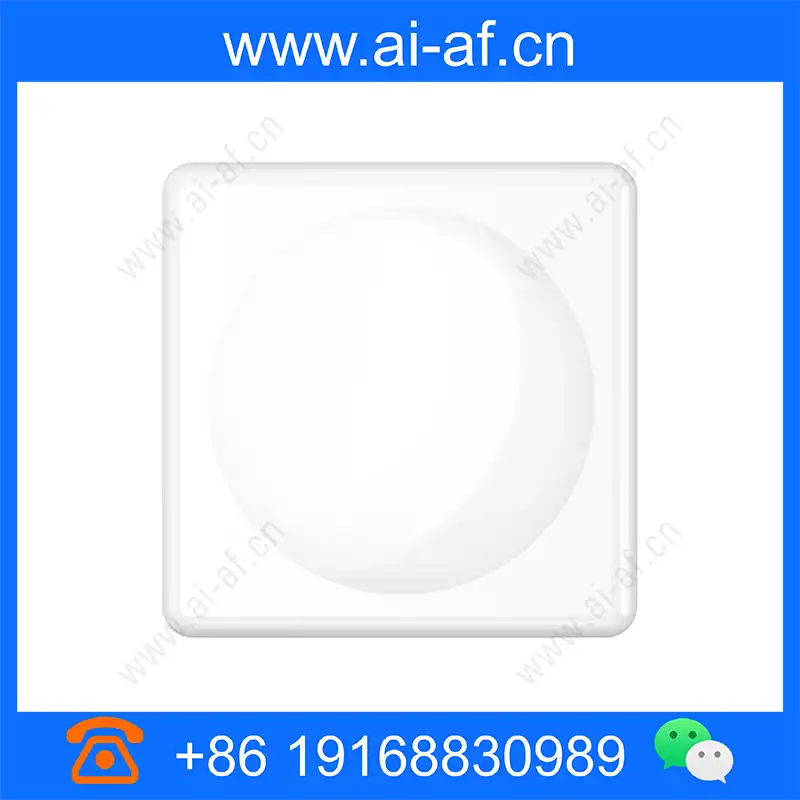

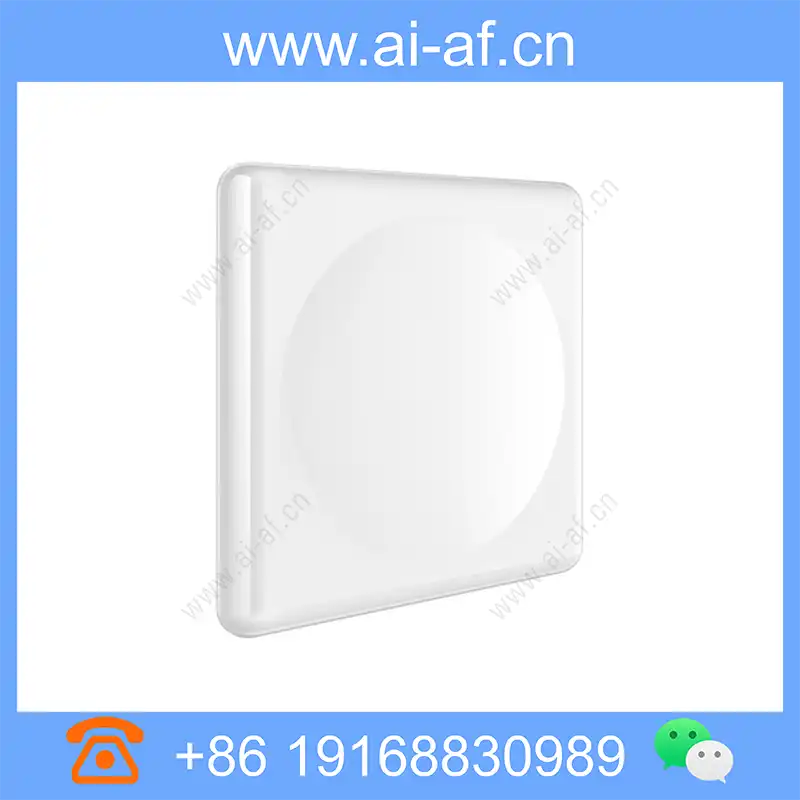

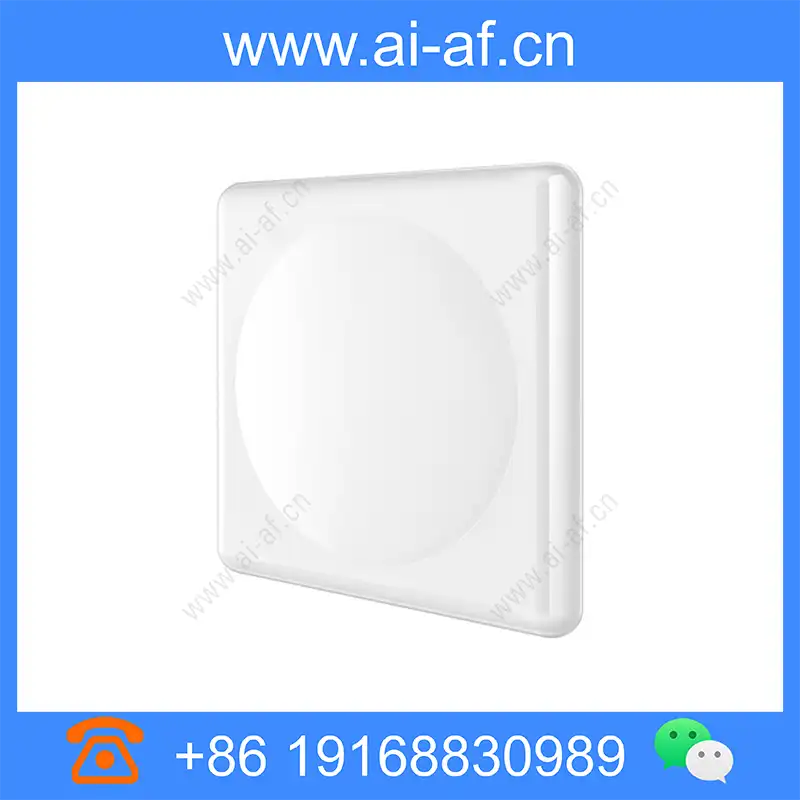

2.4GHz 5GHz dual-band antenna, used with TP-LINK outdoor wireless AP products, can be used for outdoor multi-scenario wireless signal coverage 12dBi 10dBi gain, horizontal coverage angle can reach 30° 2×2 MIMO design, horizontal and vertical dual polarization Outdoor use, providing mounting brackets, 4 N-type connectors plug and play, easy maintenance *The picture on the left is the outline diagram, the actual number of joints is subject to the product description and the actual product 2.4GHz and 5GHz dual-frequency Directional antenna TL-ANTDB12MS30-4N adopts 2×2 MIMO technology, horizontal and vertical dual polarization design, 2.4GHz gain up to 12dBi, 5GHz gain up to 10dBi. It can be used with TP-LINK outdoor wireless AP products to support outdoor long-distance signal coverage, and
Product Features
2.4GHz and 5GHz dual-frequency Directional antenna TL-ANTDB12MS30-4N adopts 2×2 MIMO technology, horizontal and vertical dual polarization design, 2.4GHz gain up to 12dBi, 5GHz gain up to 10dBi. It can be used with TP-LINK outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 30°. TL-ANTDB12MS30-4N has 4 N-type connectors (2 2.4G, 2 5G), and provides a mounting base for fixed antenna installation, ready to use, and easy to maintain. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 2.4-2.5GHz 5.15-5.85GHz |
| Gain | 2.4GHz:12dBi 5GHz:10dBi |
| Standing wave ratio | ≤2 |
| Horizontal lobe width | 30° |
| Vertical lobe width | 60° |
| MIMO number | 2x2 |
| Polarization mode | Vertical and horizontal dual polarization |
| input resistance | 50Ω |
| Connector model | N-F |
| Product Size | 268x268x25mm |
| range of working temperature | -40°C~65°C |
| Protection class | IP64 |
| Installation method | Pole mounting |
