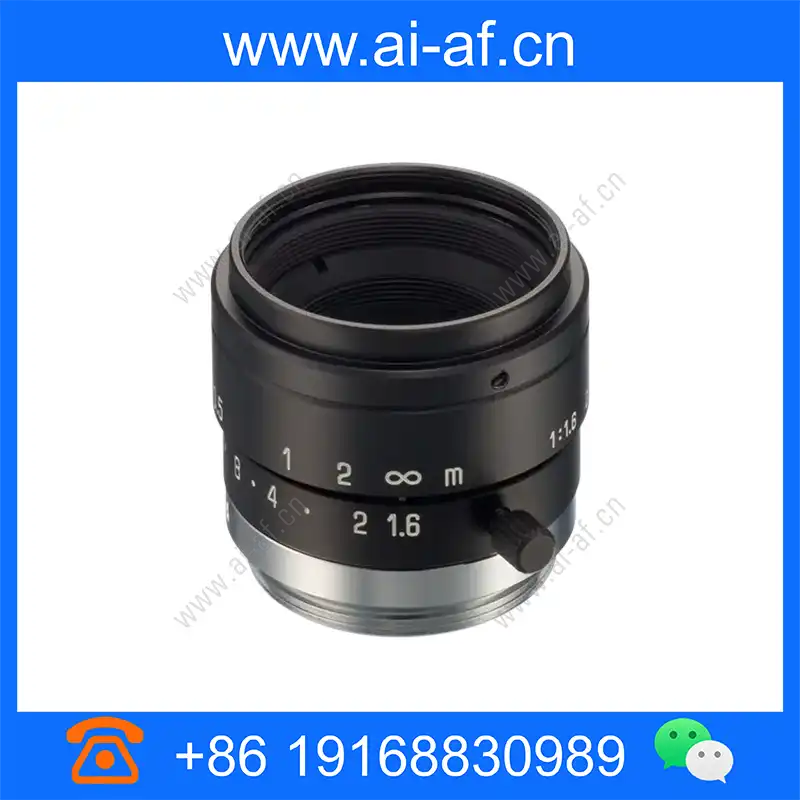

TAMRON 20HC 2/3" 25mm F/1.6-16 Manual Iris Machine Vision Lens C Mount

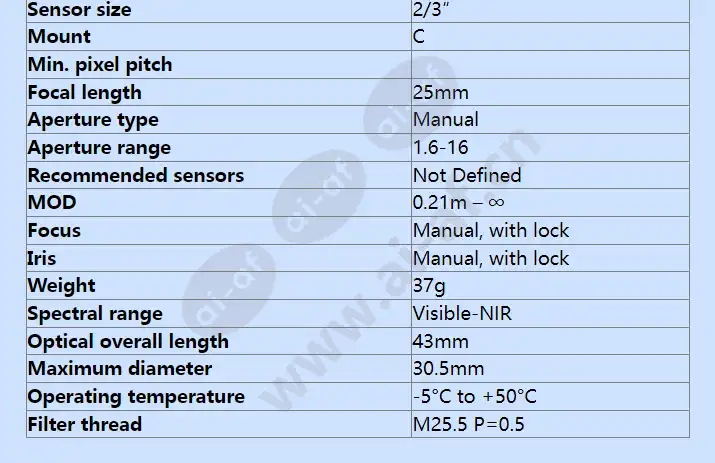

Machine Vision lens 20HC The Tamron HR Series is a collection of lightweight, high-transmission machine vision lenses designed for 2/3″ sensors, with focal lengths from 6.5mm to 75mm. Known for reliability and precision, these lenses have been trusted for over 35 years. Sensor Size 2/3″ Focal Length 25mm Aperture Range 1.6-16 Iris Manual, with lock Product specification Attribute Value Name 20HC Sensor size 2/3″ Mount C Min. pixel pitch Focal length 25mm Aperture type Manual Aperture range 1.6-16 Recommended sensors Not Defined MOD 0.21m – ∞ Focus Manual, with lock Iris Manual, with lock Weight 37g Spectral range Visible-NIR Optical overall length 43mm Maximum diameter 30.5mm Operating temperature -5°C to +50°C Filter thread M25.5 P=0.5
