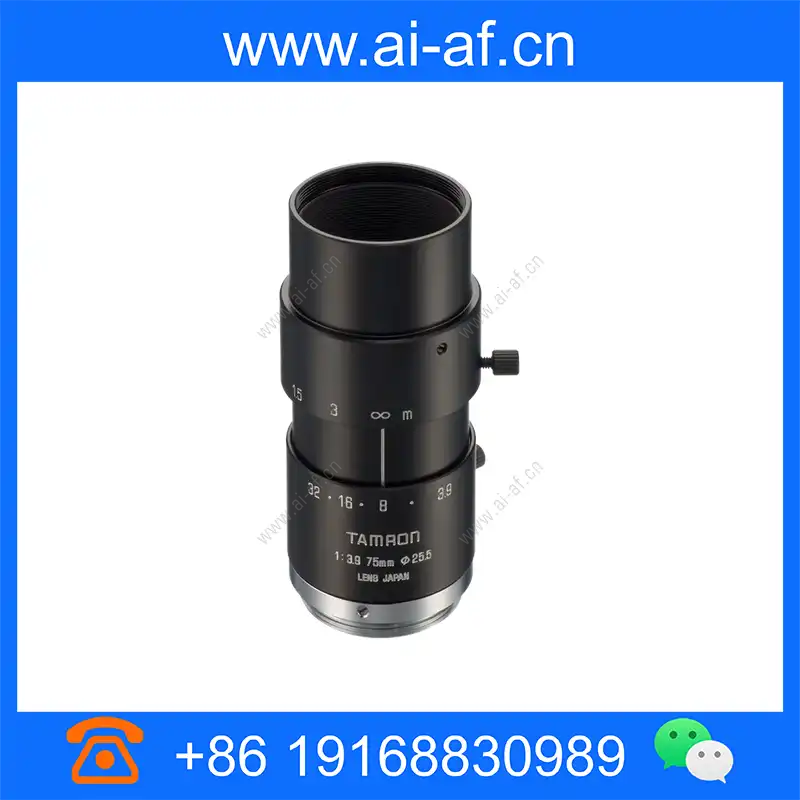

TAMRON 1A1HB 2/3" 75mm F/3.9-32 Manual Iris Machine Vision Lens C Mount

Machine Vision lens 1A1HB The Tamron HR Series is a collection of lightweight, high-transmission machine vision lenses designed for 2/3″ sensors, with focal lengths from 6.5mm to 75mm. Known for reliability and precision, these lenses have been trusted for over 35 years. Sensor Size 2/3" Focal Length 75mm Aperture Range 3.9-32 Iris Manual, with lock Product specification Attribute Value Name 1A1HB Sensor size 2/3″ Mount C Min. pixel pitch Focal length 75mm Aperture type Manual Aperture range 3.9-32 Recommended sensors Not Defined MOD 0.5m – ∞ Focus Manual, with lock Iris Manual, with lock Weight 68g Spectral range Visible-NIR Optical overall length 83mm Maximum diameter 27.5mm Operating temperature -10°C to +70°C Filter thread M25.5 P=0.5
