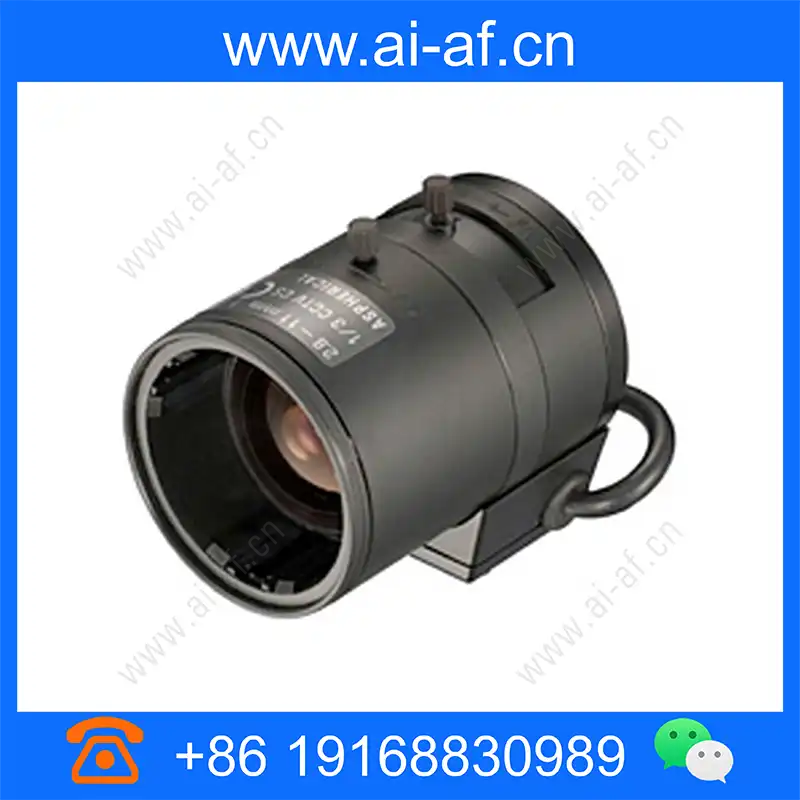

TAMRON 13VG2811ASIR 1/3" 2.8-11mm F/1.4-360 DC Auto-Iris CCTV Lens CS Mount

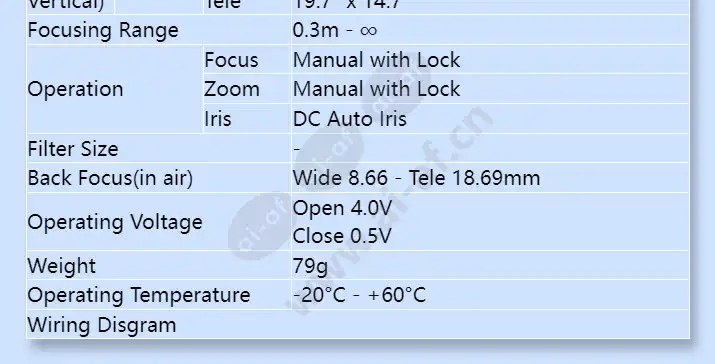

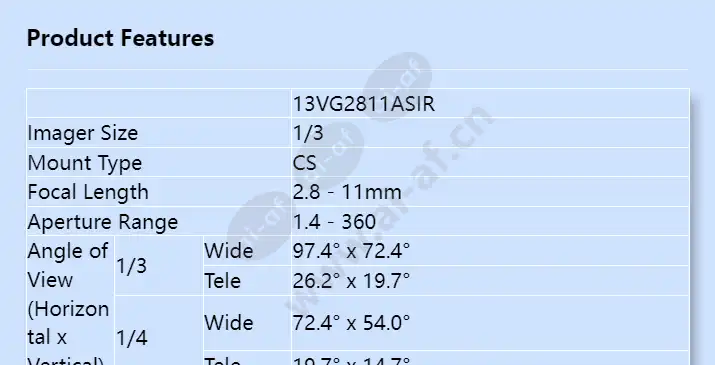

13VG2811ASIR Imager Size 1/3 Mount Type CS Focal Length 2.8 - 11mm Aperture Range 1.4 - 360 Angle of View (Horizontal x Vertical) 1/3 Wide 97.4° x 72.4° Tele 26.2° x 19.7° 1/4 Wide 72.4° x 54.0° Tele 19.7° x 14.7° Focusing Range 0.3m - ∞ Operation Focus Manual with Lock Zoom Manual with Lock Iris DC Auto Iris Filter Size - Back Focus(in air) Wide 8.66 - Tele 18.69mm Operating Voltage Open 4.0V Close 0.5V Weight 79g Operating Temperature -20°C - +60°C Wiring Disgram
