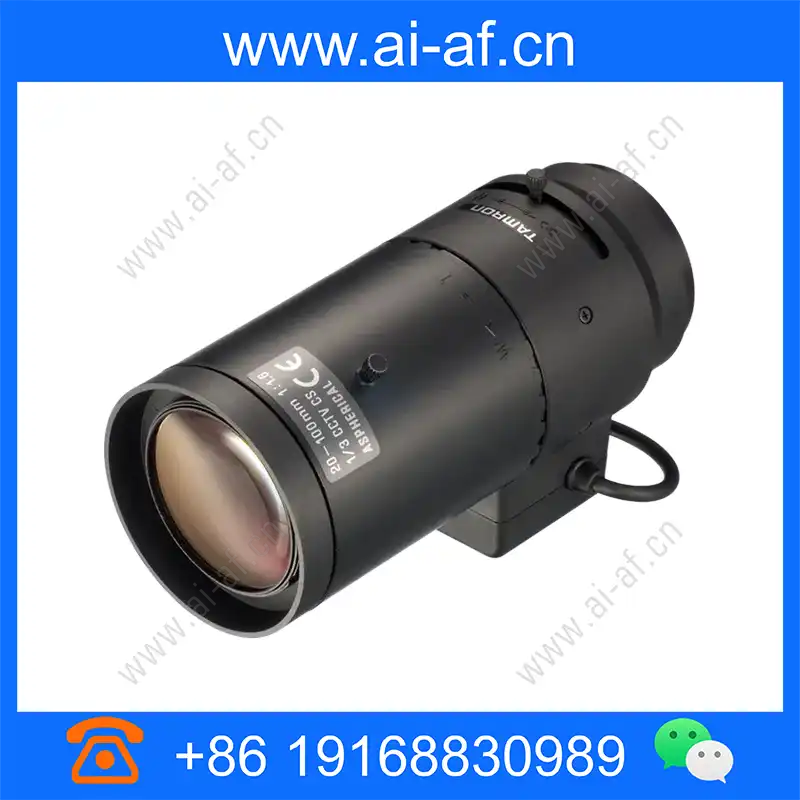

TAMRON 13VG20100AS 1/3" 20-100mm F/1.6-360 DC Auto-Iris CCTV Lens CS Mount

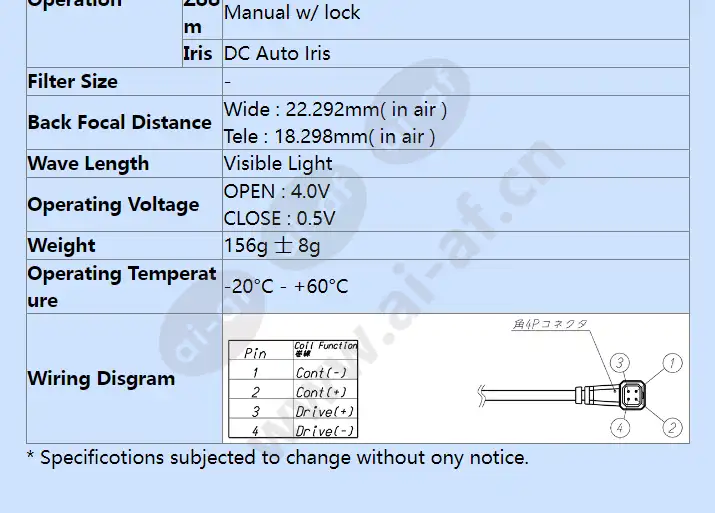

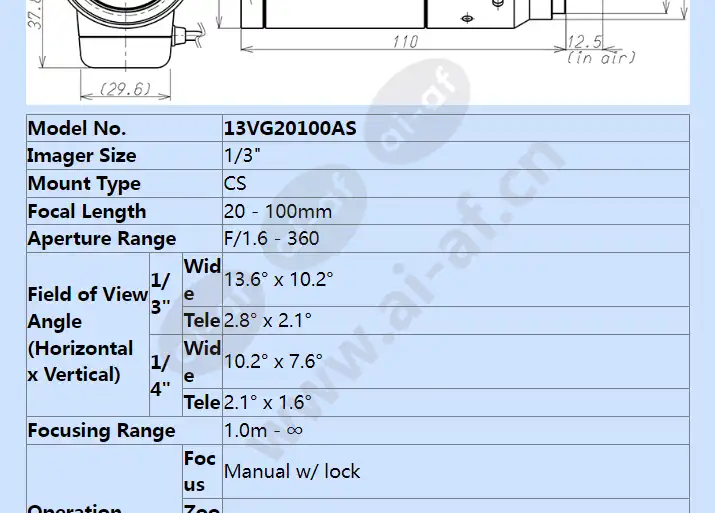

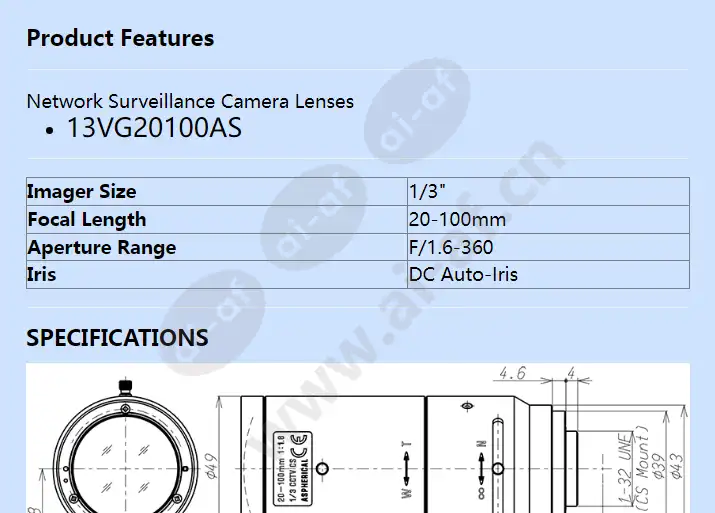

Network Surveillance Camera Lenses 13VG20100AS Imager Size 1/3" Focal Length 20-100mm Aperture Range F/1.6-360 Iris DC Auto-Iris SPECIFICATIONS Model No. 13VG20100AS Imager Size 1/3" Mount Type CS Focal Length 20 - 100mm Aperture Range F/1.6 - 360 Field of View Angle (Horizontal x Vertical) 1/3" Wide 13.6° x 10.2° Tele 2.8° x 2.1° 1/4" Wide 10.2° x 7.6° Tele 2.1° x 1.6° Focusing Range 1.0m - ∞ Operation Focus Manual w/ lock Zoom Manual w/ lock Iris DC Auto Iris Filter Size - Back Focal Distance Wide : 22.292mm( in air ) Tele : 18.298mm( in air ) Wave Length Visible Light Operating Voltage OPEN : 4.0V CLOSE : 0.5V Weight 156g 士 8g Operating Temperature -20°C - +60°C Wiring Disgram * Specificotions subjected to change without ony notice.
