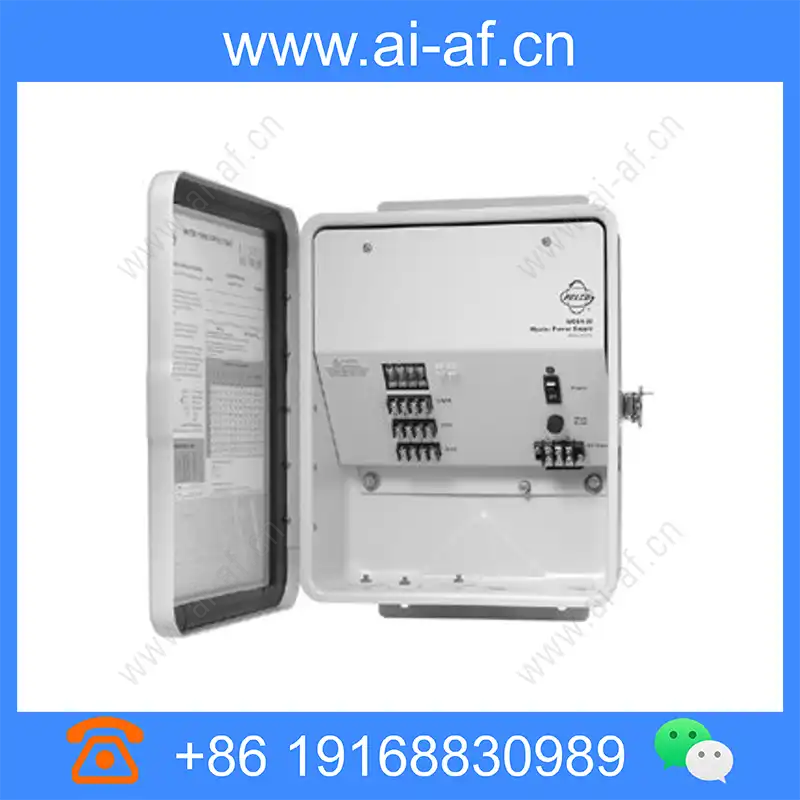

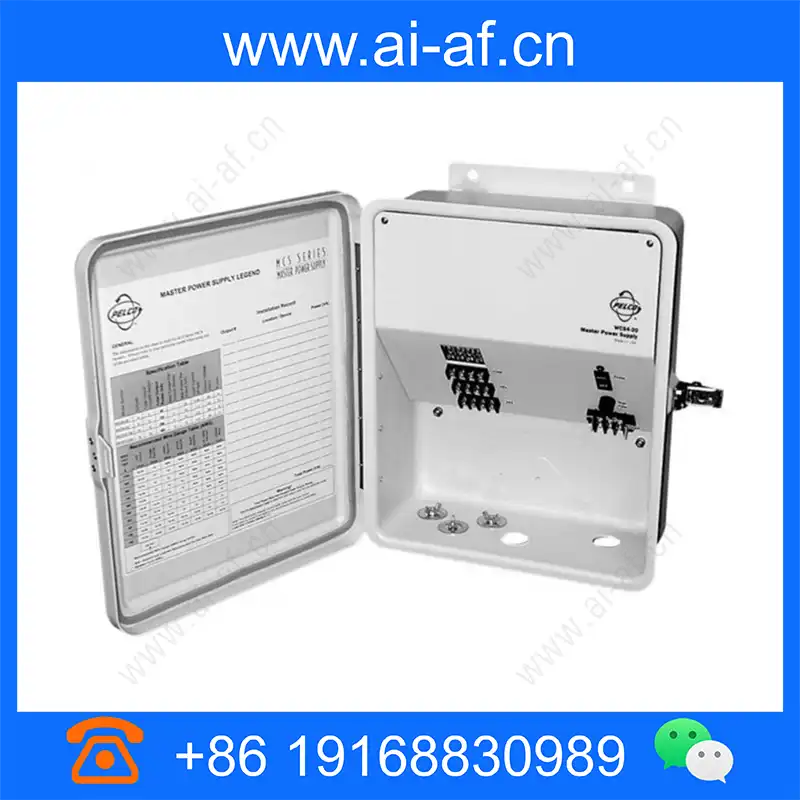

Pelco WCS4-20B Outdoor Multiple Camera Power Supply 20 Amp 4 Output Breaker None

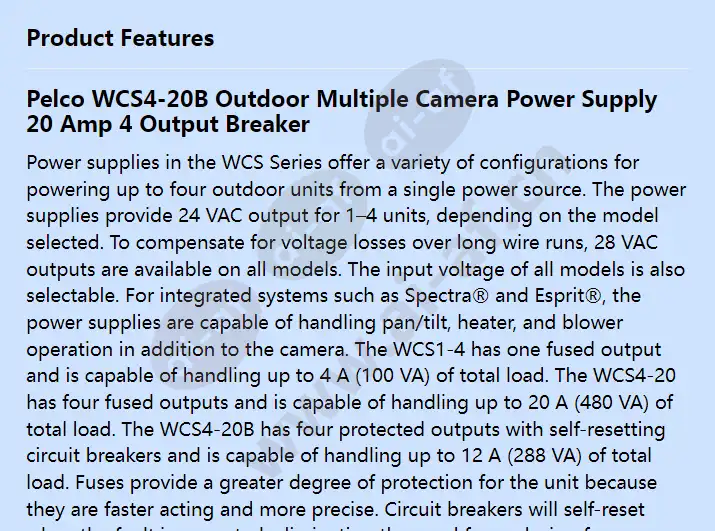

Pelco WCS4-20B Outdoor Multiple Camera Power Supply 20 Amp 4 Output Breaker Power supplies in the WCS Series offer a variety of configurations for powering up to four outdoor units from a single power source. The power supplies provide 24 VAC output for 1–4 units, depending on the model selected. To compensate for voltage losses over long wire runs, 28 VAC outputs are available on all models. The input voltage of all models is also selectable. For integrated systems such as Spectra® and Esprit®, the power supplies are capable of handling pan/tilt, heater, and blower operation in addition to the camera. The WCS1-4 has one fused output and is capable of handling up to 4 A (100 VA) of total load. The WCS4-20 has four fused outputs and is capable of handling up to 20 A (480 VA) of total load.
