Pelco WCS4-20 Four (4) Output Outdoor-rated CCTV Power Supply Unit None

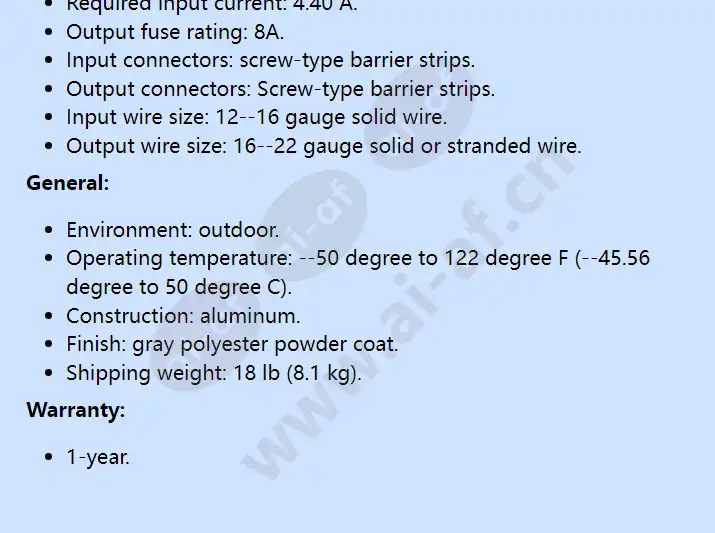

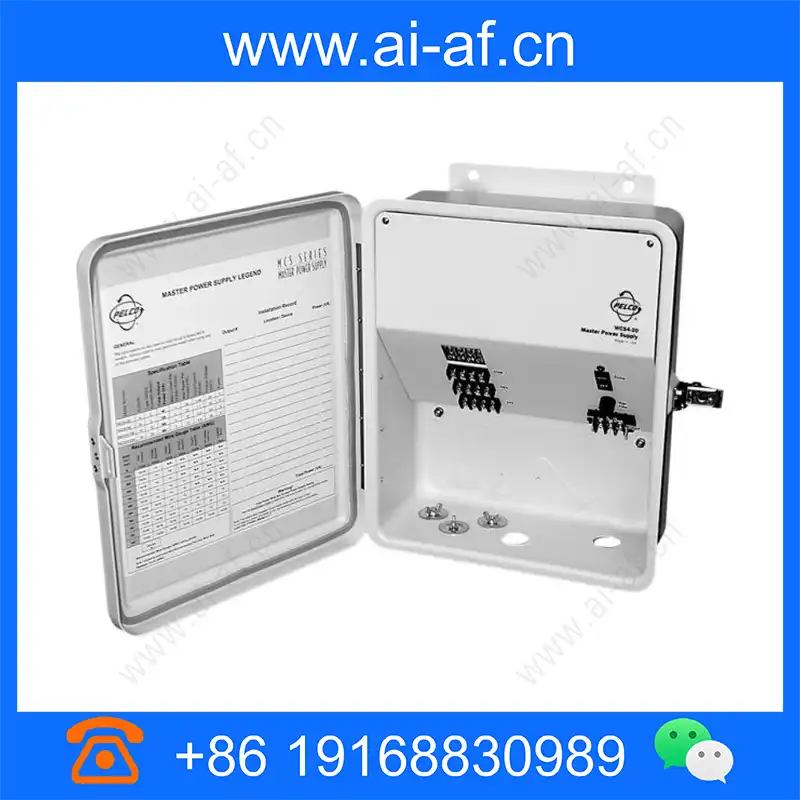

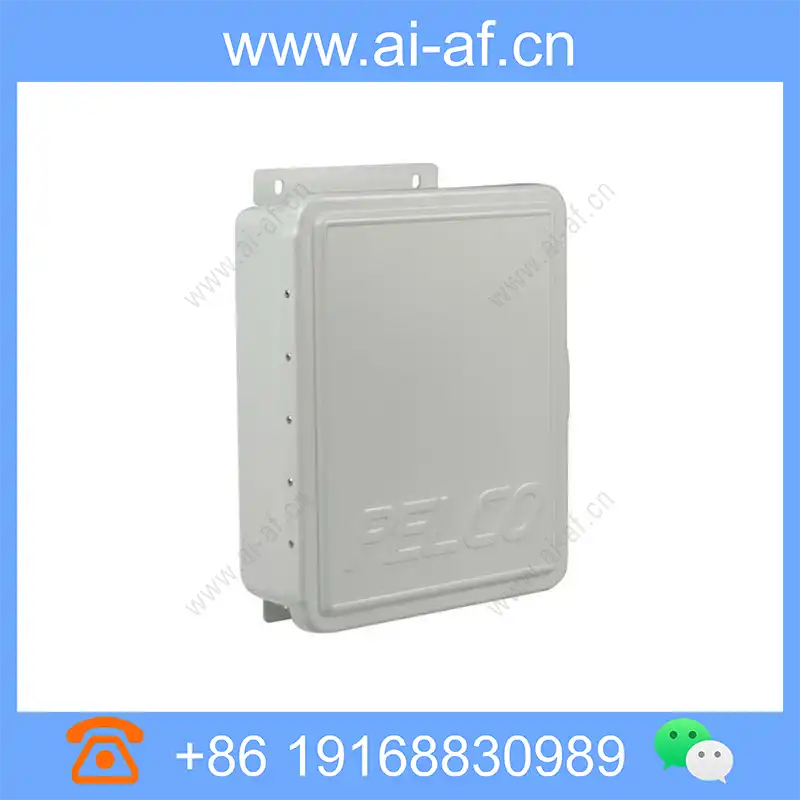

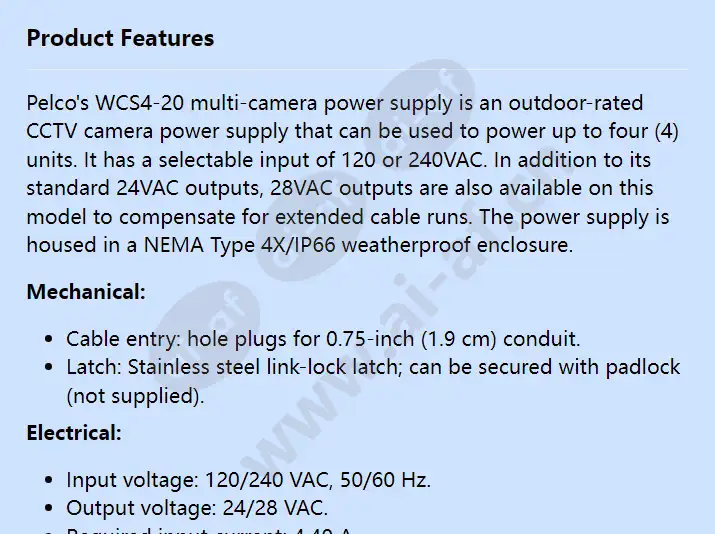

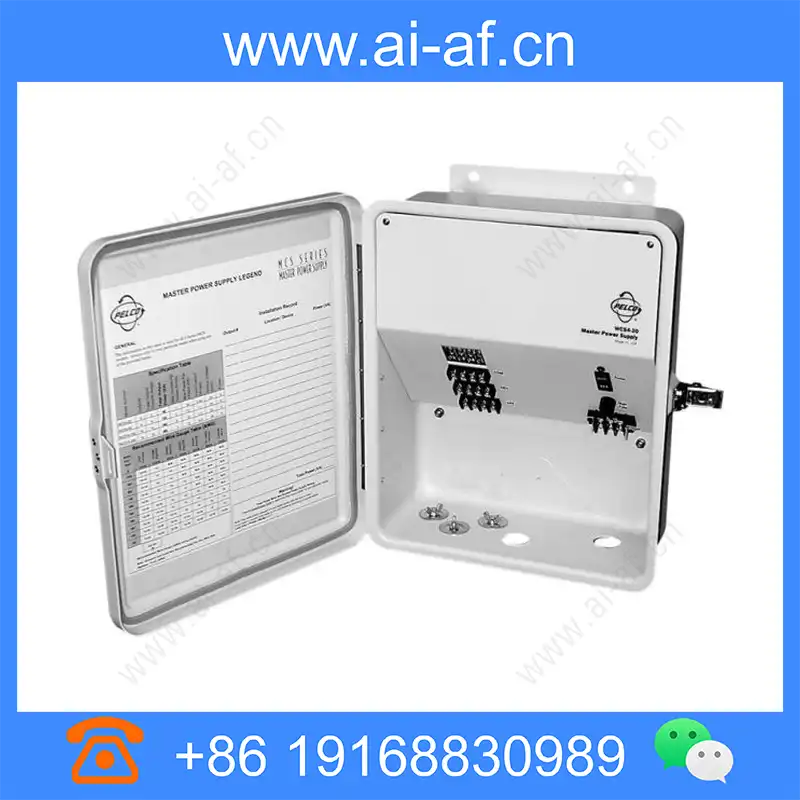

Pelco's WCS4-20 multi-camera power supply is an outdoor-rated CCTV camera power supply that can be used to power up to four (4) units. It has a selectable input of 120 or 240VAC. In addition to its standard 24VAC outputs, 28VAC outputs are also available on this model to compensate for extended cable runs. The power supply is housed in a NEMA Type 4X/IP66 weatherproof enclosure. Mechanical: Cable entry: hole plugs for 0.75-inch (1.9 cm) conduit. Latch: Stainless steel link-lock latch; can be secured with padlock (not supplied). Electrical: Input voltage: 120/240 VAC, 50/60 Hz. Output voltage: 24/28 VAC. Required input current: 4.40 A. Output fuse rating: 8A. Input connectors: screw-type barrier strips. Output connectors: Screw-type barrier strips. Input wire size: 12--16 gauge solid wire.
