Pelco POE1XT IEEE802.3at Single Port PoE Extender None

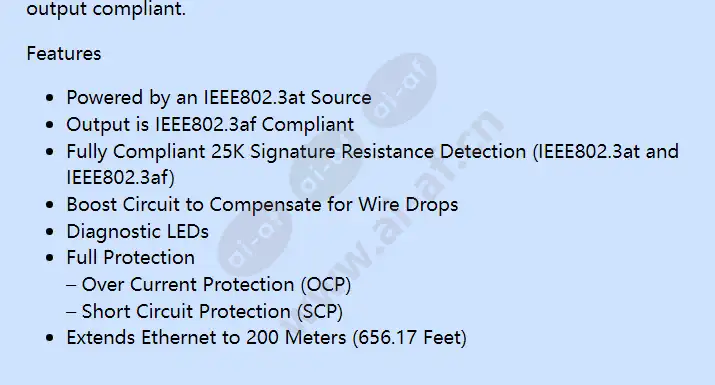

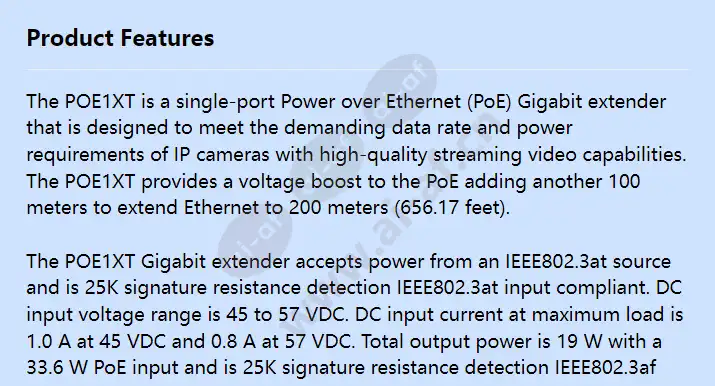

The POE1XT is a single-port Power over Ethernet (PoE) Gigabit extender that is designed to meet the demanding data rate and power requirements of IP cameras with high-quality streaming video capabilities. The POE1XT provides a voltage boost to the PoE adding another 100 meters to extend Ethernet to 200 meters (656.17 feet). The POE1XT Gigabit extender accepts power from an IEEE802.3at source and is 25K signature resistance detection IEEE802.3at input compliant. DC input voltage range is 45 to 57 VDC. DC input current at maximum load is 1.0 A at 45 VDC and 0.8 A at 57 VDC. Total output power is 19 W with a 33.6 W PoE input and is 25K signature resistance detection IEEE802.3af output compliant. Features Powered by an IEEE802.3at Source Output is IEEE802.3af Compliant Fully Compliant 25K
