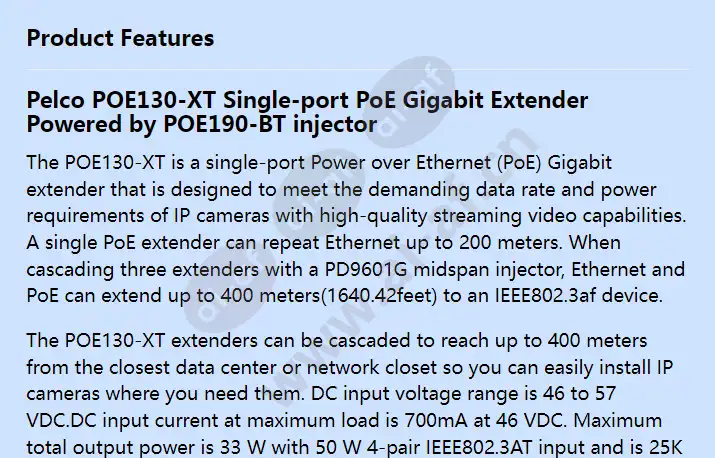

Pelco POE130-XT Single-port PoE Gigabit Extender Powered by POE190-BT injector The POE130-XT is a single-port Power over Ethernet (PoE) Gigabit extender that is designed to meet the demanding data rate and power requirements of IP cameras with high-quality streaming video capabilities. A single PoE extender can repeat Ethernet up to 200 meters. When cascading three extenders with a PD9601G midspan injector, Ethernet and PoE can extend up to 400 meters(1640.42feet) to an IEEE802.3af device. The POE130-XT extenders can be cascaded to reach up to 400 meters from the closest data center or network closet so you can easily install IP cameras where you need them. DC input voltage range is 46 to 57 VDC.DC input current at maximum load is 700mA at 46 VDC. Maximum total output power is 33 W with
