Pelco KBD300A PTZ Keyboard Joystick Control

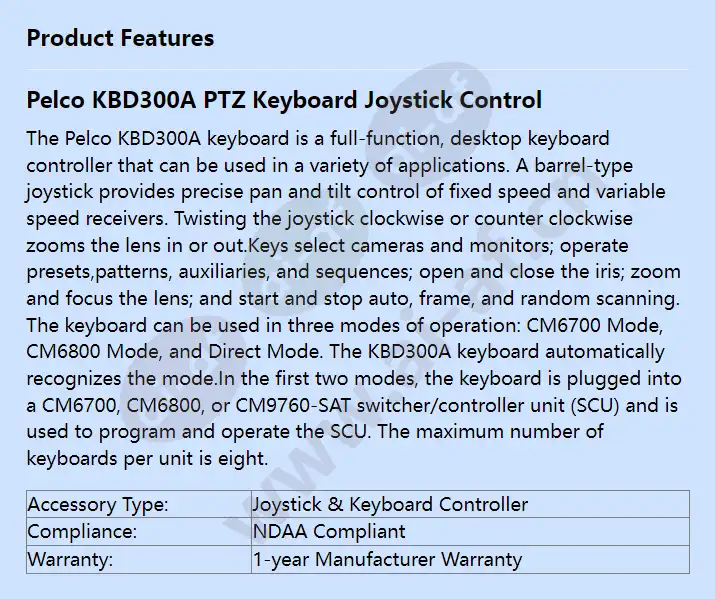

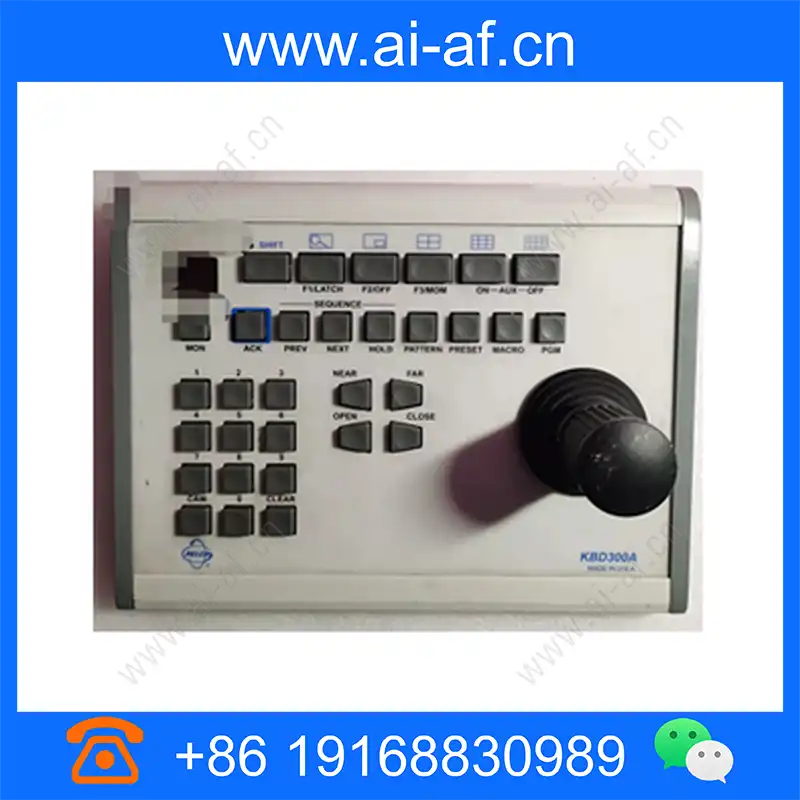

Pelco KBD300A PTZ Keyboard Joystick Control The Pelco KBD300A keyboard is a full-function, desktop keyboard controller that can be used in a variety of applications. A barrel-type joystick provides precise pan and tilt control of fixed speed and variable speed receivers. Twisting the joystick clockwise or counter clockwise zooms the lens in or out.Keys select cameras and monitors; operate presets,patterns, auxiliaries, and sequences; open and close the iris; zoom and focus the lens; and start and stop auto, frame, and random scanning. The keyboard can be used in three modes of operation: CM6700 Mode, CM6800 Mode, and Direct Mode. The KBD300A keyboard automatically recognizes the mode.In the first two modes, the keyboard is plugged into a CM6700, CM6800, or CM9760-SAT switcher/controller
