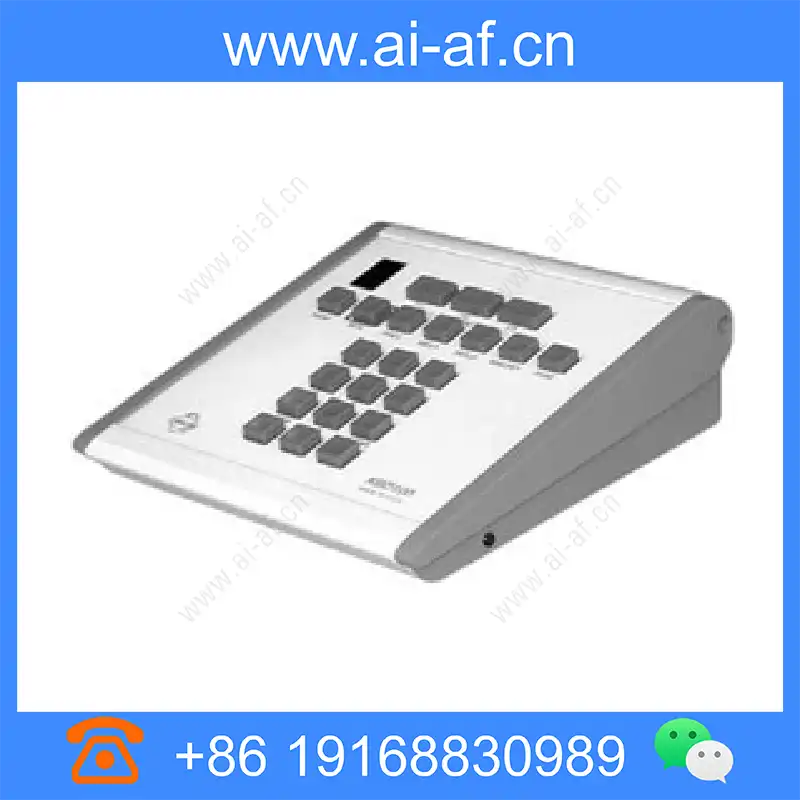

Pelco KBD100 Economical Switcher Control Keypad

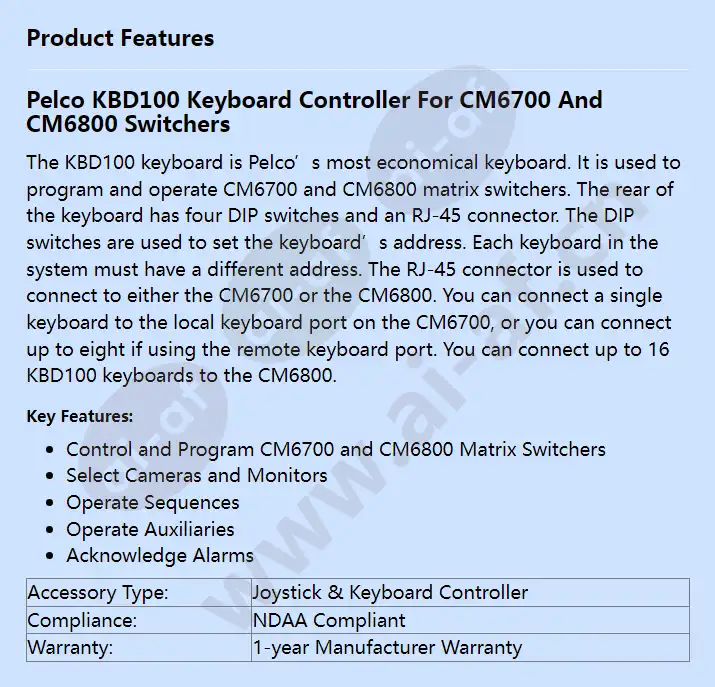

Pelco KBD100 Keyboard Controller For CM6700 And CM6800 Switchers The KBD100 keyboard is Pelco’s most economical keyboard. It is used to program and operate CM6700 and CM6800 matrix switchers. The rear of the keyboard has four DIP switches and an RJ-45 connector. The DIP switches are used to set the keyboard’s address. Each keyboard in the system must have a different address. The RJ-45 connector is used to connect to either the CM6700 or the CM6800. You can connect a single keyboard to the local keyboard port on the CM6700, or you can connect up to eight if using the remote keyboard port. You can connect up to 16 KBD100 keyboards to the CM6800. Key Features: Control and Program CM6700 and CM6800 Matrix Switchers Select Cameras and Monitors Operate Sequences Operate Auxiliaries Acknowledge
