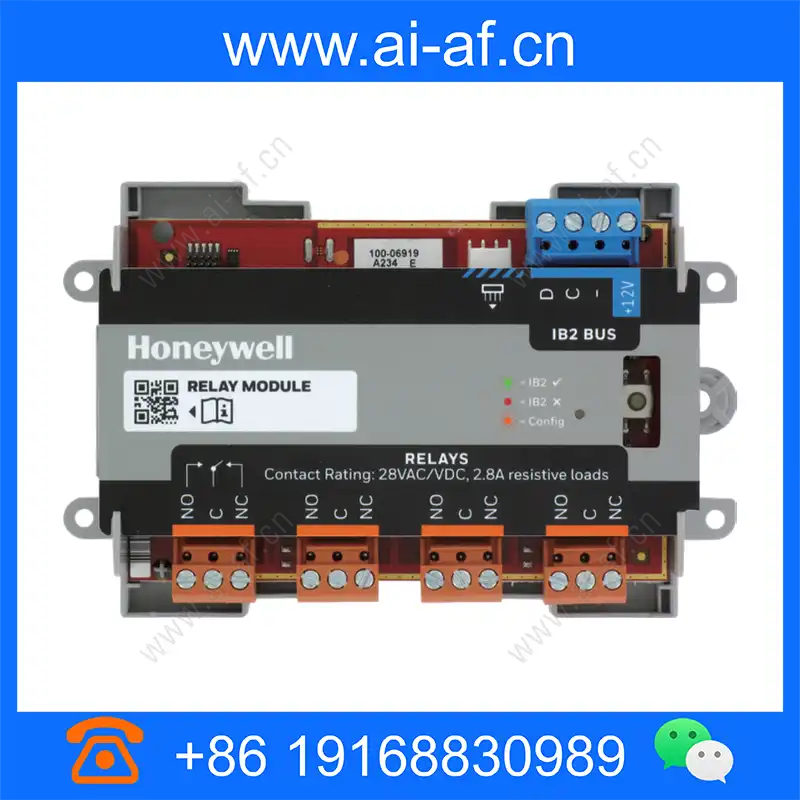

Honeywell MPIEOP4 MPI Series Relay Output Module

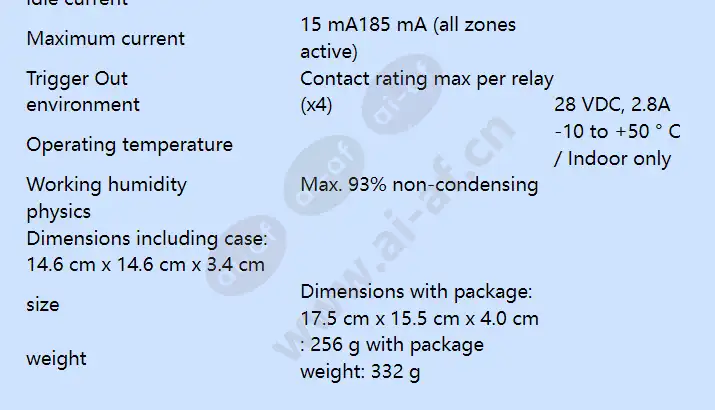

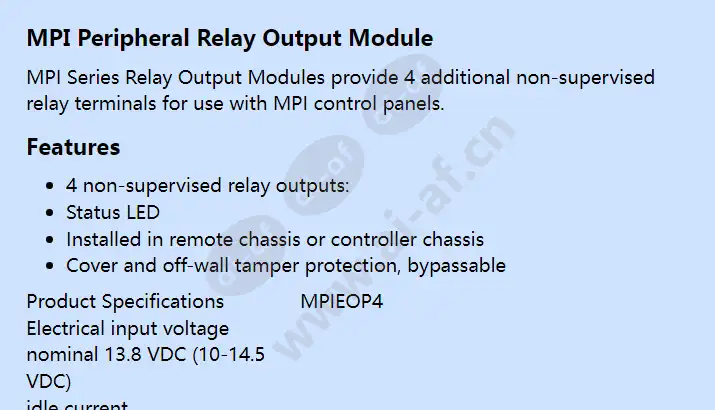

MPI Peripheral Relay Output Module MPI Series Relay Output Modules provide 4 additional non-supervised relay terminals for use with MPI control panels. Features 4 non-supervised relay outputs: Status LED Installed in remote chassis or controller chassis Cover and off-wall tamper protection, bypassable Product Specifications MPIEOP4 Electrical input voltage nominal 13.8 VDC (10-14.5 VDC) idle current Maximum current 15 mA185 mA (all zones active) Trigger Out Contact rating max per relay environment (x4) 28 VDC, 2.8A Operating temperature -10 to +50 ° C / Indoor only Working humidity Max. 93% non-condensing physics Dimensions including case: 14.6 cm x 14.6 cm x 3.4 cm size Dimensions with package: 17.5 cm x 15.5 cm x 4.0 cm weight : 256 g with package weight: 332 g
