Honeywell MPIEIO84E MPI Series Zone Expander Module

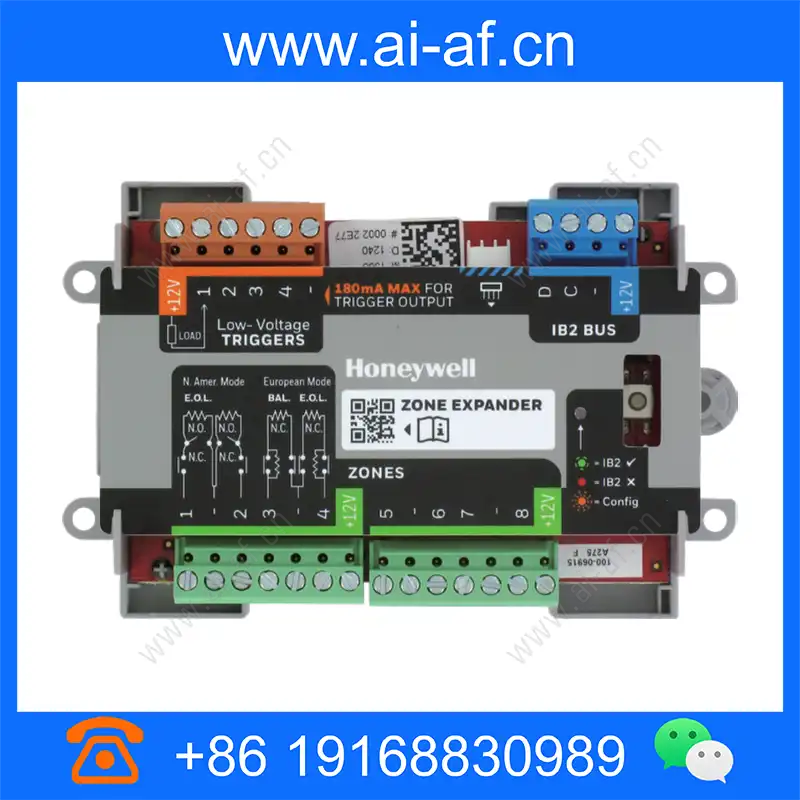

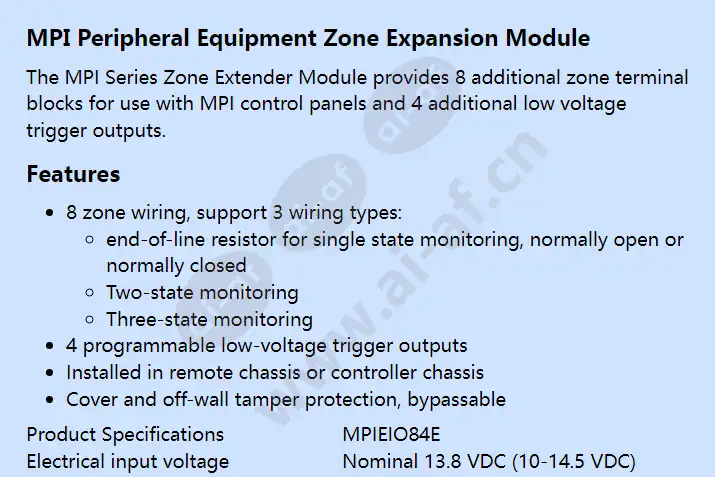

MPI Peripheral Equipment Zone Expansion Module The MPI Series Zone Extender Module provides 8 additional zone terminal blocks for use with MPI control panels and 4 additional low voltage trigger outputs. Features 8 zone wiring, support 3 wiring types: end-of-line resistor for single state monitoring, normally open or normally closed Two-state monitoring Three-state monitoring 4 programmable low-voltage trigger outputs Installed in remote chassis or controller chassis Cover and off-wall tamper protection, bypassable Product Specifications MPIEIO84E Electrical input voltage Nominal 13.8 VDC (10-14.5 VDC) idle current Maximum current 35 mA60 mA (all zones active) Zone (input x 8) Voltage Resistance Tolerance Trigger Out (x4) 1% max. Trigger output voltage 13.7 VDC (0 VDC switching) maximum
