Samsung Hanwha SCU-9051 Weatherproof Thermal Positioning System

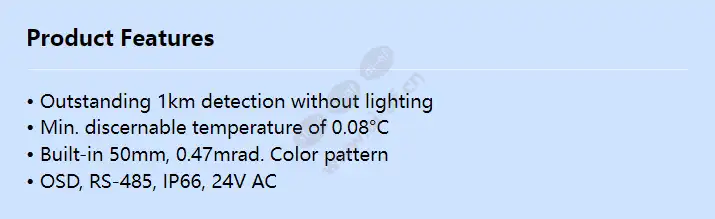

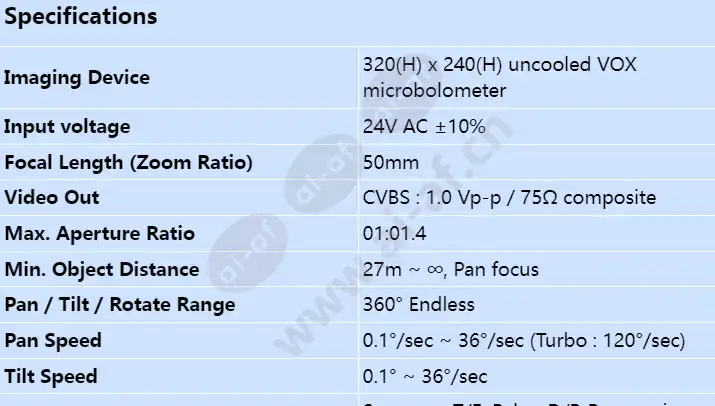

• Outstanding 1km detection without lighting • Min. discernable temperature of 0.08°C • Built-in 50mm, 0.47mrad. Color pattern • OSD, RS-485, IP66, 24V AC Imaging Device 320(H) x 240(H) uncooled VOX microbolometer Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 50mm Max. Aperture Ratio 01:01.4 Angular Field of View 8.6° x 6.5° Min. Object Distance 27m ~ ∞, Pan focus Pan / Tilt / Rotate Range 360° Endless Pan Range 0.1° ~ 120°/sec Pan Speed 0.1°/sec ~ 36°/sec (Turbo : 120°/sec) Tilt Range -85° ~ 40° Tilt Speed 0.1° ~ 36°/sec Rotate Range 0.1°/sec ~ 36°/sec Sequence 255 Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Vicon, Honeywell, AD, GE, Bosch Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -50°C ~ +50°C (-58°F ~ +122°F) Storage Temperature
