Samsung Hanwha SCU-2370 37x High Resolution Weatherproof Positioning System

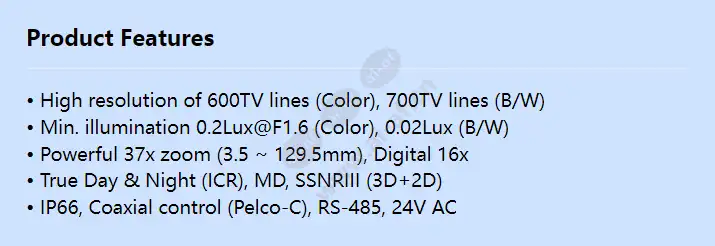

• High resolution of 600TV lines (Color), 700TV lines (B/W) • Min. illumination 0.2Lux@F1.6 (Color), 0.02Lux (B/W) • Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x • True Day & Night (ICR), MD, SSNRIII (3D+2D) • IP66, Coaxial control (Pelco-C), RS-485, 24V AC Imaging Device 1/4" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3.5 ~ 129.5mm Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele) Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele) Min. Object Distance 1.5m Lens Type DC Auto Iris Pan / Tilt / Rotate Range 360° Endless Pan Range 0.1° ~ 120°/sec Pan Speed 0.1°/sec ~ 36°/sec (Turbo :
