Samsung Hanwha SCD-6080 2MP HD-SDI Dome Camera

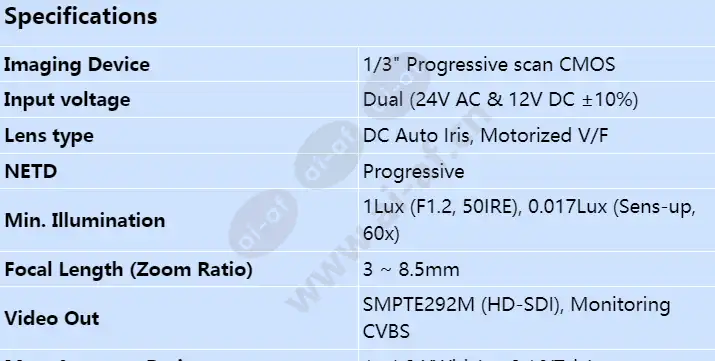

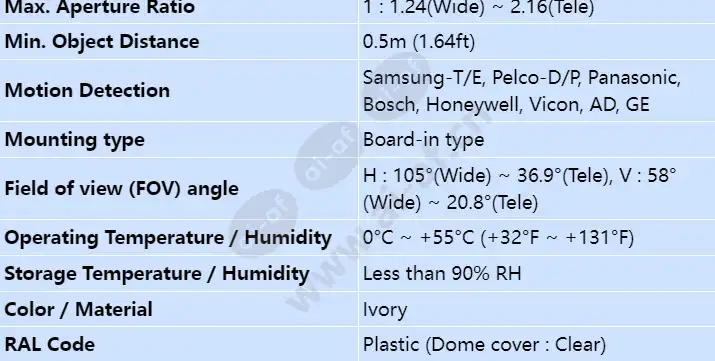

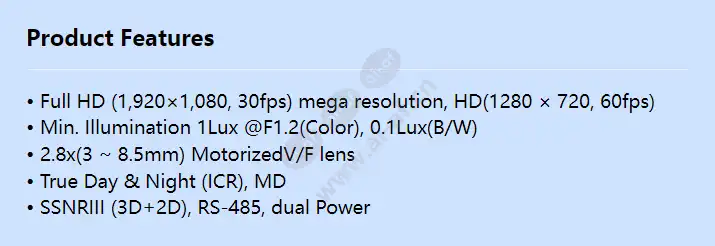

• Full HD (1,920×1,080, 30fps) mega resolution, HD(1280 × 720, 60fps) • Min. Illumination 1Lux @F1.2(Color), 0.1Lux(B/W) • 2.8x(3 ~ 8.5mm) MotorizedV/F lens • True Day & Night (ICR), MD • SSNRIII (3D+2D), RS-485, dual Power Imaging Device 1/3" Progressive scan CMOS NETD Progressive Min. Illumination 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up, 60x) Video Out SMPTE292M (HD-SDI), Monitoring CVBS Focal Length (Zoom Ratio) 3 ~ 8.5mm Max. Aperture Ratio 1 : 1.24(Wide) ~ 2.16(Tele) Angular Field of View H : 105°(Wide) ~ 36.9°(Tele), V : 58°(Wide) ~ 20.8°(Tele) Min. Object Distance 0.5m (1.64ft) Lens Type DC Auto Iris, Motorized V/F Mount Type Board-in type Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE Operating Temperature / Humidity 0°C ~ +55°C (+32°F ~ +131°F)
