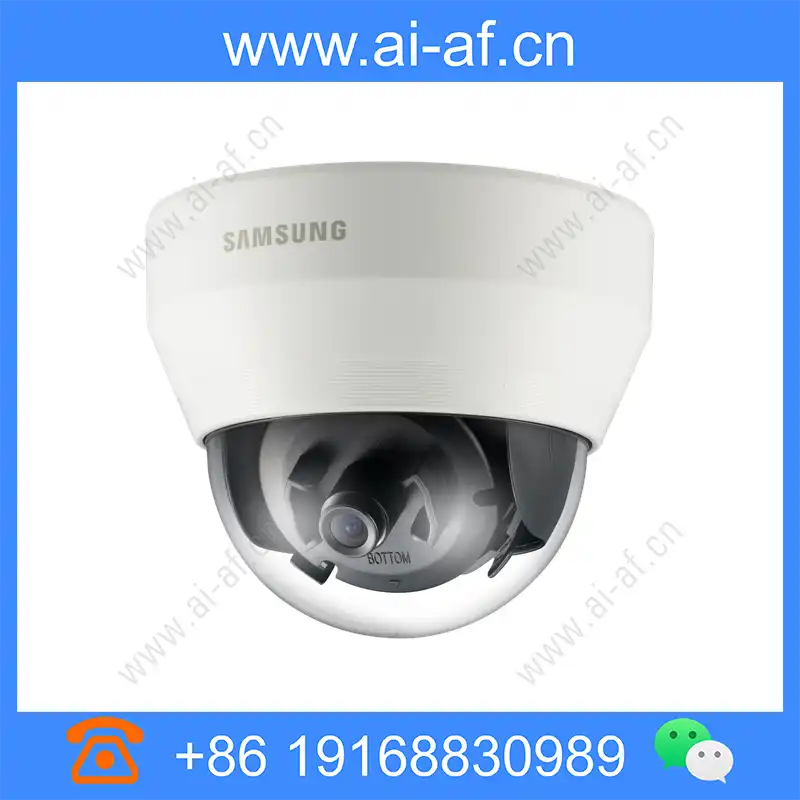

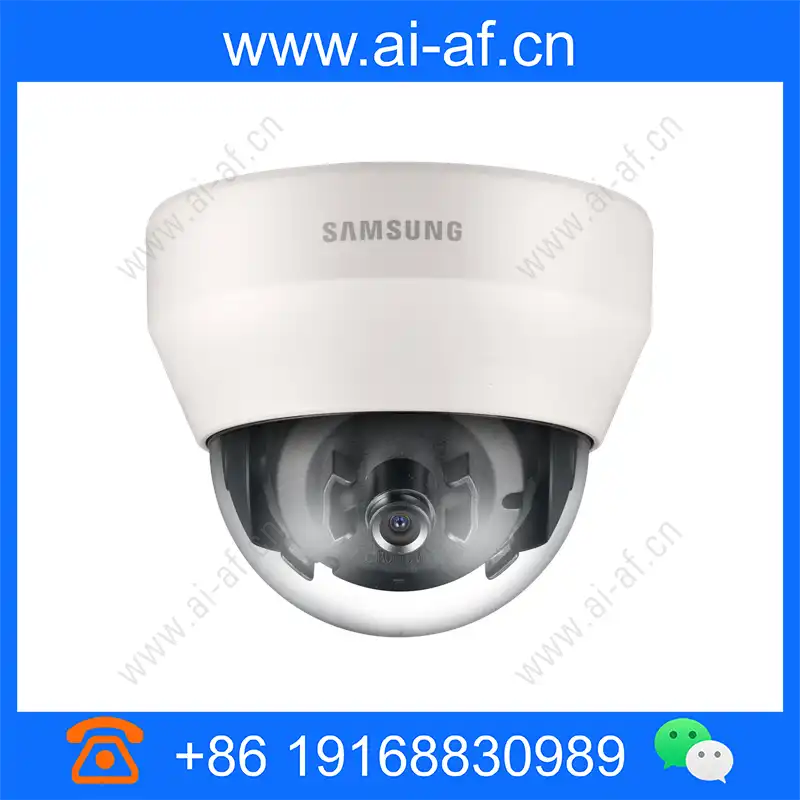

Samsung Hanwha SCD-6021 2MP HD-SDI Dome Camera

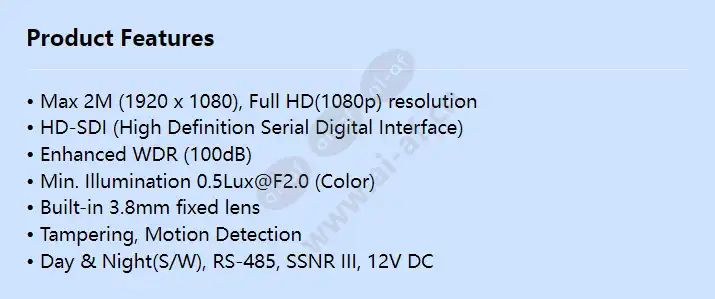

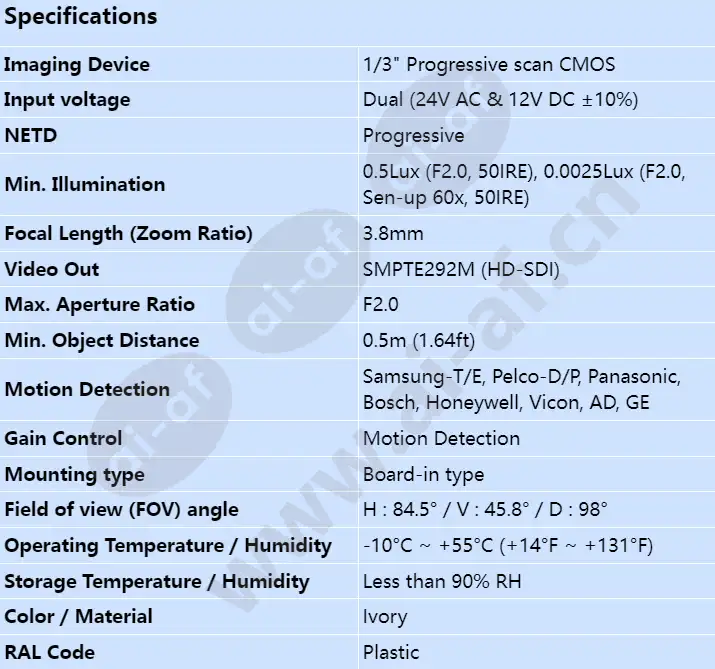

• Max 2M (1920 x 1080), Full HD(1080p) resolution • HD-SDI (High Definition Serial Digital Interface) • Enhanced WDR (100dB) • Min. Illumination 0.5Lux@F2.0 (Color) • Built-in 3.8mm fixed lens • Tampering, Motion Detection • Day & Night(S/W), RS-485, SSNR III, 12V DC Imaging Device 1/3" Progressive scan CMOS NETD Progressive Min. Illumination 0.5Lux (F2.0, 50IRE), 0.0025Lux (F2.0, Sen-up 60x, 50IRE) Video Out SMPTE292M (HD-SDI) Focal Length (Zoom Ratio) 3.8mm Max. Aperture Ratio F2.0 Angular Field of View H : 84.5° / V : 45.8° / D : 98° Min. Object Distance 0.5m (1.64ft) Mount Type Board-in type Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE Gain Control Motion Detection Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage
