Samsung Hanwha SCD-2081 650TVL High Resolution Varifocal Dome Camera

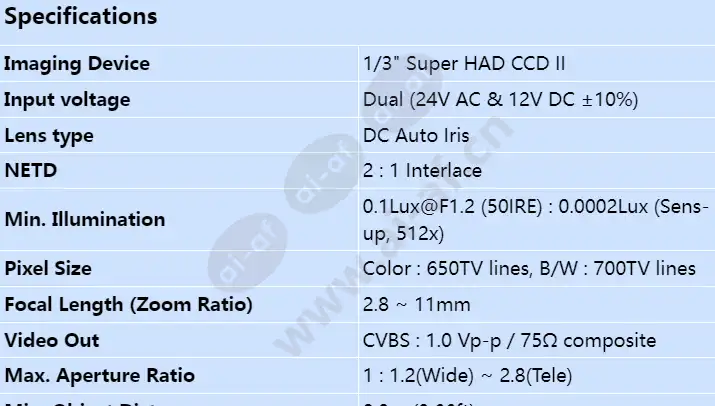

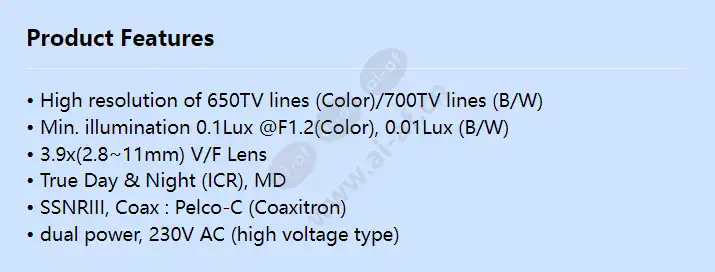

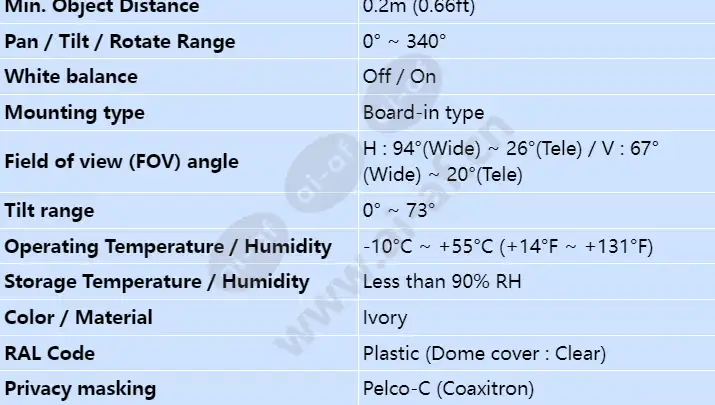

• High resolution of 650TV lines (Color)/700TV lines (B/W) • Min. illumination 0.1Lux @F1.2(Color), 0.01Lux (B/W) • 3.9x(2.8~11mm) V/F Lens • True Day & Night (ICR), MD • SSNRIII, Coax : Pelco-C (Coaxitron) • dual power, 230V AC (high voltage type) Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 650TV lines, B/W : 700TV lines Min. Illumination 0.1Lux@F1.2 (50IRE) : 0.0002Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.8 ~ 11mm Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele) Angular Field of View H : 94°(Wide) ~ 26°(Tele) / V : 67°(Wide) ~ 20°(Tele) Min. Object Distance 0.2m (0.66ft) Lens Type DC Auto Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 340° Tilt Range 0° ~ 73° Privacy Masking Pelco-C (Coaxitron)
