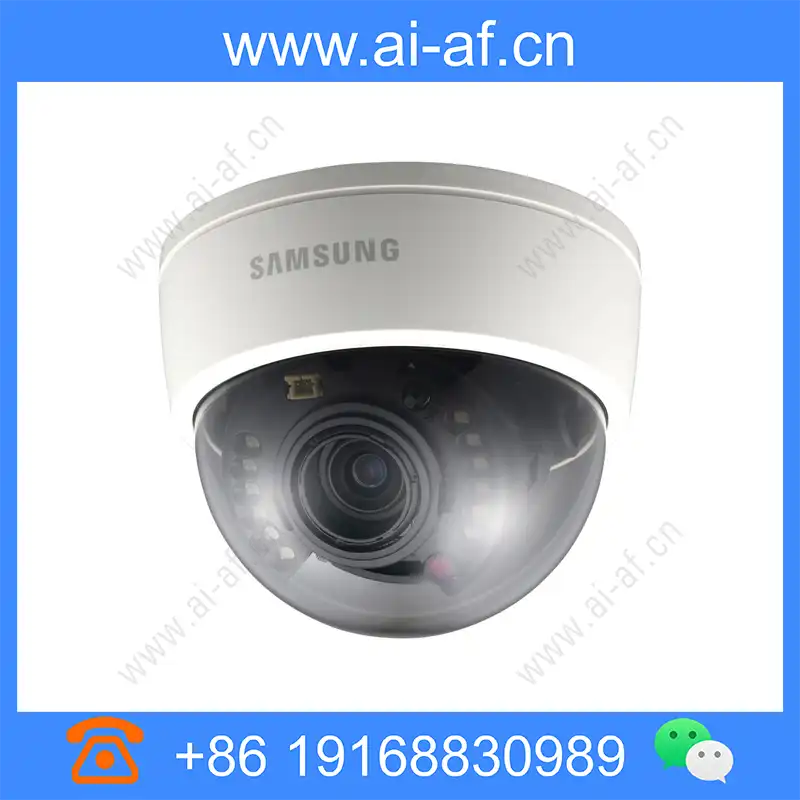

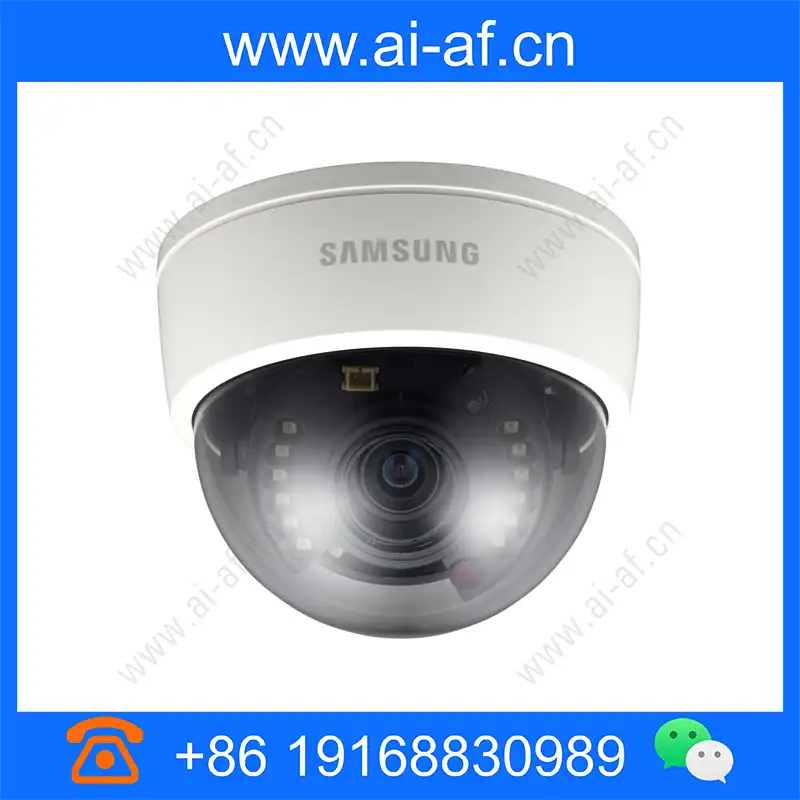

Samsung Hanwha SCD-2080R 1/3 inch High Resolution IR Dome Camera

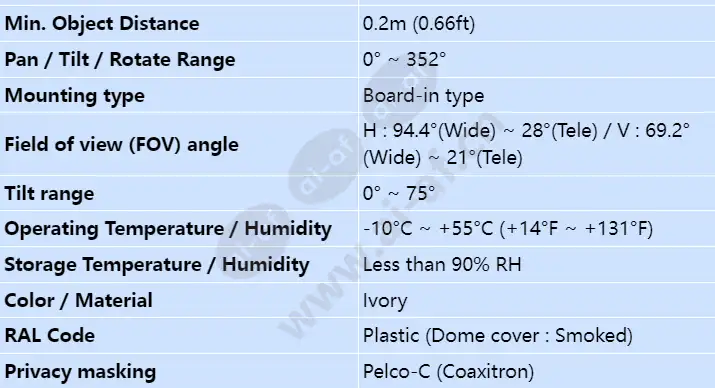

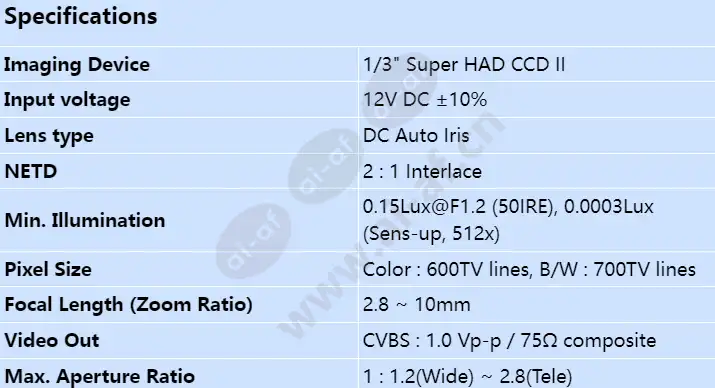

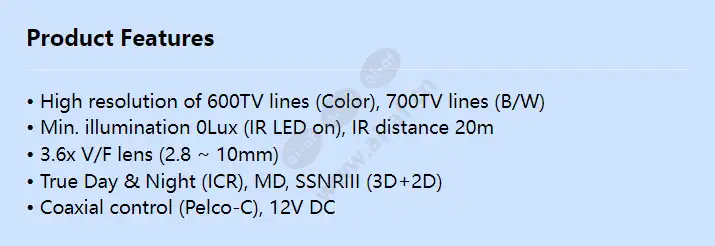

• High resolution of 600TV lines (Color), 700TV lines (B/W) • Min. illumination 0Lux (IR LED on), IR distance 20m • 3.6x V/F lens (2.8 ~ 10mm) • True Day & Night (ICR), MD, SSNRIII (3D+2D) • Coaxial control (Pelco-C), 12V DC Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.8 ~ 10mm Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele) Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) Min. Object Distance 0.2m (0.66ft) Lens Type DC Auto Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 352° Tilt Range 0° ~ 75° Privacy Masking Pelco-C (Coaxitron) Operating
