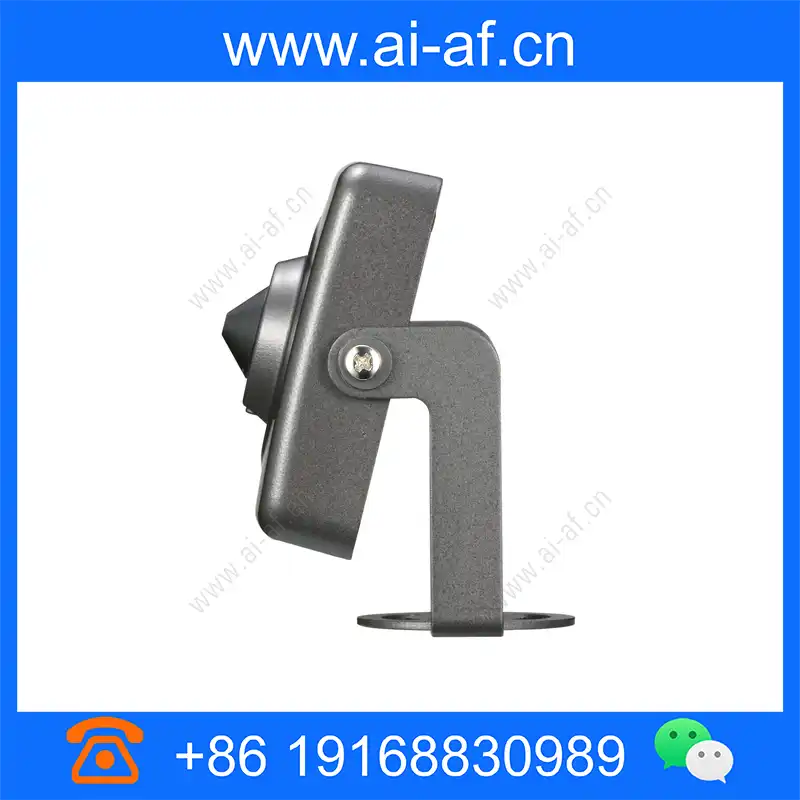

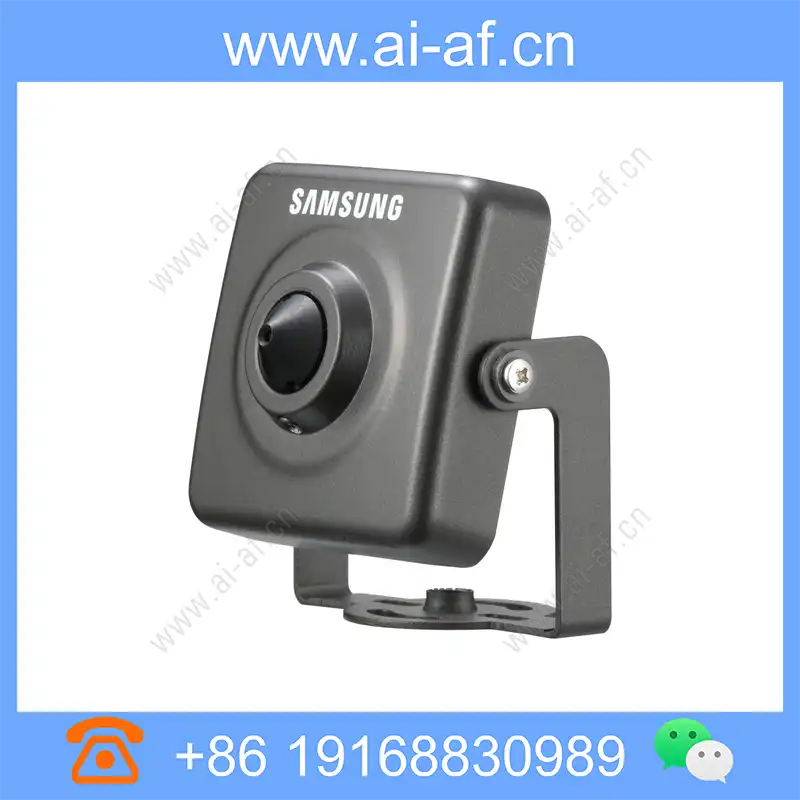

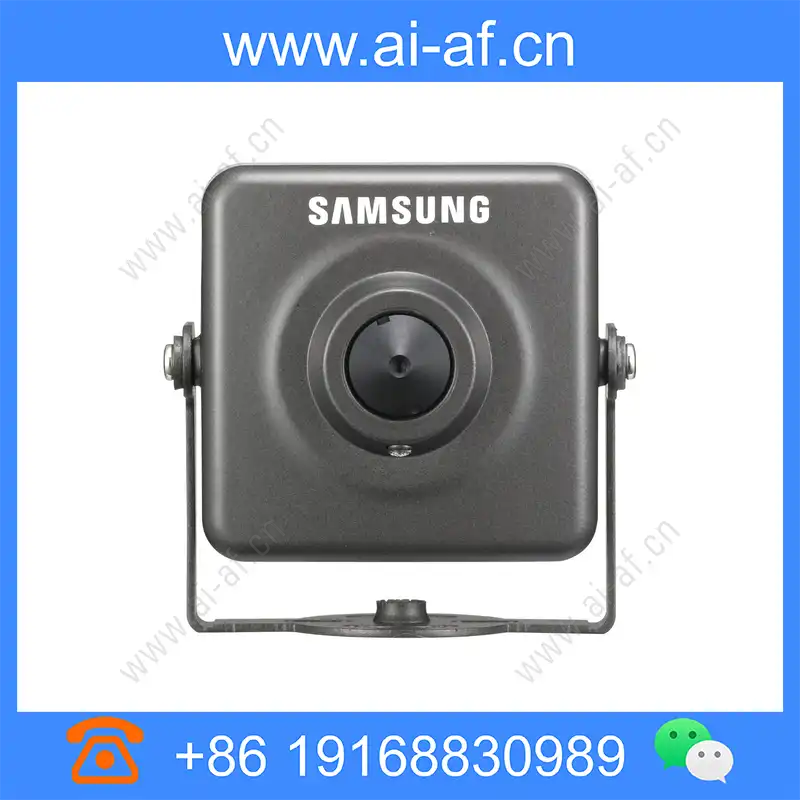

Samsung Hanwha SCB-3020 High Resolution WDR ATM Camera

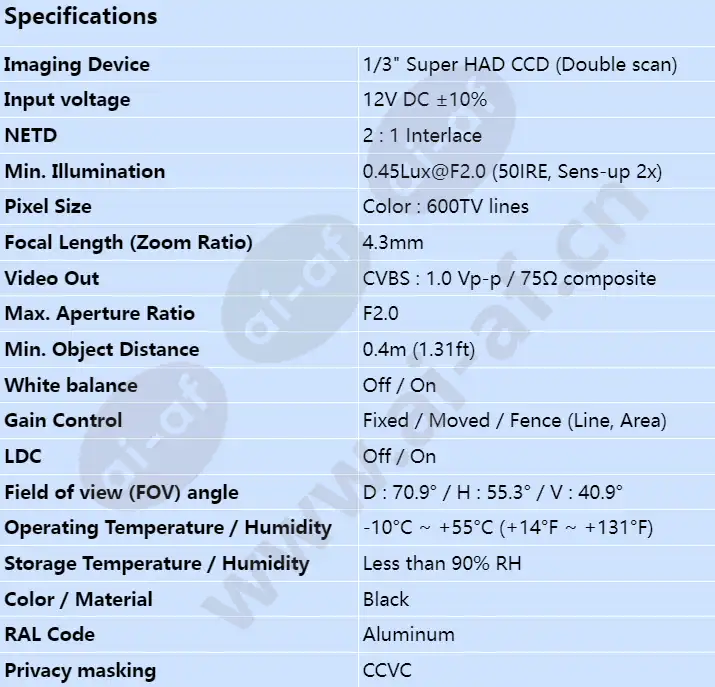

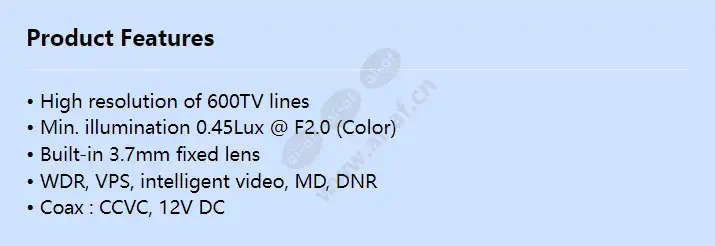

• High resolution of 600TV lines • Min. illumination 0.45Lux @ F2.0 (Color) • Built-in 3.7mm fixed lens • WDR, VPS, intelligent video, MD, DNR • Coax : CCVC, 12V DC Imaging Device 1/3" Super HAD CCD (Double scan) NETD 2 : 1 Interlace Pixel Size Color : 600TV lines Min. Illumination 0.45Lux@F2.0 (50IRE, Sens-up 2x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 4.3mm Max. Aperture Ratio F2.0 Angular Field of View D : 70.9° / H : 55.3° / V : 40.9° Min. Object Distance 0.4m (1.31ft) Privacy Masking CCVC Gain Control Fixed / Moved / Fence (Line, Area) White Balance Off / On LDC Off / On Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage 12V DC ±10% Color / Material Black RAL Code Aluminum
