Samsung Hanwha SCB-2010 High Resolution Small Box Camera

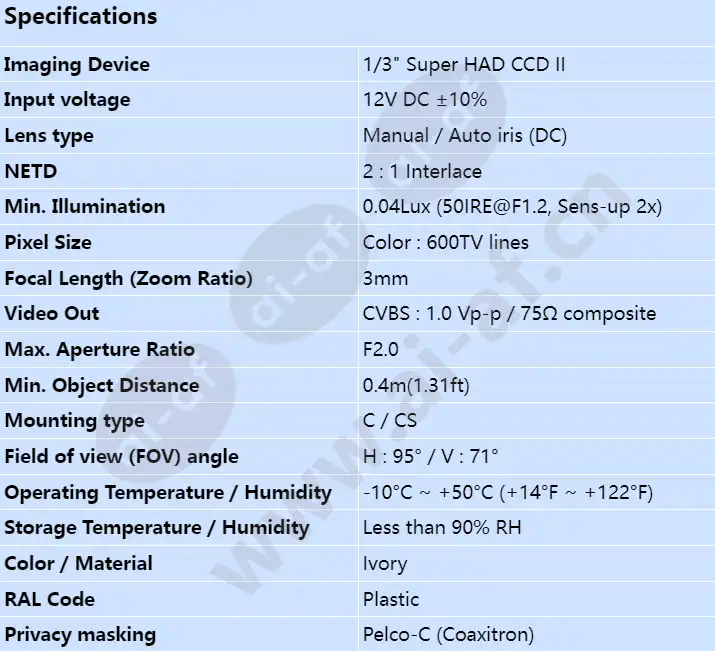

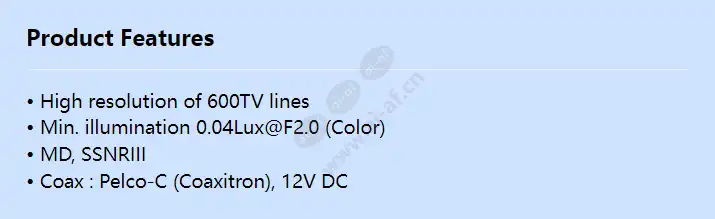

• High resolution of 600TV lines • Min. illumination 0.04Lux@F2.0 (Color) • MD, SSNRIII • Coax : Pelco-C (Coaxitron), 12V DC Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines Min. Illumination 0.04Lux (50IRE@F1.2, Sens-up 2x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3mm Max. Aperture Ratio F2.0 Angular Field of View H : 95° / V : 71° Min. Object Distance 0.4m(1.31ft) Lens Type Manual / Auto iris (DC) Mount Type C / CS Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) Storage Temperature / Humidity Less than 90% RH Input Voltage 12V DC ±10% Color / Material Ivory RAL Code Plastic
