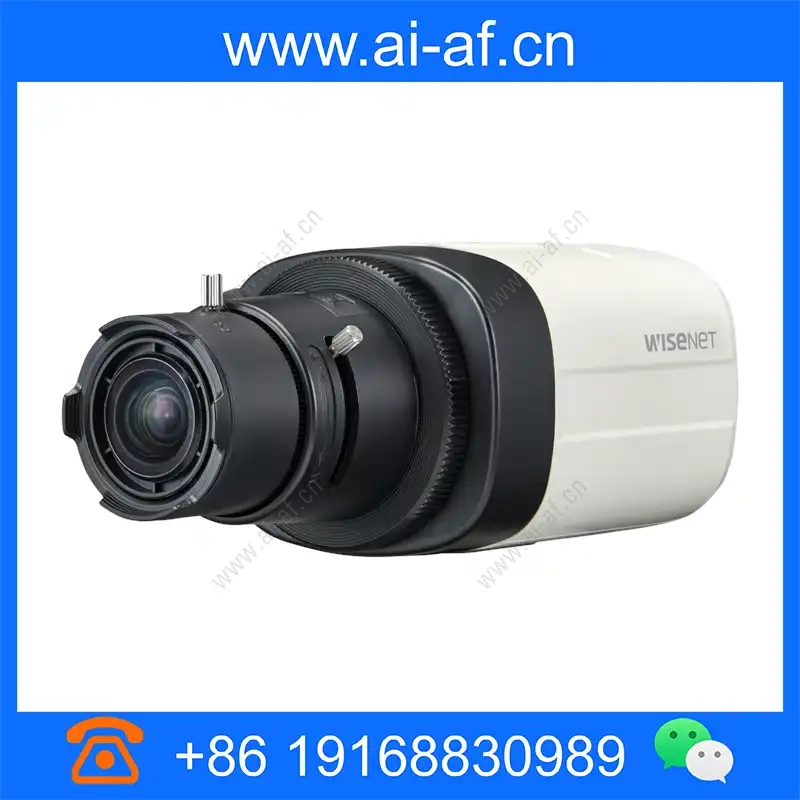

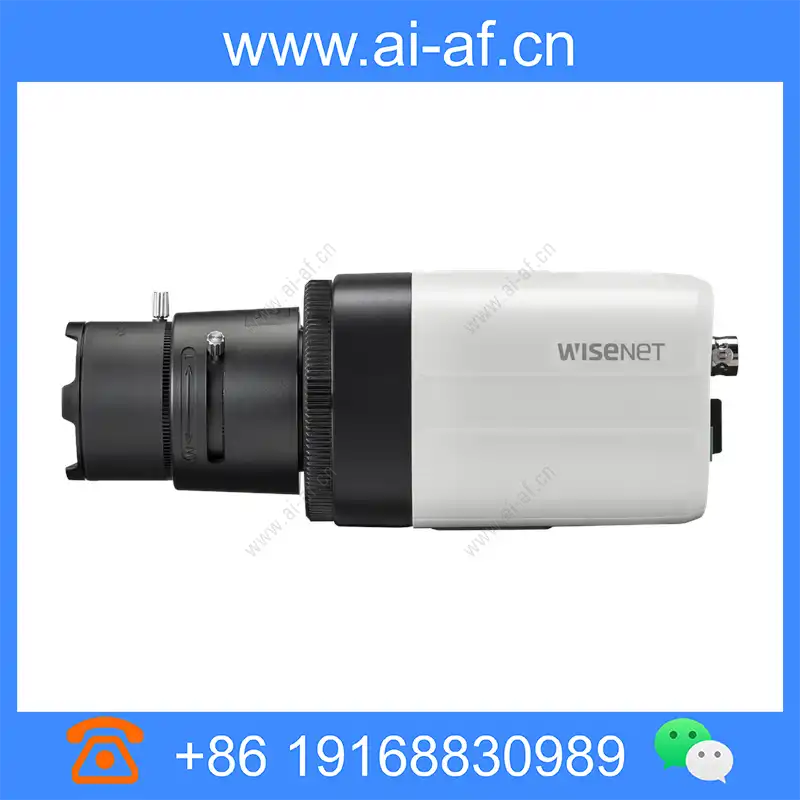

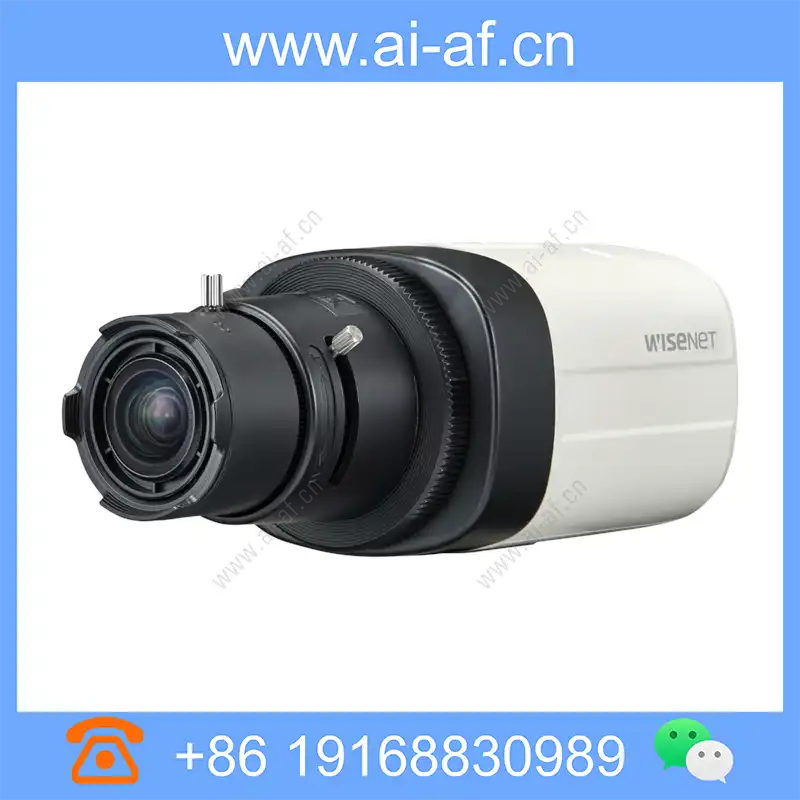

Samsung Hanwha HCB-7000A QHD 4MP Analog Box Camera

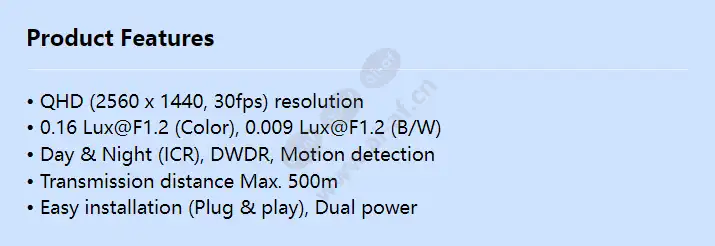

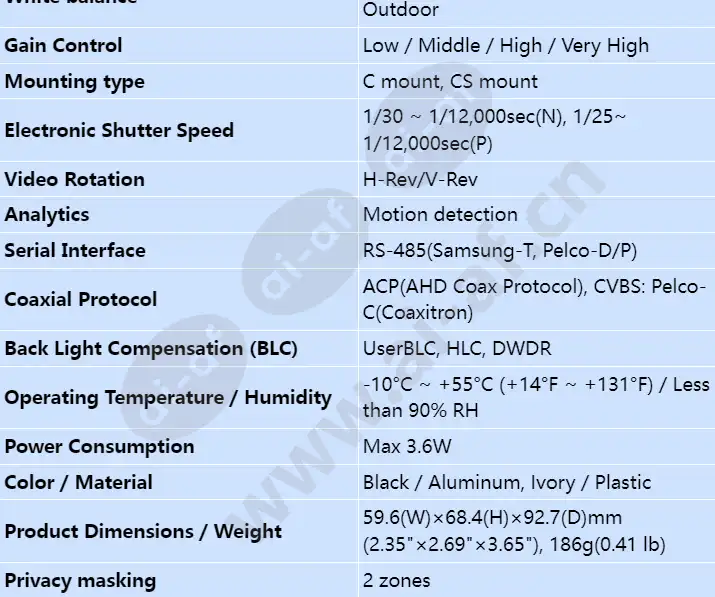

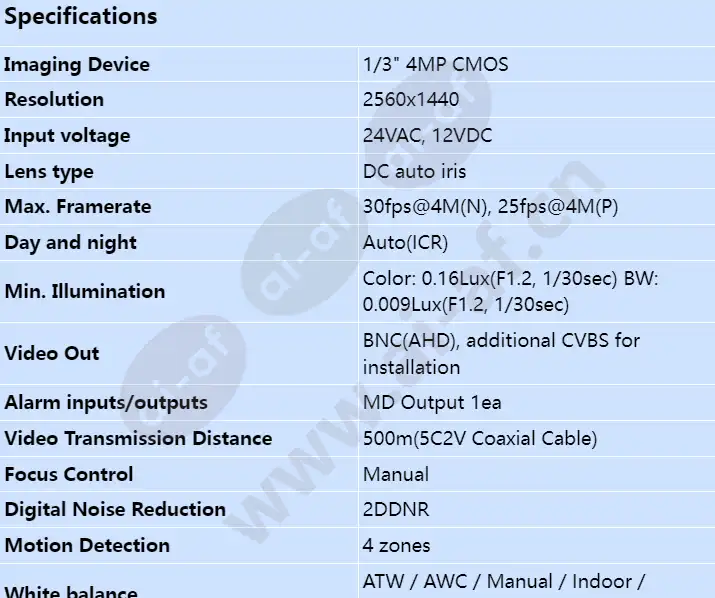

• QHD (2560 x 1440, 30fps) resolution • 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W) • Day & Night (ICR), DWDR, Motion detection • Transmission distance Max. 500m • Easy installation (Plug & play), Dual power Imaging Device 1/3" 4MP CMOS Resolution 2560x1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.16Lux(F1.2, 1/30sec) BW: 0.009Lux(F1.2, 1/30sec) Video Out BNC(AHD), additional CVBS for installation Video Transmission Distance 500m(5C2V Coaxial Cable) Focus Control Manual Lens Type DC auto iris Mount Type C mount, CS mount Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor
