Samsung Hanwha HCB-6001 1080p Analog HD camera

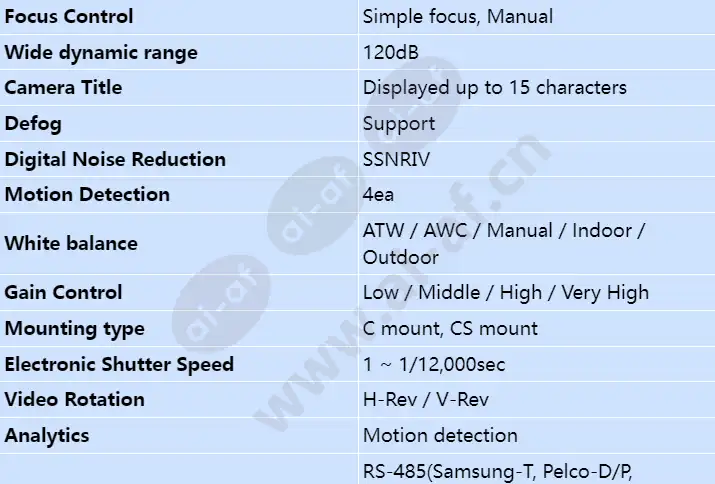

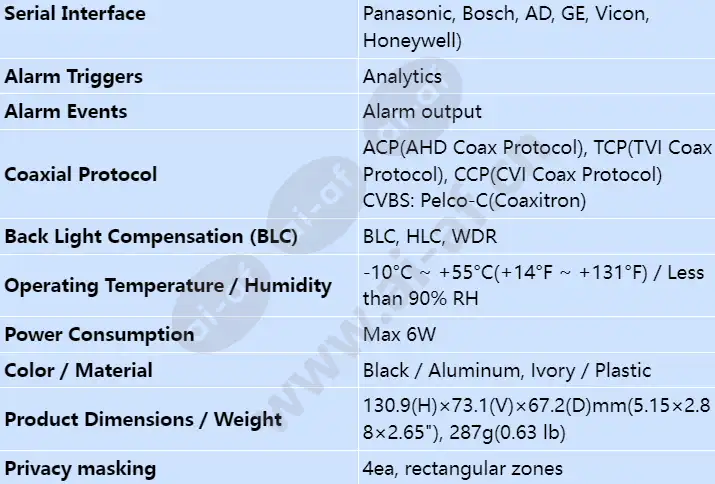

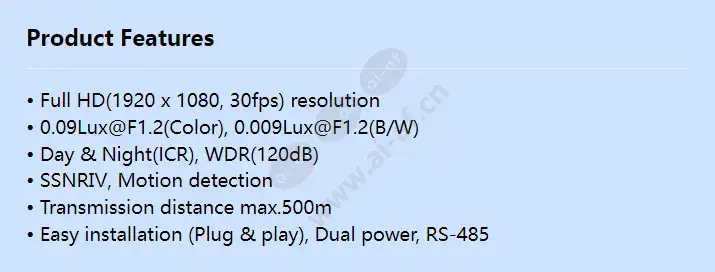

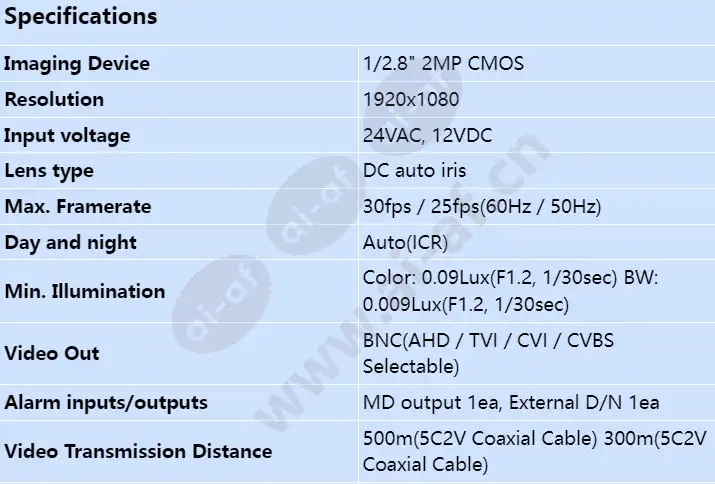

• Full HD(1920 x 1080, 30fps) resolution • 0.09Lux@F1.2(Color), 0.009Lux@F1.2(B/W) • Day & Night(ICR), WDR(120dB) • SSNRⅣ, Motion detection • Transmission distance max.500m • Easy installation (Plug & play), Dual power, RS-485 Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080 Max. Framerate 30fps / 25fps(60Hz / 50Hz) Min. Illumination Color: 0.09Lux(F1.2, 1/30sec) BW: 0.009Lux(F1.2, 1/30sec) Video Out BNC(AHD / TVI / CVI / CVBS Selectable) Video Transmission Distance 500m(5C2V Coaxial Cable) 300m(5C2V Coaxial Cable) Focus Control Simple focus, Manual Lens Type DC auto iris Mount Type C mount, CS mount Camera Title Displayed up to 15 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅣ Defog Support Motion
