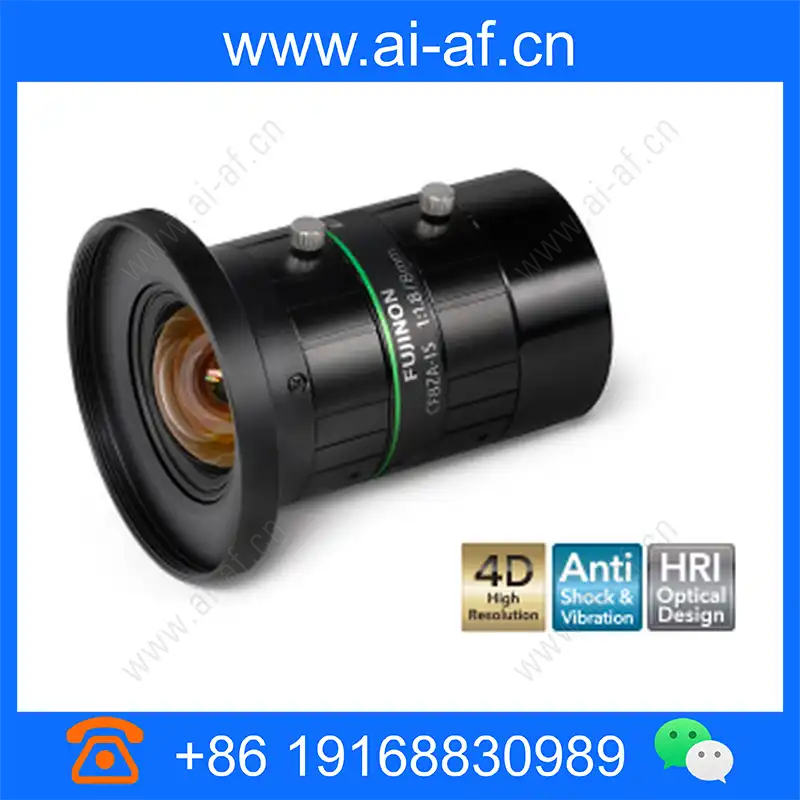

FUJINON CF8ZA-1S Machine Vision Lens 8mm F1.8-F16 C-mount

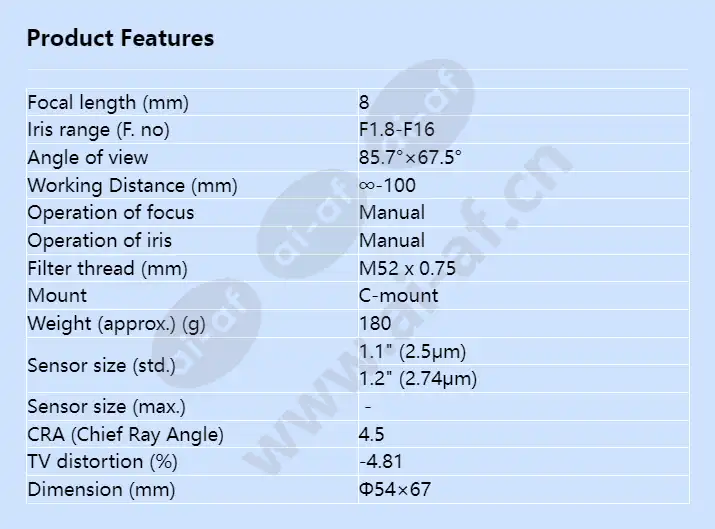

Focal length (mm) 8 Iris range (F. no) F1.8-F16 Angle of view 85.7°×67.5° Working Distance (mm) ∞‐100 Operation of focus Manual Operation of iris Manual Filter thread (mm) M52 x 0.75 Mount C-mount Weight (approx.) (g) 180 Sensor size (std.) 1.1" (2.5μm) 1.2" (2.74μm) Sensor size (max.) － CRA (Chief Ray Angle) 4.5 TV distortion (%) -4.81 Dimension (mm) Φ54×67
