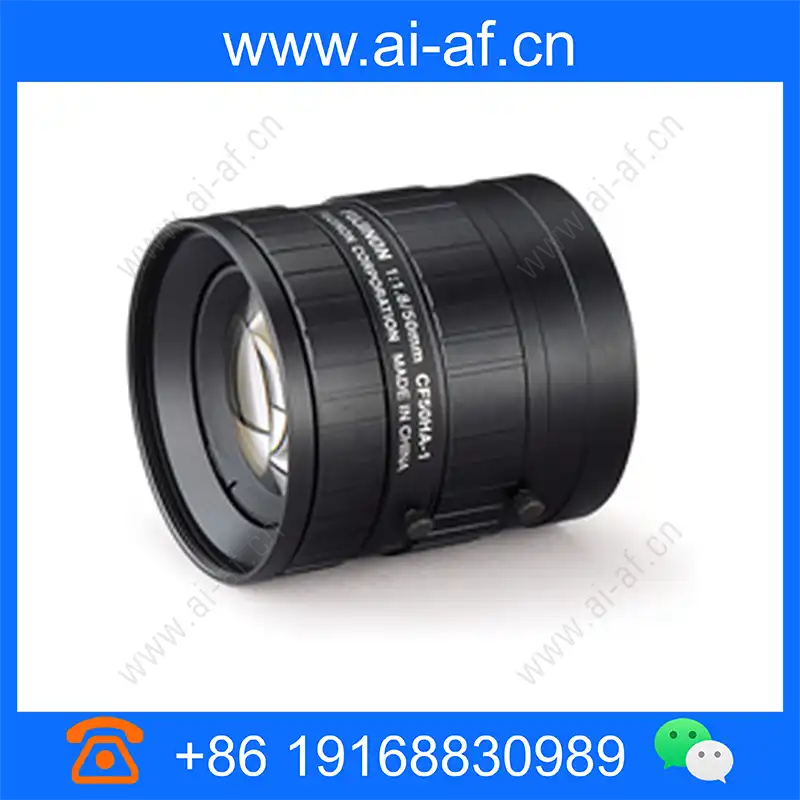

FUJINON CF50HA-1 Machine Vision Lens 50mm F1.8-F22 C-mount

Focal length (mm) 50 Iris range (F. no) F1.8-F22 Angle of view 14.1°x 10.6° (1") Working Distance (mm) ∞-400 Operation of focus Manual Operation of iris Manual Filter thread (mm) M49 x 0.75 Mount C-mount Weight (approx.) (g) 235 Sensor size (std.) 1" (9.1μm) Sensor size (max.) 1" (9.1μm) TV distortion (%) 0.20 Dimension (mm) Φ51×55.5 *1 From front of lens barrel. *2 Sensor size (std.): Ideal size to maximize the target resolution. *3 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
