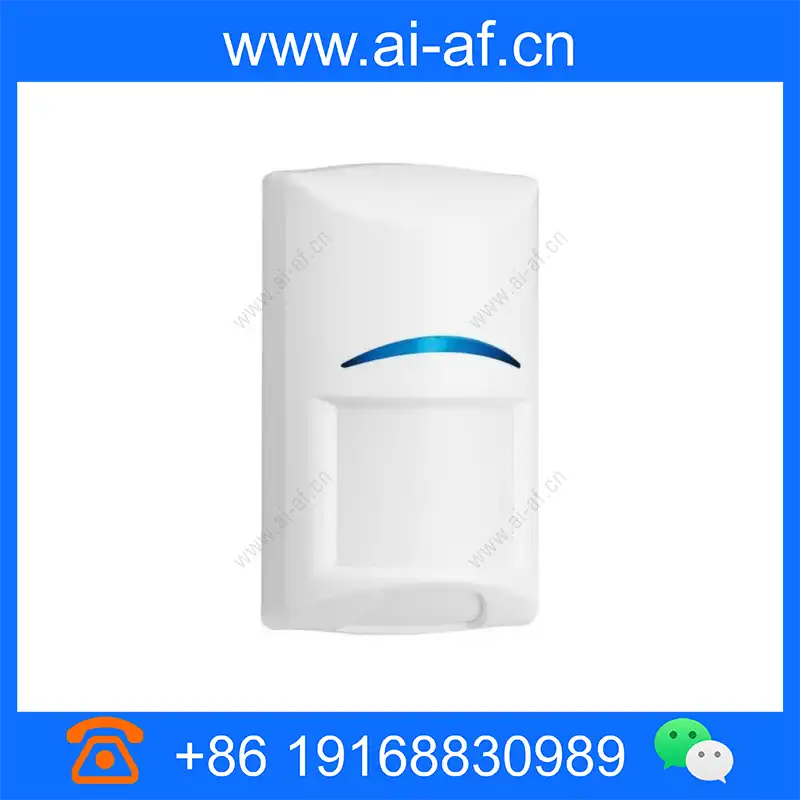

Bosch ISC-BDL2-WP6G Blue Line Gen2 TriTech Motion detector pet friendly 20ft (6m) F.01U.364.855

Brand: Bosch
Model: ISC-BDL2-WP6G
Dimensions: 105mm x 61mm x 44mm

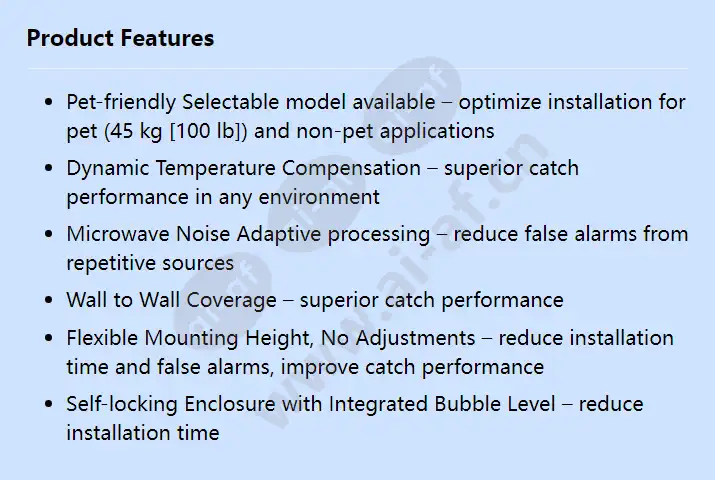

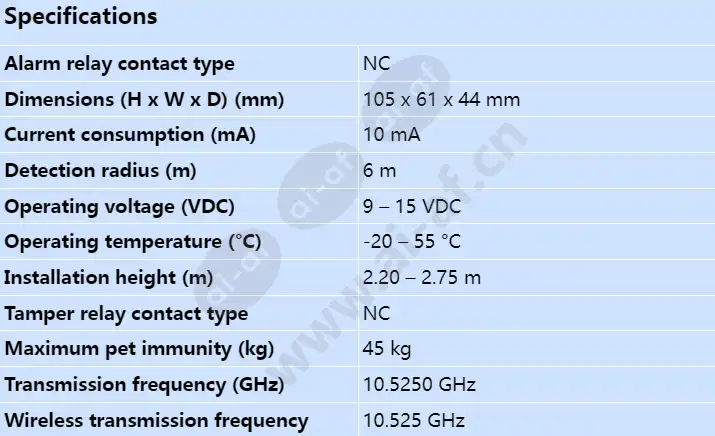

Pet-friendly Selectable model available – optimize installation for pet (45 kg [100 lb]) and non-pet applications Dynamic Temperature Compensation – superior catch performance in any environment Microwave Noise Adaptive processing – reduce false alarms from repetitive sources Wall to Wall Coverage – superior catch performance Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance Self-locking Enclosure with Integrated Bubble Level – reduce installation time Alarm relay contact type NC Current consumption (mA) 10 mA Detection radius (m) 6 m Dimensions (H x W x D) (mm) 105 x 61 x 44 mm Installation height (m) 2.20 – 2.75 m Maximum pet immunity (kg) 45 kg Operating temperature (°C) -20 – 55 °C Operating voltage (VDC) 9 – 15 VDC Tamper
