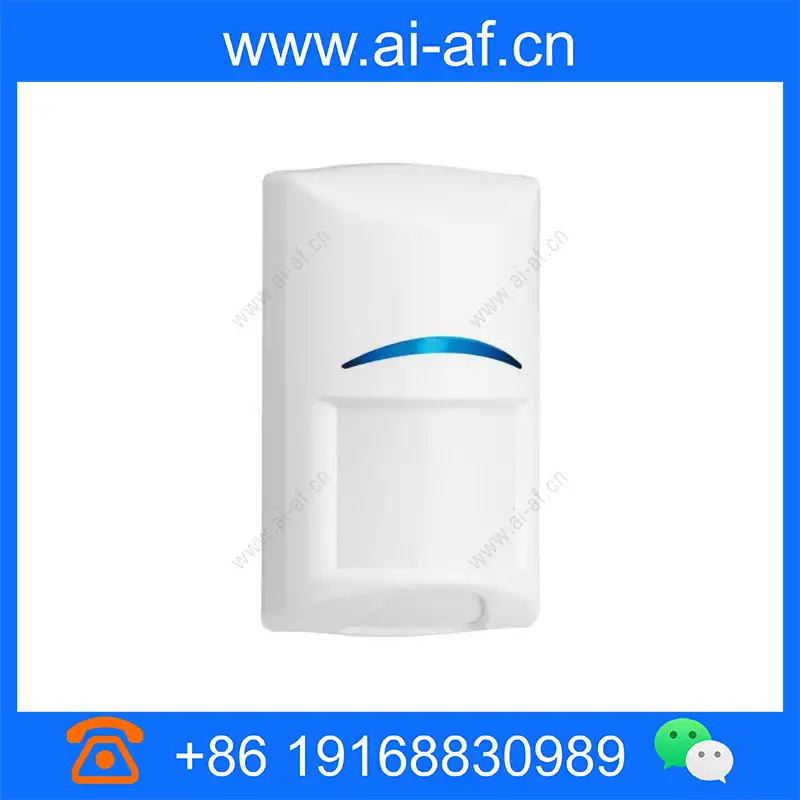

Bosch ISC-BDL2-WP12G-CHI Blue Line Gen2 TriTech Motion detector pet friendly 40ft (12m) F.01U.134.145

Brand: Bosch
Model: ISC-BDL2-WP12G-CHI
Dimensions: 105mm x 61mm x 44mm

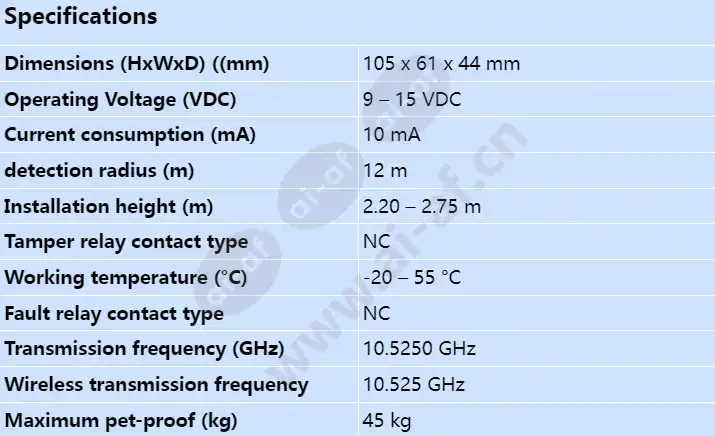

Optional pet-proof model available-optimized installation, suitable for pets (45 kg (100 lb)) and non-pet applications Dynamic Temperature Compensation-Provides excellent capture performance in any environment Microwave noise adaptive processing-reduce false alarms caused by repeated alarm sources Wall-Wall Covering-Excellent Capture Performance Flexible installation height, no need to adjust-reduce installation time and false alarms, improve capture performance Self-locking housing and built-in bubble level-reduce installation time Transmission frequency (GHz) 10.5250 GHz Installation height (m) 2.20 – 2.75 m Dimensions (HxWxD) ((mm) 105 x 61 x 44 mm Working temperature (°C) -20 – 55 °C Operating Voltage (VDC) 9 – 15 VDC detection radius (m) 12 m Fault relay contact type NC Wireless
