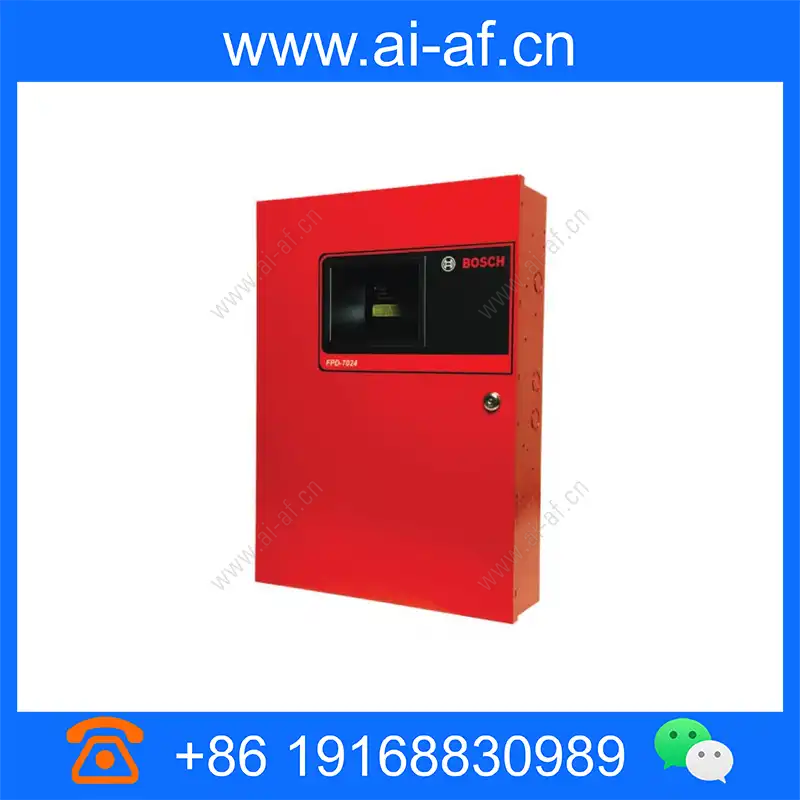

Bosch FPD-7024 FPD-7024 Fire alarm control panels Fire panel 4-zone 24V red enclosure F.01U.008.460

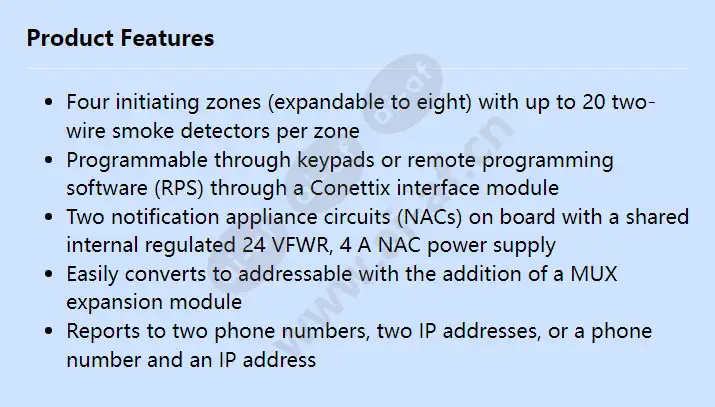

Four initiating zones (expandable to eight) with up to 20 two-wire smoke detectors per zone Programmable through keypads or remote programming software (RPS) through a Conettix interface module Two notification appliance circuits (NACs) on board with a shared internal regulated 24 VFWR, 4 A NAC power supply Easily converts to addressable with the addition of a MUX expansion module Reports to two phone numbers, two IP addresses, or a phone number and an IP address Input voltage (VDC) 20.40 – 28.20 VDC Operating temperature (°C) 0 – 49 °C
