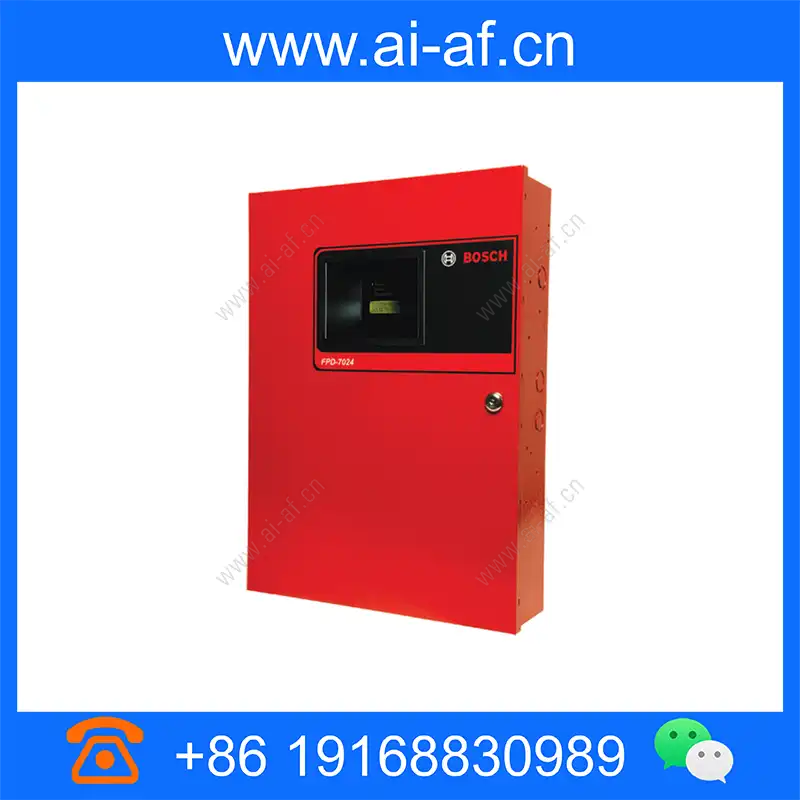

Bosch FPD-7024-LT FPD-7024 Fire alarm control panels Fire panel no transformer 4-zone 24V Commercial F.01U.029.947

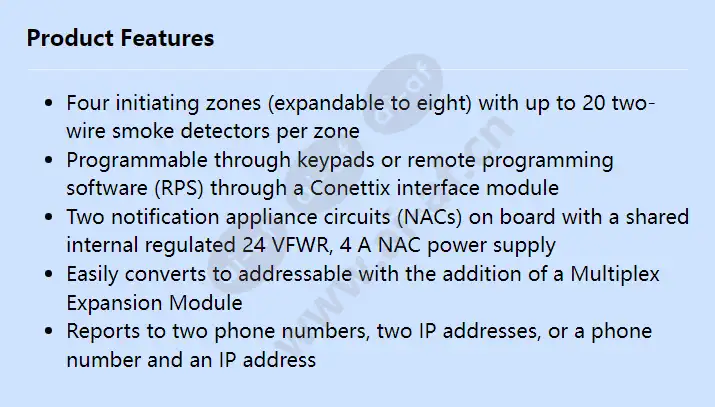

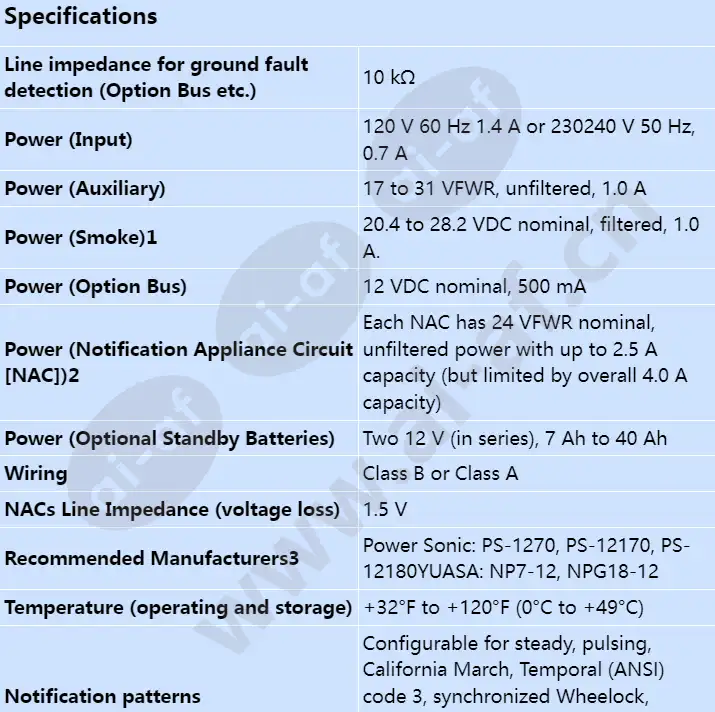

Four initiating zones (expandable to eight) with up to 20 two-wire smoke detectors per zone Programmable through keypads or remote programming software (RPS) through a Conettix interface module Two notification appliance circuits (NACs) on board with a shared internal regulated 24 VFWR, 4 A NAC power supply Easily converts to addressable with the addition of a Multiplex Expansion Module Reports to two phone numbers, two IP addresses, or a phone number and an IP address Line impedance for ground fault detection (Option Bus, conventional input, NAC, secondary power circuit, MUX Bus, AUX power, SMK power) 10 kΩ Power (Input) 120 V 60 Hz 1.4 A or 230\240 V 50 Hz, 0.7 A Power (Auxiliary) 17 to 31 VFWR, unfiltered, 1.0 A Power (Smoke)1 20.4 to 28.2 VDC nominal, filtered, 1.0 A. Power (Option
