Bosch FLM-325-CZM4 Conventional zone module for FPA-1000 Commercial F.01U.133.067

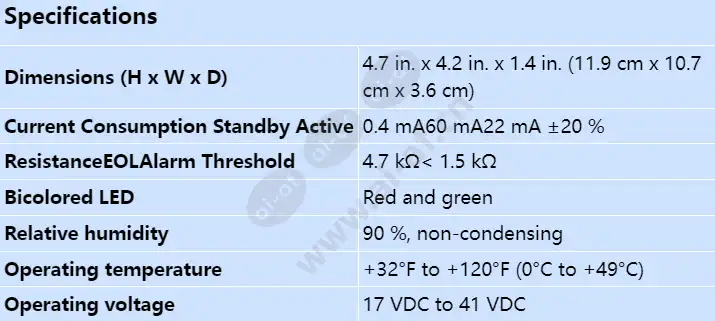

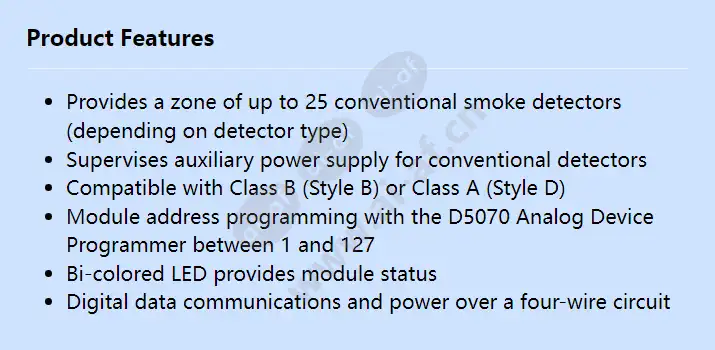

Provides a zone of up to 25 conventional smoke detectors (depending on detector type) Supervises auxiliary power supply for conventional detectors Compatible with Class B (Style B) or Class A (Style D) Module address programming with the D5070 Analog Device Programmer between 1 and 127 Bi-colored LED provides module status Digital data communications and power over a four-wire circuit Operating Voltage 17 VDC to 41 VDC Current ConsumptionStandbyActive (from auxiliary power supplyData transmission 0.4 mA60 mA22 mA ±20 % ResistanceEOLAlarm Threshold 4.7 kΩ< 1.5 kΩ Dimensions (H x W x D) 4.7 in. x 4.2 in. x 1.4 in. (11.9 cm x 10.7 cm x 3.6 cm) Bicolored LED Red and green Operating Temperature +32°F to +120°F (0°C to +49°C) Relative Humidity 90 %, non-condensing
