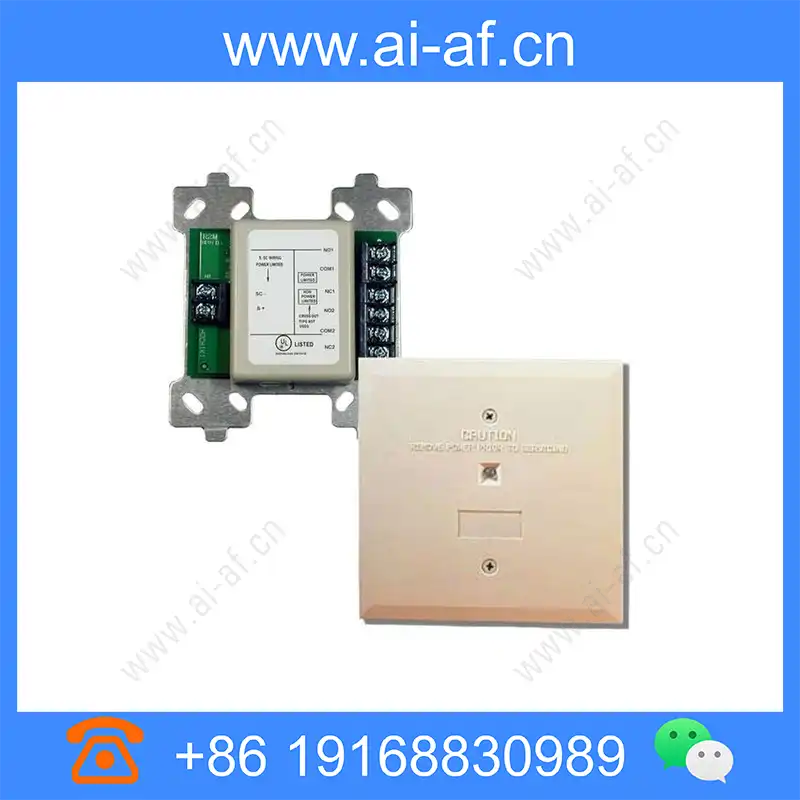

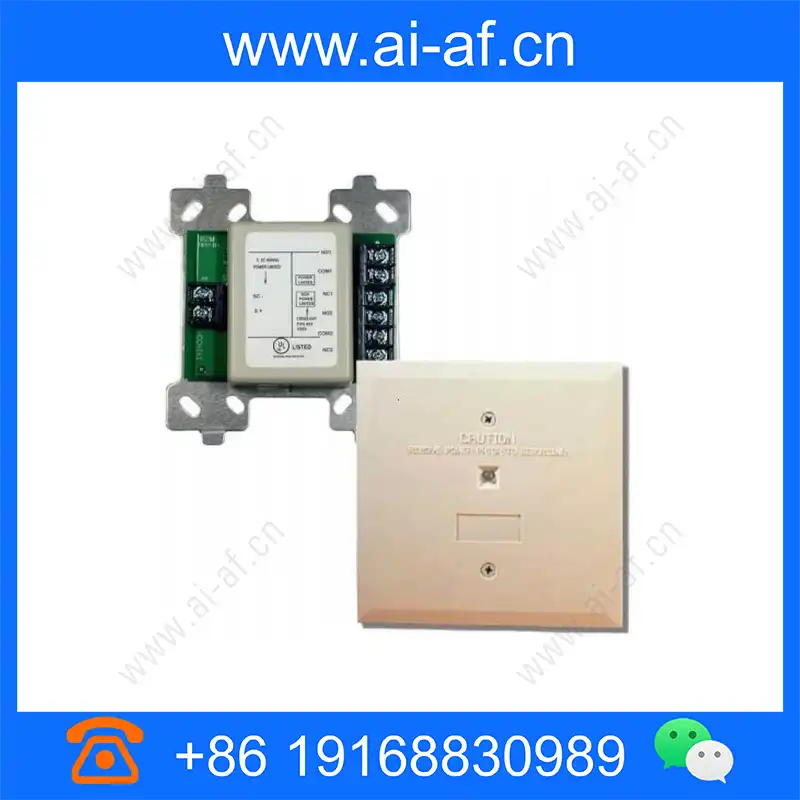

Bosch FLM-325-2R4-2AI FLM-325-2R4-A Dual Relay Modules Family Datasheet Dual relay module with isolator 2A Commercial F.01U.168.099

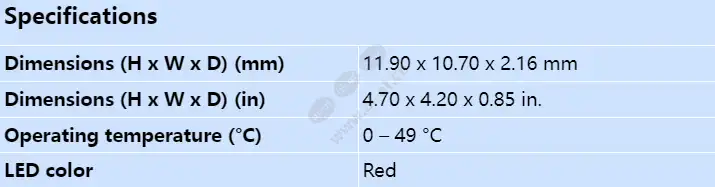

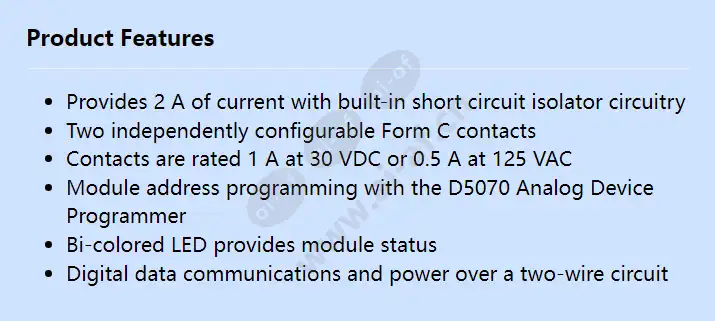

Provides 2 A of current with built-in short circuit isolator circuitry Two independently configurable Form C contacts Contacts are rated 1 A at 30 VDC or 0.5 A at 125 VAC Module address programming with the D5070 Analog Device Programmer Bi-colored LED provides module status Digital data communications and power over a two-wire circuit Dimension (H x W x D) (in) 4.70 x 4.20 x 0.85 in. Dimension (H x W x D) (mm) 11.90 x 10.70 x 2.16 mm LED color Red Operating temperature (°C) 0 – 49 °C
