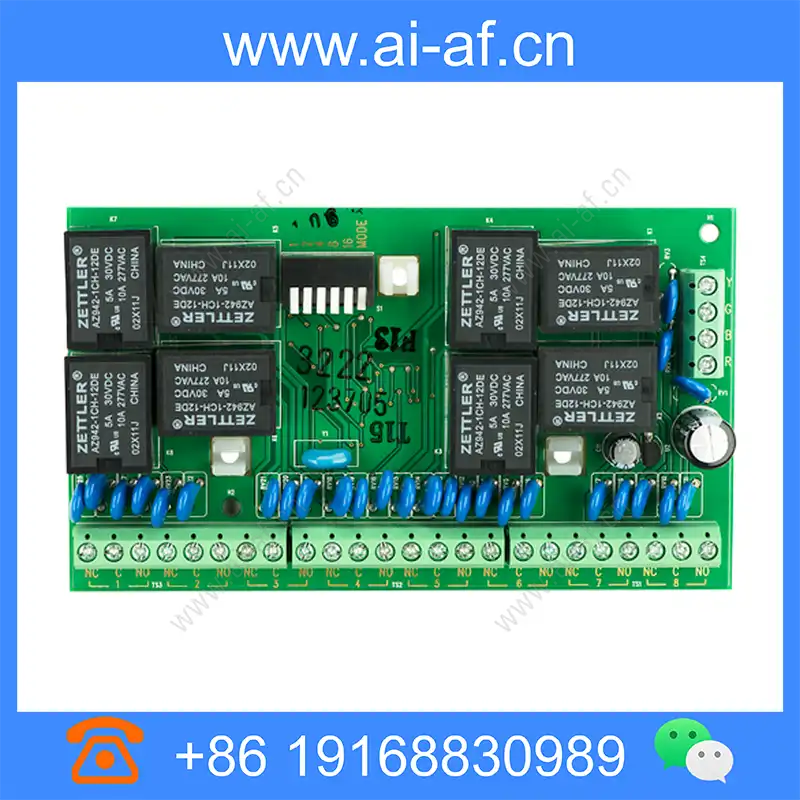

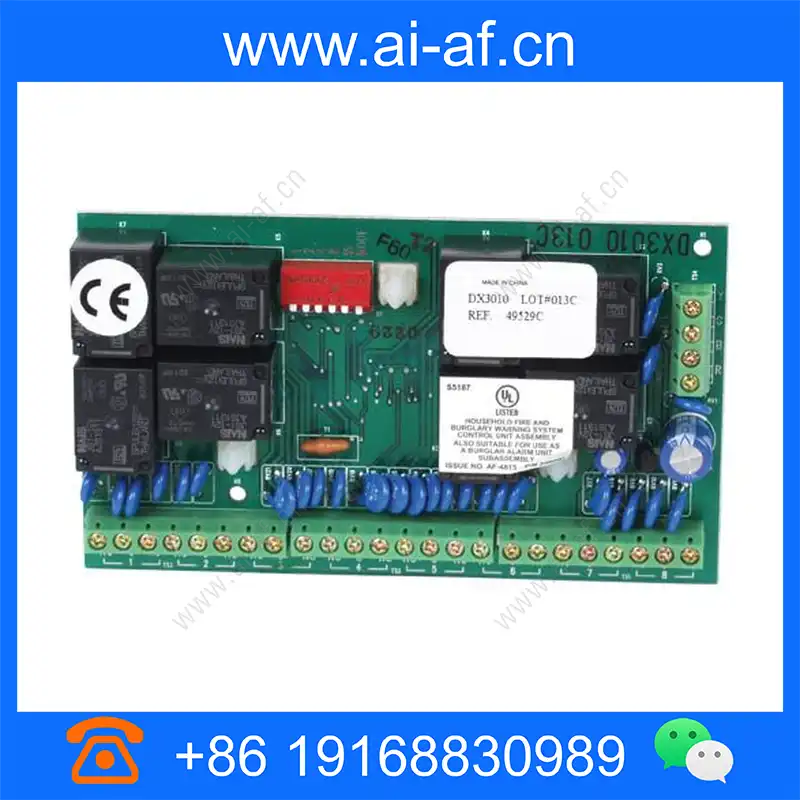

Bosch DX3010 Output expander 8-relay 4.998.800.183

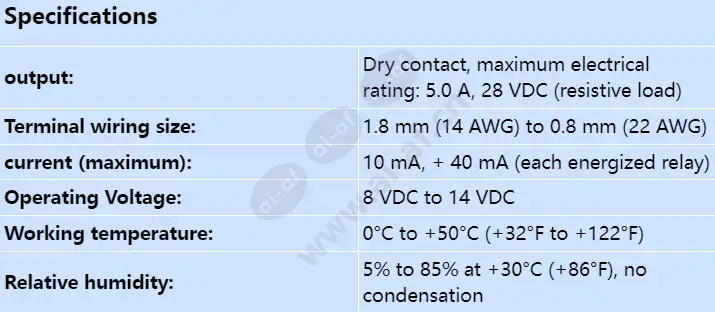

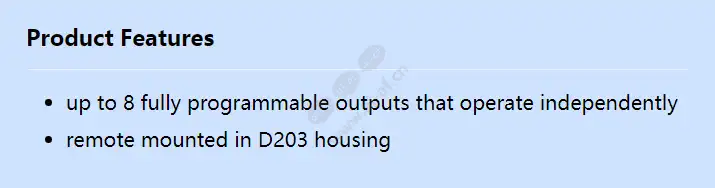

up to 8 fully programmable outputs that operate independently remote mounted in D203 housing output: Dry contact, maximum electrical rating: 5.0 A, 28 VDC (resistive load) Working temperature: 0°C to +50°C (+32°F to +122°F) Relative Humidity: 5% to 85% at +30°C (+86°F), no condensation Terminal wiring size: 1.8 mm (14 AWG) to 0.8 mm (22 AWG) current (maximum): 10 mA, + 40 mA (each energized relay) Operating Voltage: 8 VDC to 14 VDC
